Bamboo Pulp Auto Tableware Making Machine With Robot Arms And Stacking Robot
Bamboo Pulp Auto Tableware Making Machine With Robot Arms And Stacking Robot
Specifications
Brand Name :
ChuangYi
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20sets
Delivery Time :
60-90days
Packaging Details :
Export Standar Packing
Automation :
Fully automatic
Raw material :
bagasse/bamboo/wood/straw
Mold size :
1100*800mm
Production Capacity :
1.2 tons/set/day
Thermal power :
120000kcal/hr
Heating by electricity :
141kw
Forming Method :
Vacuum Suction
Control Method :
PLC and Touch Screen
Description

Fully automatic pulp tableware production line with Horizontal walking robot arm

1.Forming, hot pressing, trimming and stacking are fully automatic operated.
2. The vacuum system is used for product forming and transferring.
3. High-pressure water system is used for cleaning the molds and the rough edges of products.

Technical Description
Machine Model
Mold Platen Size 1100x800mm
Production Capacity 30-40kg/hr/set
Machine Automation Automatic with Double Horizontal Walking Robot Arm​
Workshop Requirement ~ 800㎡
Operator Required 5~8 people/shift
Feeding raw material Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp)
Forming Method Vacuum forming
Drying Method Dry in mold, thermal forming
Machine Function Forming, drying, hot press all in one machine
Control PLC+ Touch screen
Machine Material All parts in contact with water is SS304 Stainless Steel

Features:

1. Able to finish mesh replacement within as short as 5 mins;
2. Screen frame transfer method is adopted,which reduces the consumption of vacuum and compressed air; less hole blocking chances and time for mold maintenance extended by 1-2 months,black spots over the products avoided;
3. Fully automatic operation on forming, hot pressing, trimming, testing and stacking, reducing labor cost.

Production Application:


-Disposable Tableware
-Paper Plates

-Paper Bowls
-Fast Food Take-away Box and Lid
-Ready Meal Packaging Trays
-Supermarket Fresh Trays
-Branded Food Packaging

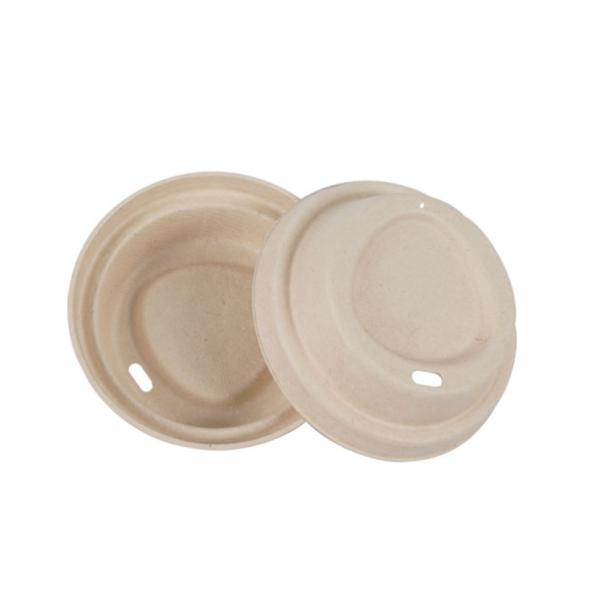

-Cup and Lid
-Cup Holder and Carriers

Production Working Process:

Bamboo Pulp Auto Tableware Making Machine With Robot Arms And Stacking Robot

Applications:

Bamboo Pulp Auto Tableware Making Machine With Robot Arms And Stacking RobotBamboo Pulp Auto Tableware Making Machine With Robot Arms And Stacking Robot
