Nature To Nature Pulp Molded Smart Tableware Machine With Double Robot Arms
Nature To Nature Pulp Molded Smart Tableware Machine With Double Robot Arms
Specifications
Brand Name :
ChuangYi
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20sets
Delivery Time :
60-90days
Packaging Details :
Export Standar Packing
Automation :
Fully automatic
Raw material :
bagasse/bamboo/wood/straw
Mold size :
1300*1100 or 1100*800mm
Production Capacity :
1.5 or 1.2 tons/set/day
Thermal power :
160000kcal/hr or 120000kcal/hr
Heating by electricity :
171kw or 141kw
Forming Method :
Vacuum Suction
Control Method :
PLC and Touch Screen
Description

Nature To Nature Pulp Molded Smart Tableware Machine With Double Robot Arms ​

Molded pulp is often considered a sustainable tableware material, unlike plastic material, molded pulp is produced from natural fiber, which can be recycled again after its life-cycle of 3-4 months degradable by landfill.

By using virgin pulp ( surgarcane bagasse, bamboo pulp, wood pulp, straw pulp) , this production line can change mold to produce all kinds of tableware such as paper plates and bowls, fast food take-away box, clamshell box, lunch box, cake tray, pizza tray, salad box, cups, cup lids.

The whole production is under automatic control via HIM, processes of forming, wet hot pressing, and trimming and stacking run continually, During the above processes moulds and products are transfered by walking robot arm, which has saved much labor.

Technical Description
Machine Material All parts in contact with water is SS304 Stainless Steel
Mold Platen Size 1100x800mm
Production Capacity 30-40kg/hr/set
Machine Automation Automatic with Double Horizontal Walking Robot Arm​
Workshop Requirement ~ 800㎡
Operator Required 5~8 people/shift
Feeding raw material Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp)
Forming Method Vacuum forming
Drying Method Dry in mold, thermal forming
Machine Function Forming, drying, hot press all in one machine
Control PLC+ Touch screen

Features:

1.Forming, hot pressing, trimming and stacking are fully automatic operated.
2. The vacuum system is used for product forming and transferring.
3. High-pressure water system is used for cleaning the molds and the rough edges of products.

Production Application:

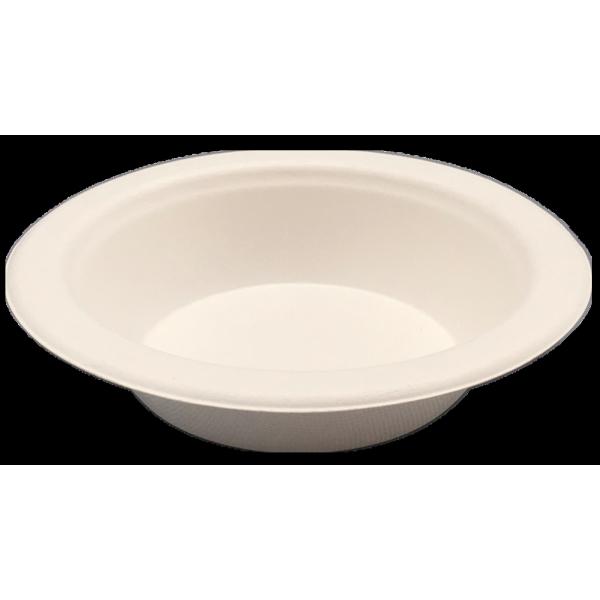

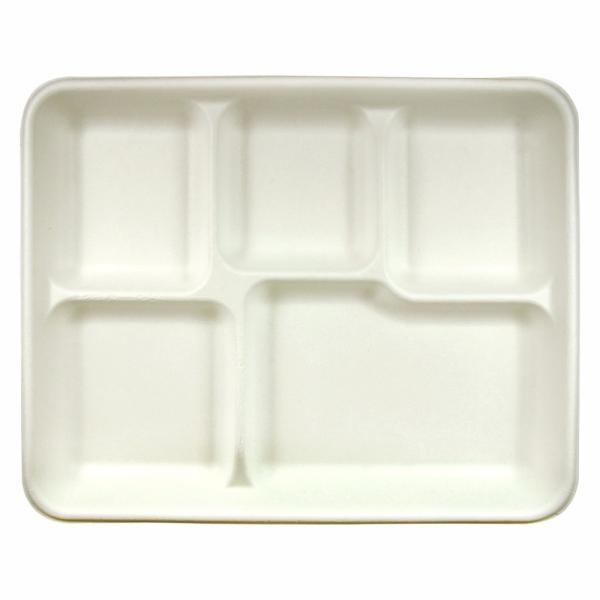

-Disposable Tableware
-Paper Plates

-Paper Bowls

-Fast Food Take-away Box and Lid
-Ready Meal Packaging Trays
-Supermarket Fresh Trays
-Branded Food Packaging
-Cup and Lid
-Cup Holder and Carriers

Production Working Process:

Nature To Nature Pulp Molded Smart Tableware Machine With Double Robot Arms

Application:

Nature To Nature Pulp Molded Smart Tableware Machine With Double Robot ArmsNature To Nature Pulp Molded Smart Tableware Machine With Double Robot ArmsNature To Nature Pulp Molded Smart Tableware Machine With Double Robot Arms
