Wood Pulp Burger Container Making Machine With Trimming And Stacking Robot
Wood Pulp Burger Container Making Machine With Trimming And Stacking Robot
Specifications
Brand Name :
ChuangYi
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, Western Union, T/T
Supply Ability :
20sets
Delivery Time :
60-90days
Packaging Details :
Export Standar Packing
Automation :
Fully automatic
Raw material :
bagasse/bamboo/wood/straw
Mold size :
1100*800mm
Production Capacity :
1.2 tons/set/day
Core Components :
PLC, Pressure vessel, Other, Engine, Gear, Motor, Pump, B
Product Type :
clamshell box making machine
Processing Type :
Pulp Molding Machine
Control By: :
PLC + Touchscreen
Description

Wood Pulp Burger Container Making Machine With Trimming And Stacking Robot ​

This fully automatic pulp molded tableware machine is mainly applied for producing eco friendly disposable plates, bowls, trays, boxes, and other biodegradable food packaging items. Its large work table and fully automatic operation will bring you super high productivity.

The whole production is under automatic control via HIM, processes of forming, wet hot pressing, and trimming and stacking run continually, During the above processes moulds and products are transfered by walking robot arm, which has saved much labor.

Technical Description
Machine Material All parts in contact with water is SS304 Stainless Steel
Mold Platen Size 1100x800mm
Production Capacity 30-40kg/hr/set
Machine Automation Automatic with Double Horizontal Walking Robot Arm​
Workshop Requirement ~ 800㎡
Operator Required 5~8 people/shift
Feeding raw material Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp)
Forming Method Vacuum forming
Drying Method Dry in mold, thermal forming
Machine Function Forming, drying, hot press all in one machine
Control PLC+ Touch screen

Features:

Fully automatic pulp molded tableware machine
Patented free punching free trimming technology, automatic collection, intelligent counting,15% lower production cost than semi-automatic equipment
The large work table greatly increases the daily output of finished products.
Automatically and adjustable controlled by PLC.
Pneumatic and hydralic dual control,energy saving and high efficiency.

Production Application:


-Disposable Tableware
-Paper Plates

-Paper Bowls

-Fast Food Take-away Box and Lid
-Ready Meal Packaging Trays
-Supermarket Fresh Trays
-Branded Food Packaging
-Cup and Lid
-Cup Holder and Carriers

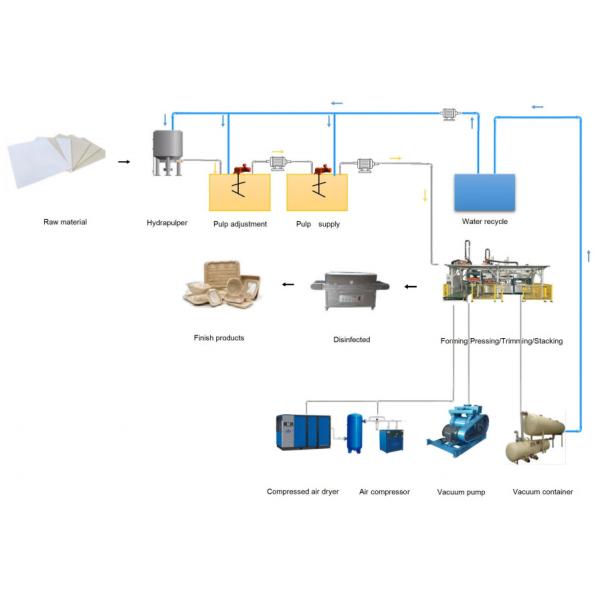

Production Working Process:

Wood Pulp Burger Container Making Machine With Trimming And Stacking Robot

Application:

Wood Pulp Burger Container Making Machine With Trimming And Stacking Robot
