Fully Auto Bagasse Fiber Takeaway Food Tray Making Machine With 6 Axis Robot
Fully Auto Bagasse Fiber Takeaway Food Tray Making Machine With 6 Axis Robot
Fully Auto Bagasse Fiber Takeaway Food Tray Making Machine With 6 Axis Robot
Fully Auto Bagasse Fiber Takeaway Food Tray Making Machine With 6 Axis Robot
Specifications
Brand Name :
ChuangYi
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, Cash
Supply Ability :
20sets
Delivery Time :
60-90days
Packaging Details :
Export Standar Packing
Automation :
Automatic with 6 axis Robot Arm​
Mold Plate Size :
1100*800mm
Capacity :
1 ton/set/day
Drying type :
Dry in mould
Material consumption :
180~210kg per hour
Water consumption :
1-1.2 ton/h
Electricity consumption :
200-250kw
Operator Required :
5-8 people/shift
Description

Fully auto bagasse fiber takeaway food tray making machine with 6 axis robot​

Molded pulp is often considered a sustainable tableware material, unlike plastic material, molded pulp is produced from natural fiber, which can be recycled again after its life-cycle of 3-4 months degradable by landfill.

By using virgin pulp ( surgarcane bagasse, bamboo pulp, wood pulp, straw pulp) , this production line can change mold to produce all kinds of tableware such as paper plates and bowls, fast food take-away box, clamshell box, lunch box, cake tray, pizza tray, salad box, cups, cup lids.

The whole production is under automatic control via HIM, processes of forming, wet hot pressing, and trimming and stacking run continually, During the above processes moulds and products are transfered by 6 axis robot arm, which has saved much labor.

Technical Description
Machine Model
Mold Platen Size 1100x800mm
Production Capacity 30-40kg/hr/set
Machine Automation Automatic with Double Horizontal Walking Robot Arm​
Workshop Requirement ~ 800㎡
Operator Required 5~8 people/shift
Feeding raw material Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp)
Forming Method Vacuum forming
Drying Method Dry in mold, thermal forming
Machine Function Forming, drying, hot press all in one machine
Control PLC+ Touch screen
Machine Material All parts in contact with water is SS304 Stainless Steel

Features:

-Apply international well known brand of industrial robot arm,

-Mature design for the whole setting

-Better product finish than manual model

Production Application:


-Disposable Tableware
-Paper Plates

-Paper Bowls
-Fast Food Take-away Box and Lid
-Ready Meal Packaging Trays
-Supermarket Fresh Trays
-Branded Food Packaging
-Cup and Lid
-Cup Holder and Carriers

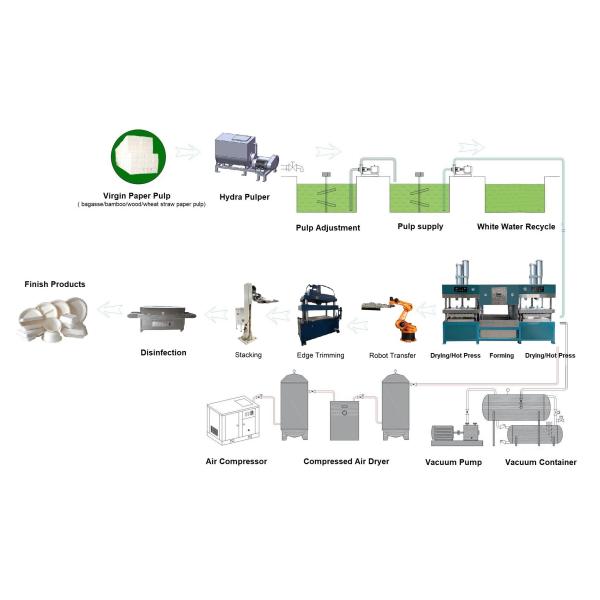

Production Working Process:

Fully Auto Bagasse Fiber Takeaway Food Tray Making Machine With 6 Axis Robot

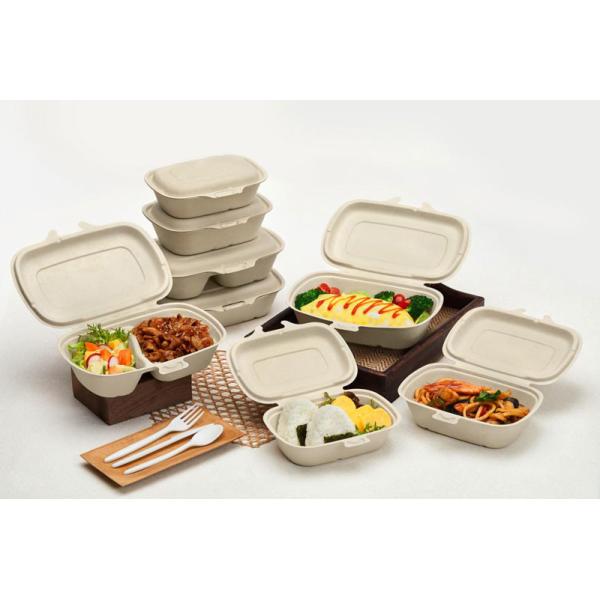

Illustration of product:

Fully Auto Bagasse Fiber Takeaway Food Tray Making Machine With 6 Axis Robot
