Smart Disposable Paper Pulp Molding Food Tray Producing Machine With Two Robot Arms
Smart Disposable Paper Pulp Molding Food Tray Producing Machine With Two Robot Arms
Smart Disposable Paper Pulp Molding Food Tray Producing Machine With Two Robot Arms
Smart Disposable Paper Pulp Molding Food Tray Producing Machine With Two Robot Arms
Smart Disposable Paper Pulp Molding Food Tray Producing Machine With Two Robot Arms
Smart Disposable Paper Pulp Molding Food Tray Producing Machine With Two Robot Arms
Smart Disposable Paper Pulp Molding Food Tray Producing Machine With Two Robot Arms
Smart Disposable Paper Pulp Molding Food Tray Producing Machine With Two Robot Arms
Specifications
Brand Name :
ChuangYi
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1 Set
Payment Terms :
L/C, T/T, Western Union, Cash
Delivery Time :
30days
Packaging Details :
Export Standar Packing
Mold Plate size :
1100mm*800mm
Forming Method :
Vacuum Suction
Driving Method :
Air Cylinder
Production Capacity :
1 ton/set/day
Drying Method :
Dry in mould
Heating by :
Conduction Oil or Electric
Guarantee Period :
1 Year
Control Method :
PLC and Touch Screen
Description

Smart disposable paper pulp food tray producing machine with two robot arms

Molded pulp is often considered a sustainable tableware material, unlike plastic material, molded pulp is produced from natural fiber, which can be recycled again after its life-cycle of 3-4 months degradable by landfill.

By using virgin pulp ( surgarcane bagasse, bamboo pulp, wood pulp, straw pulp) , this production line can change mold to produce all kinds of tableware such as paper plates and bowls, fast food take-away box, clamshell box, lunch box, cake tray, pizza tray, salad box, cups, cup lids.

The whole production is under automatic control via HIM, processes of forming, wet hot pressing, and trimming and stacking run continually, During the above processes moulds and products are transfered by 2 mechanical robot arm, which has saved much labor.

Technical Description
Machine Material All parts in contact with water is SS304 Stainless Steel
Mold Platen Size 1100x800mm
Production Capacity 30-40kg/hr/set
Machine Automation Automatic with Double Horizontal Walking Robot Arm​
Workshop Requirement ~ 800㎡
Operator Required 5~8 people/shift
Feeding raw material Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp)
Forming Method Vacuum forming
Drying Method Dry in mold, thermal forming
Machine Function Forming, drying, hot press all in one machine
Control PLC+ Touch screen

Features:

- The process of production is fully automatic.

- low labor cost

-capable to make tableware with low demolding angle

-capable to make trimming- free products

- High precision, positioning accuracy, easy control and stable running.

Production Application:


-Disposable Tableware
-Paper Plates And Bowls
-Fast Food Take-away Box and Lid
-Ready Meal Packaging Trays
-Supermarket Fresh Trays
-Branded Food Packaging
-Cup and Lid
-Cup Holder and Carriers

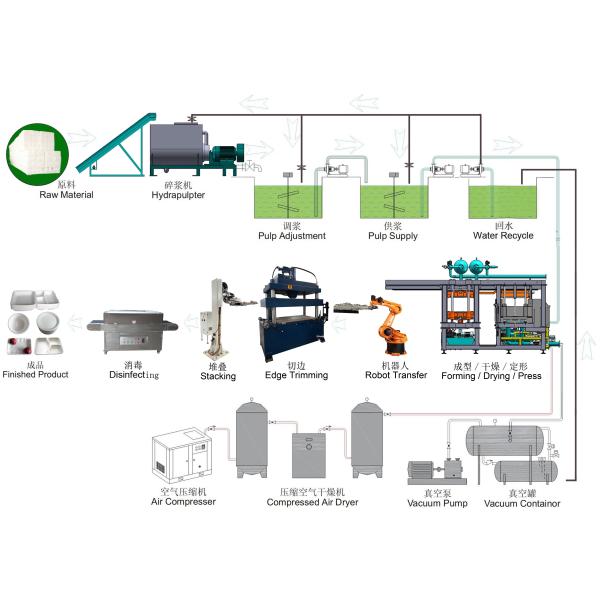

Production Working Process:

Smart Disposable Paper Pulp Molding Food Tray Producing Machine With Two Robot Arms

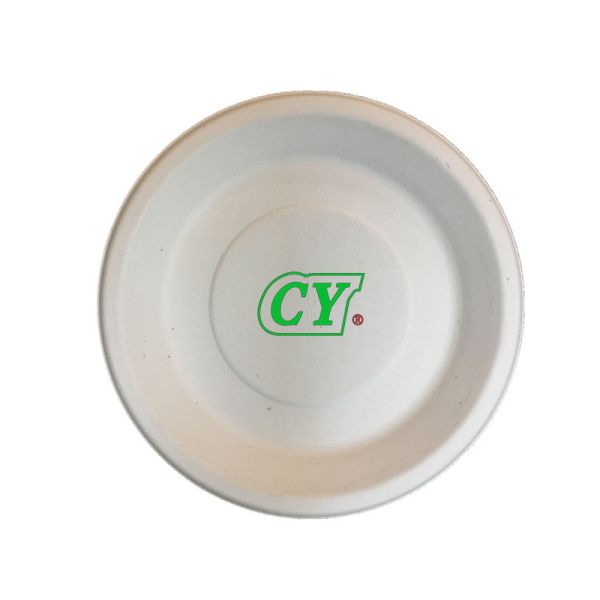

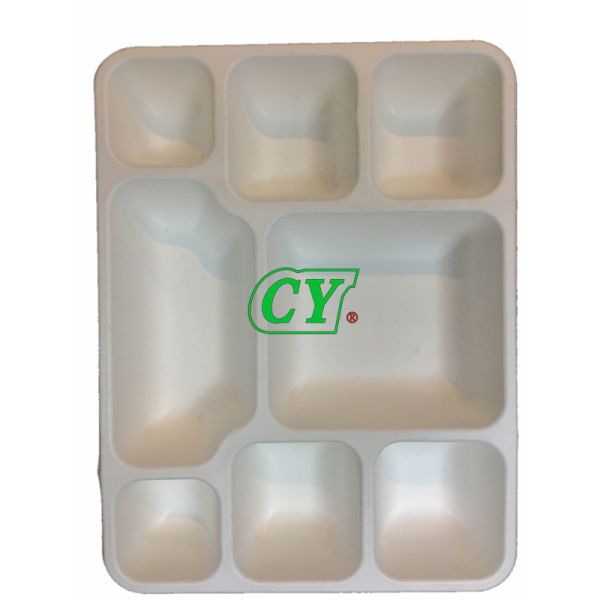

Illustration of product:

Smart Disposable Paper Pulp Molding Food Tray Producing Machine With Two Robot ArmsSmart Disposable Paper Pulp Molding Food Tray Producing Machine With Two Robot ArmsSmart Disposable Paper Pulp Molding Food Tray Producing Machine With Two Robot Arms
