Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp
Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp
Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp
Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp
Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp
Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp
Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp
Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp
Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp
Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp
Specifications
Brand Name :
ChuangYi
Model Number :
CBC-3T
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1 Set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, Cash
Delivery Time :
90days
Packaging Details :
Export Standar Packing
Color :
Milky White
Raw Material :
Virgin Pulp, Wood Pulp, Surgarcane Bagasse Plate, Virgin Pulp
Automation :
Semi-automatic (Fully Automatic with Robot)
Mould Plate Size :
1100*800mm
Forming Method :
Vacuum Suction
Control Method :
PLC and Touch Screen
Heating Type :
Thermal Oil or Electric
Capacity :
3-5tons per day
Guarantee Period :
1 Year
Description

Biodegradable Sugarcane Bagasse Plates Making Machine Virgin Pulp Wood Pulp

Biodegradable Pulp Disposable Tableware Machine:

(1) The forming machine is semi-automatic forming system, but by using robots to be fully automatic, as the robot will transfer the products to be hot pressing, edge cutting.

(2) The raw material is virgin paper plate, sugarcane bagasse pulp, straw pulp, bamboo pulp,etc.

(3) One forming part in the middle, and two hot press parts on the two sides.

(4) It applies to all kinds of paper pulp tableware products, medical care products, paper pulp mask and high-quality goods packaging.

Specifications:

Product name Degradable pulp molding dishware
Model CBC-3T
Capacity 120~220 kgs per hour
Mould Plate size 1100*800mm
Forming method Vacuum suction
Control method PLC and touch screen
Workshop Requirement 1500㎡
Pulp tank material Stainless steel 304
Electricity consumption 170~195 KWH (280 kw installed)
Water consumption 300-500kgs/h
Fuel consumption

Fuel consumption

if heat by conduction oil

Natural gas 45~55 m3/h

conduction oil boiler required: thermal power 660000kcal/h

Electricity consumption

if heat by conduction oil

 170~195 KWH (280 kw installed)
Chemical for Water Resistance 5~8 kg/h
Chemical for Oil Resistance 1.2~2 kg/h
Operator Required 16~17 people/shift

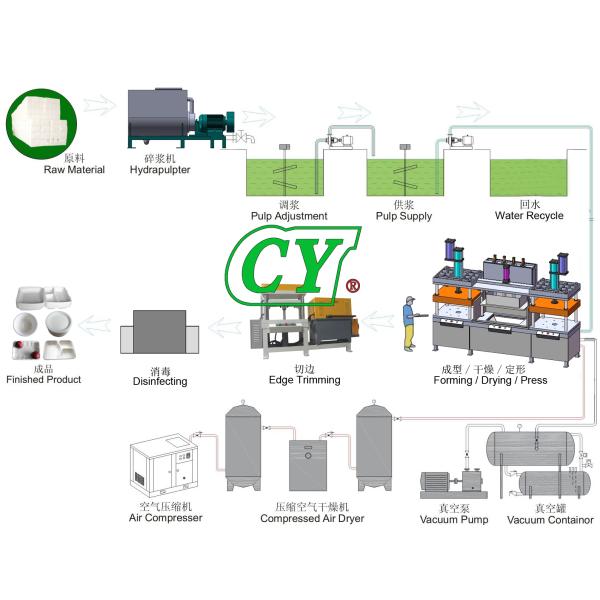

Schematic Diagram:

Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp

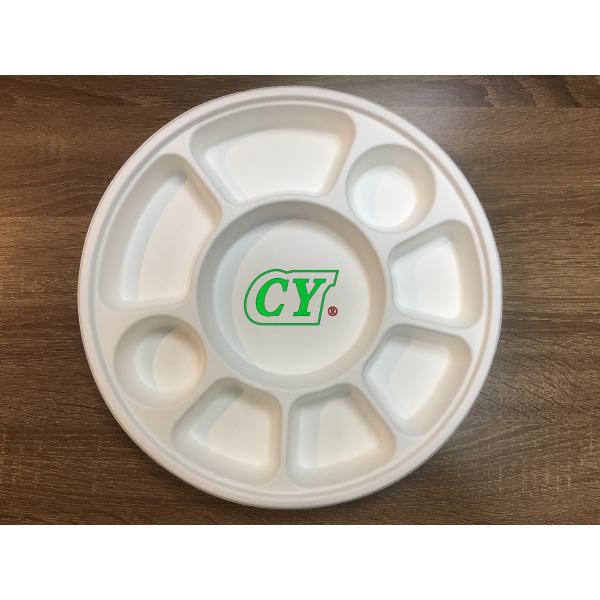

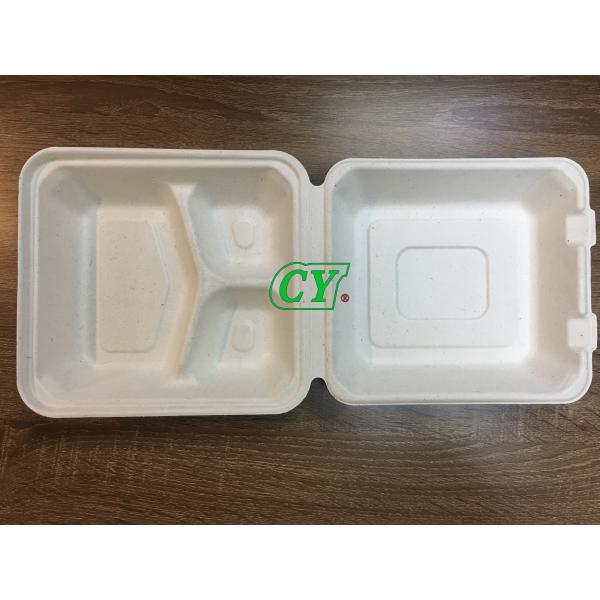

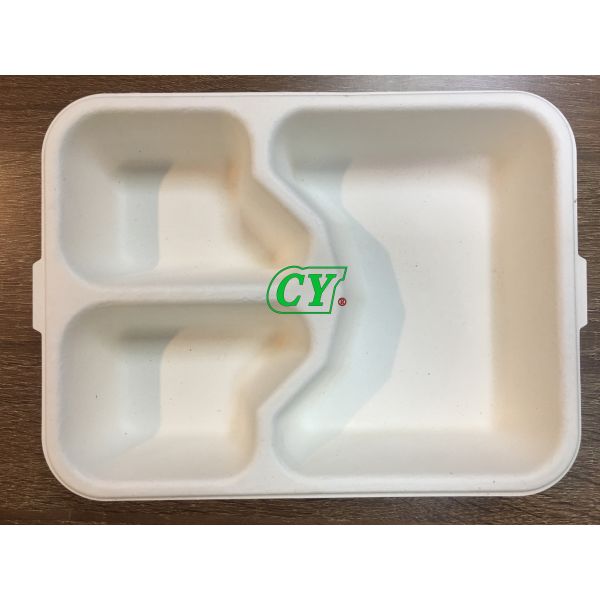

Applications:

Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp

Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp

Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp
