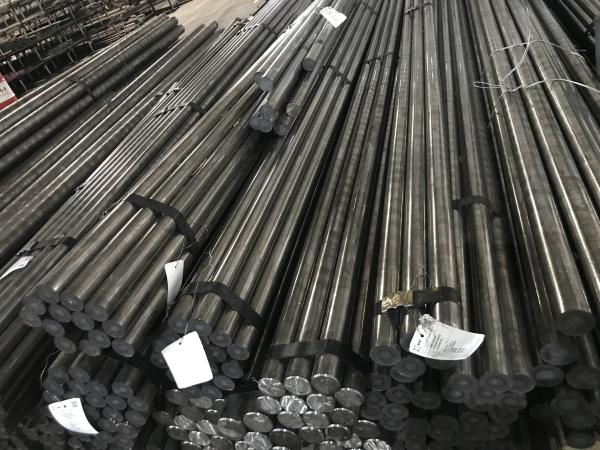

Cold Stamping Dies 1.2379 / SKD11 Tool Steel Round Bar
Cold Stamping Dies 1.2379 / SKD11 Tool Steel Round Bar
Cold Stamping Dies 1.2379 / SKD11 Tool Steel Round Bar
Cold Stamping Dies 1.2379 / SKD11 Tool Steel Round Bar
Specifications
Brand Name :
TAKFORD
Model Number :
D2/1.2379/SKD11/CR12MOV
Place of Origin :
China
MOQ :
1
Price :
2-4 USD/KG
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 TONS PER MONTH
Delivery Time :
5-8 WORKING DAYS
Packaging Details :
SEA SAFE PACAKGE
Steel grade :
D2/1.2379/SKD11/CR12MOV
Technique :
ESR Hot Rolled, Forged, EAF+LF+VD+Hot Rolled/Forged, Forged/Hot Rolled/Cold Drawn, Hot rolled/forged/cold draw
Alloy or not :
Is Alloy, Non-alloy
Standard :
AISI, DIN, ASTM, GB, JIS
Delivery condition :
Peeled, EAF+LF+VD, Finish Machining, Q+T, annealed or QT.
Application :
Tool Steel Bar, Die Steel Bar, Structural Steel Bar, industry, Cold work tool steel
Name :
D2 steel round bar for cold stamping dies with high wear resistance and long life
Dimensions :
Dia 6mm-430mm , plate thickness 6-400mm
Description

1.2379 SKD11 steel round bar for cold stamping dies with high wear resistance and long life

Description

D2/1.2379/ die steel is a kind of high carbon and high chromium cold working die steel widely used in the world. It belongs to ledeburite steel with high hardenability, hardenability and high wear resistance. It has good high temperature oxidation resistance, good corrosion resistance after quenching and polishing, and small deformation after heat treatment

Application:

It is suitable for tool steel with complex deformation, various cold stamping dies with high wear resistance and long life, cold cutting edge, thread rolling plate, cold extrusion forming, drawing die, stainless steel sheet and blanking die for high hardness materials.

D2/1.2379/CR12MO1V1 /SKD11 Chemical composition:

C
Si
Mn
S
P
Cr
Ni
Cu
V
Mo
1.40-1.6
0.6
0.6
0.03
0.03
11.5-13
0.25
0.30
1.00
0.70

Detail information:

Product Name

mould steel/plastic mould steel/ tool steel/alloy steel/carbon steel/steel round bar

/steel plate/special steel/die steel/mould base/cold work tool steel/hot work tool steel/
Length any size can custom-made
Width any size can custom-made
Thickness any size can custom-made
Chemical composition

Grade C Si Cr Mn Mo V P S
DIN 1.2379 1.5-1.6 0.1-0.4 11.0-12.0 0.15-0.45 0.6-0.8 0.9~1.1 ≤0.03 ≤0.03
AISI D2 1.4-1.6 0.1-0.6 11.0-13.0 0.2-0.6 0.7-1.2 0.5~1.1 ≤0.03 ≤0.03
JIS SKD11 1.4-1.6 ≤0.4 11.0-13.0 ≤0.6 0.8-1.2 0.2~0.5 ≤0.03 ≤0.03
Standard AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc.
Technique Hot rolled/forged/cold draw
Surface Treatment clean/black rough/milled/grinding painting etc.
Thickness tolerance ±0.15mm
Material

3Cr2Mo/1.2311/1.2312/P20/1.2738/718H/P20+Ni/1.2316/1.2083/4Cr13

/sus420j2/420/S136/NAK80H13/1.2344/SKD61/5CrNiMo/SKT4/1.2714

Cr12/D3/1.2080/Cr12MoV/D2/1.2379/SKD11/9CrWMn/O1/1.2510/SKS3 /DC53

40Cr/5140/35CrMo/42CrMo/4140/1.7225

C45/C50/1045/1050/S50C/S45C/T10/T8

M2/1.338/SKH51

CUSTOM-MADE
MOQ 1 ton to 25 tons and accept sample order
Shipping time 15-20 days after receiving deposit or L/C
Export packing Standrad export seaworthy package/ wooden box package
Capacity 12000 tons/year
