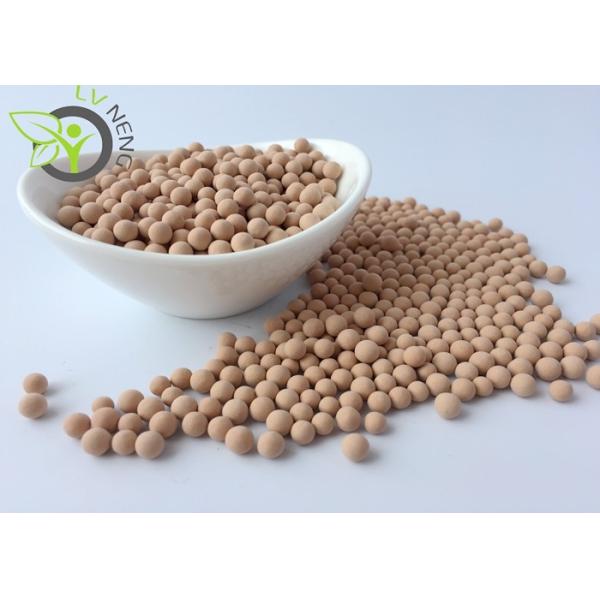

Zeolite Molecular Sieve Adsorbent 3A 4A 5A 13X Type For Removing CO2
Zeolite Molecular Sieve Adsorbent 3A 4A 5A 13X Type For Removing CO2
Zeolite Molecular Sieve Adsorbent 3A 4A 5A 13X Type For Removing CO2
Zeolite Molecular Sieve Adsorbent 3A 4A 5A 13X Type For Removing CO2
Zeolite Molecular Sieve Adsorbent 3A 4A 5A 13X Type For Removing CO2
Zeolite Molecular Sieve Adsorbent 3A 4A 5A 13X Type For Removing CO2
Zeolite Molecular Sieve Adsorbent 3A 4A 5A 13X Type For Removing CO2
Zeolite Molecular Sieve Adsorbent 3A 4A 5A 13X Type For Removing CO2
Specifications
Brand Name :
Xi'an Lvneng
Model Number :
3A 4A 5A Molecular Sieve
Certification :
ISO9001:2008
Place of Origin :
Shaanxi,China
MOQ :
10 Kilograms
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 Tons/ per Month
Delivery Time :
3-15 work days
Packaging Details :
1. Carton Drum/25KG 2. Carton Box/25KG; 3. Iron Drum/150KG
Bulk density :
≥0.75g/ml,0.68g/ml
Water adsorption :
≥21.0%
Certificate :
SGS & REACH
Attrition rate :
≤0.1%
Type :
Adsorbent
Package moisture :
≤1.5%
Description

Zeolite Molecular Sieve 3a 4a 5a 13x For Desiccant, Dryer And Removing CO2 In Chemical

Overview

Molecular Sieves which have divided into several types of 3A, 4A, 5A, 13X, Insulating Glass Molecular Sieve, CMS etc.

Typical Application


1) Drying of unsaturated hydrocarbons (e.g. ethylene, propylene, butadiene)
2) Cracked Gas Drying
3) Drying of natural gas, if COS minimization is essential, or a minimum co-adsorption of hydrocarbons is required.
4) Drying of highly polar compounds, such as methanol and ethanol
5) Drying of liquid alcohol

6) Static, (non-regenerative) dehydration of insulating glass units, whether air-filled or gas-filled.
7) Drying of refrigerants

Technical Index

Molecular Sieve 3A Typical Physical Properties
Item Unit 8*12 Mesh 4*6 Mesh
Bead Size mm 1.6-2.5 3.0-5.0
Bulk Density g/ml ≥ 0.70-0.82 0.65-0.80
Equilibrium Water Capacity @ 25℃ wt% ≥ 19.0-21.0 19.0-21.0
Equilibrium Ethylene Capacity mg/g≤ 3.0 3.0
Heat of Adsorption BTU/lb of H2O 1800 1800
Crush Strength Point Contact N ≥ 20-58 80-130
Variation Coefficient - 0.3 0.3
Attrition Rate wt% ≤ 0.1 0.1
Size Qualification % ≥ 98 98
Package Moisture wt% ≤ 1.5 1.5
The interval value of the indexes above are on the basis of the different grade of Molecular Sieve 3A

Regeneration


Molecular sieve Type 3A can be regenerated by either heating in the case of thermal swing processes; or by lowering the pressure in the case of pressure swing processes.
To remove moisture from a 3A molecular sieve, a temperature of 200-230°C is required. A properly regenerated molecular sieve can give moisture dew points below -100°C.
The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process.

Attention


To avoid damp and pre-adsorption of organic before running, or just to be reactivated.
