Specifications
Brand Name :
PRM
Model Number :
RO5200 RO5400
Certification :
ISO9001
Place of Origin :
China
MOQ :
0.5kg
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
2000kgs/month
Delivery Time :
7~10 work days
Packaging Details :
Plywood case
Name :
Tantalum rod
Purity :
min.99.95%
Surface :
Polished
Diameter :
￠3~￠120mm
Standard :
ASTM B365
Grade :
RO5200, RO5400, RO5252(Ta-2.5W), RO5255(Ta-10W),TaNb3,TaNb20
Density :
≥16.67g/cm3
Application :
Chemical industry, electronic industry, aerospace industry, aviation industry
Description

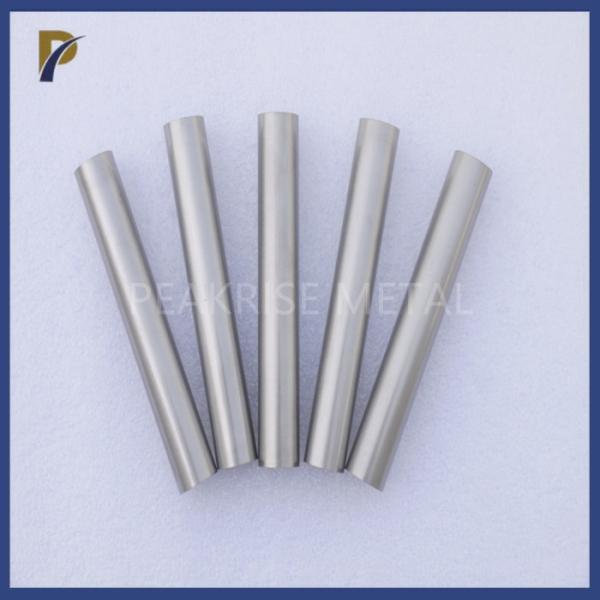

High Purity 99.95% RO5200 RO5400 Ta1 Tantalum Rod

1. Specification Of RO5200 RO5400 Ta1 Tantalum Rod:

Tantalum rod Tantalum bar

Material: RO5200, RO5400, RO5252(Ta-2.5W), RO5255(Ta-10W),TaNb3,TaNb20

Diameter: ￠3~￠120mm Length:max3000mm

Purity: ≥99.95%

Surface: bright,polish

Standard: As per ASTM B 365

Grade Main elements 　 Impurity content less than %
　 Ta Nb Fe Si Ni W Mo Ti Nb O C H N
Ta1 Remain —— 0.005 0.005 0.002 0.01 0.01 0.002 0.04 0.02 0.01 0.0015 0.01
Ta2 Remain —— 0.03 0.02 0.005 0.04 0.03 0.005 0.1 0.03 0.01 0.0015 0.01
TaNb3 Remain ＜3.5 0.03 0.03 0.005 0.04 0.03 0.005 —— 0.03 0.01 0.0015 0.01
TaNb20 Remain 17.0～23.0 0.03 0.03 0.005 0.04 0.03 0.005 —— 0.03 0.01 0.0015 0.01
Ta2.5W Remain 　 0.005 0.005 0.002 3 0.01 0.002 0.04 0.02 0.01 0.0015 0.01
Ta10W Remain 　 0.005 0.005 0.002 11 0.01 0.002 0.04 0.02 0.01 0.0015 0.01

Diameter

(mm)

 Dia tolerance(mm)

Length

(mm)

Tolerance

(mm)
Gorged rod Pulling rod Machine rod
3.0-4.5 - 0.05 - 500-1500 ±2
4.5-6.5 ±0.15 - - 500-1500 ±2
6.5-10 ±0.15 - - 400-1500 ±2
10-16 ±0.15 - - 300-1200 ±2
16-18 ±0.15 - - 200-1500 ±2
18-25 - - ±0.5 ±2
25-40 - - ±0.5 ±2
40-50 - - ±0.6 ±2
50-65 - - ±0.7 ±2

Rod diameter 0.125’’(3.18mm)~2.5" (63.5mm)
Grade

Ultimate tensile strength minimum,

lb/in2 (MPa)

Minimum yield strength,

lb/in2 (MPa)

Elongation, min %

(1 inch gauge length)
RO5200/RO5400 25000 (172) 15000 (103) 25
RO5252 40000 (276) 28000 (193) 20
RO5255 70000 (482) 55000 (379) 20
RO5240 40000 (276) 28000 (193) 25

High Purity 99.95% Tantalum Rod Polished Surface RO5200 RO5400 Ta1High Purity 99.95% Tantalum Rod Polished Surface RO5200 RO5400 Ta1

2. Application Of RO5200 RO5400 Ta1 Tantalum Rod:

Tantalum rod mainly used in corrosion-resistant and superconducting industries. It can be used as tantalum capacitors, tantalum electrodes, and tantalum processing parts to make heating parts and heat-insulating parts for vacuum high-temperature furnaces. It can be used to make cookers and heaters in the chemical industry. , coolers, various utensils and devices, etc.

Process Flow Of Tantalum Rod: smelting-forging-inspection-polishing-vacuum annealing-inspection-packaging.

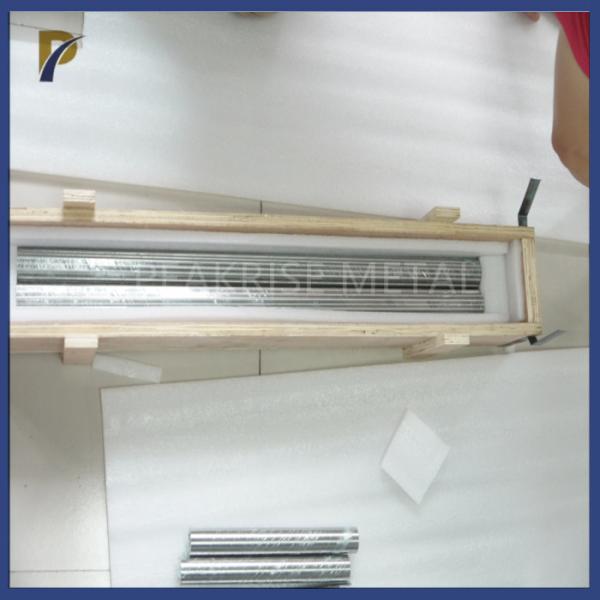

3. Package & Shipping Of RO5200 RO5400 Ta1 Tantalum Rod:

Packaging with foam plastics in all side of plywood case,and then shipping by express,air,sea,rail transport.

High Purity 99.95% Tantalum Rod Polished Surface RO5200 RO5400 Ta1High Purity 99.95% Tantalum Rod Polished Surface RO5200 RO5400 Ta1

4. FAQ:

1).What are the common applications of tantalum rods?

Tantalum rods find use in industries like electronics, aerospace, chemical processing, and medical devices. They are often used in the manufacture of high-temperature and corrosion-resistant equipment.


2). What are the available grades of tantalum rods, and how do I choose the right one for my application?

Tantalum rods come in different grades, such as R05200 and R05400. The choice of grade depends on factors like temperature, corrosion resistance, and electrical properties required for your specific application. Consult with a supplier to select the appropriate grade.


3). What is the typical lead time for ordering tantalum rods?

Lead times can vary depending on the supplier and the specific requirements of your order. It's advisable to contact suppliers in advance to discuss lead times and ensure timely delivery.
