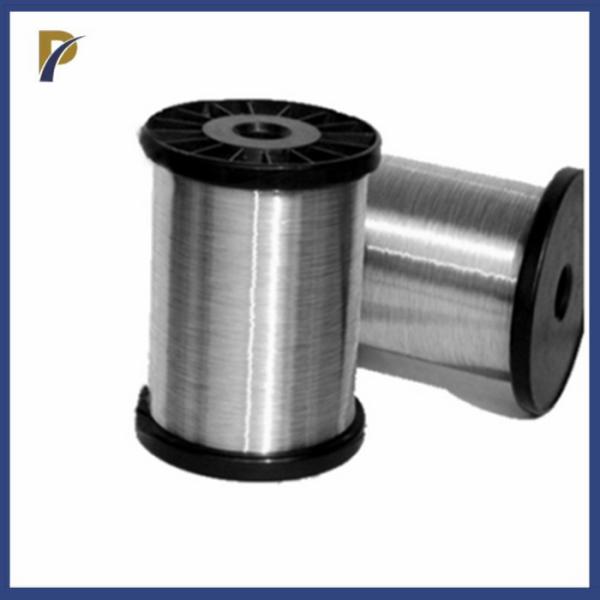

Zr702 Zirconium Wire 0.1mm 0.15mm 0.2mm 0.25mm 0.3mm 0.4mm 0.5mm
Zr702 Zirconium Wire 0.1mm 0.15mm 0.2mm 0.25mm 0.3mm 0.4mm 0.5mm
Zr702 Zirconium Wire 0.1mm 0.15mm 0.2mm 0.25mm 0.3mm 0.4mm 0.5mm
Zr702 Zirconium Wire 0.1mm 0.15mm 0.2mm 0.25mm 0.3mm 0.4mm 0.5mm
Zr702 Zirconium Wire 0.1mm 0.15mm 0.2mm 0.25mm 0.3mm 0.4mm 0.5mm
Zr702 Zirconium Wire 0.1mm 0.15mm 0.2mm 0.25mm 0.3mm 0.4mm 0.5mm
Zr702 Zirconium Wire 0.1mm 0.15mm 0.2mm 0.25mm 0.3mm 0.4mm 0.5mm
Zr702 Zirconium Wire 0.1mm 0.15mm 0.2mm 0.25mm 0.3mm 0.4mm 0.5mm
Specifications
Brand Name :
PRM
Model Number :
Custom
Certification :
ISO9001
Place of Origin :
China
MOQ :
1kg
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
50ton/month
Delivery Time :
5~7days
Packaging Details :
Plywood case
Name :
Zirconium wire
Grade :
Zr702 Zr705 Zr60001 Zr60804 Zr60901
Density :
6.51g/cm3
Purity :
>99.7%
Diameter :
0.1~3mm
Surface :
bright
Standard :
ASTM B550
Description

Product information:

Name: Zirconium wire

Grade: Zr702 Zr705 Zr60001 Zr60804 Zr60901

Density: 6.51g/cm3

Purity: >99.7%

Diameter: 0.1~3.0mm *L

Shape: Coil or Straight

Surface: Bright or pickling surface

Standard: ASTM B550

Zr702 Zirconium Wire 0.1mm 0.15mm 0.2mm 0.25mm 0.3mm 0.4mm 0.5mmZr702 Zirconium Wire 0.1mm 0.15mm 0.2mm 0.25mm 0.3mm 0.4mm 0.5mm

Chemical Content Of Zirconium Wire:

Grade Element composition(%)< Standard
Zr+Hf Hf Fe+Cr Sn H N C Nb O
R60702 99.2 4.5 0.20 -- 0.005 0.025 0.05 -- 0.16 ASTM B550
R60703 98 4.5 -- -- --0.005 0.025 -- -- --
R60704 97.5 4.5 0.20~0.40 1.0~2.0 0.005 0.025 0.05 -- 0.18
R60705 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18
R60706 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18

Physical properties of zirconium wire:

The elastic modulus of zirconium wire is low, the welding stress is small, the melting point is high, higher welding line energy is required, the linear expansion coefficient is small, the welding deformation is small, the welding parts with high thermal conductivity have good heat dissipation, and the specific heat is low, the welding parts have Small heat absorption, high surface tension.


Application of Zirconium Wire:

Industrial zirconium wire is widely used in various types of corrosion-resistant process equipment, mainly used in pressure vessels, heat exchangers, pipes, tanks, shafts, mixers and other mechanical equipment as well as valves, pumps, sprayers, trays, demisters and tars. According to statistics, only left and right objects are processed into the shape of zirconium (or zirconium sponge) and then processed into zirconium alloys for use in nuclear fuel components or industrial fields. In terms of ease of processing, science and technology, the zirconium industry chain is the most high-end.
