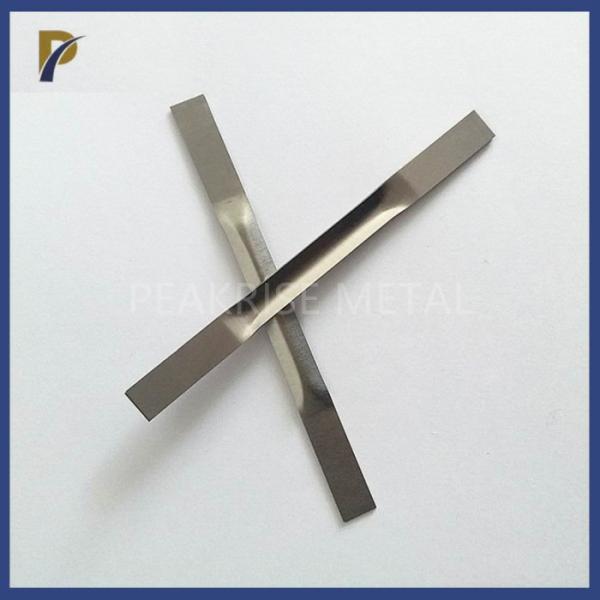

#510 Thermal Tungsten Evaporation Boat ASTM B 770 Standard Evaporation Material Tungsten Boats Stamping Tungsten Boat
#510 Thermal Tungsten Evaporation Boat ASTM B 770 Standard Evaporation Material Tungsten Boats Stamping Tungsten Boat
#510 Thermal Tungsten Evaporation Boat ASTM B 770 Standard Evaporation Material Tungsten Boats Stamping Tungsten Boat
#510 Thermal Tungsten Evaporation Boat ASTM B 770 Standard Evaporation Material Tungsten Boats Stamping Tungsten Boat
Specifications
Brand Name :
PRM
Model Number :
custom
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
$5~50/pc
Payment Terms :
T/T
Supply Ability :
20000pcs/month
Delivery Time :
10~15work days
Packaging Details :
plywood case
Name :
#510 Evaporation Boat Evaporation Tungsten Coat
Material :
Pure Tungsten
Purity :
min.99.95%
Density :
19.3g/cm3
Surface :
Bright
Craft :
stamping
Standard :
ASTM B 770
MOQ :
1pc
Description

#510 Evaporation Boat Evaporation Tungsten Coat

1. Information about #510 Evaporation Boat Tungsten Coat:

Tungsten boats can also be called evaporated tungsten boats or coated tungsten boats. They are formed by high temperature stamping of tungsten sheets. There are punching boats, folding boats and other types. They are widely used in the vacuum coating industry and the sintering furnace sintering or vacuum annealing boat industry.

2. Common #510 size Evaporation Tungsten Coat Evaporation Boat:

Type Length (mm) Width(mm) Thickness(mm) Groove depth(mm)
#210 100 10 0.2 2.4~2.5
#310 100 10 0.3 2.4~2.5
#315 100 15 0.3 2.4~2.5
#510 100 25 0.5 2.1

We can accept all kinds of heterosexual boat customization according to customer's drawing.

#510 Thermal Tungsten Evaporation Boat ASTM B 770 Standard Evaporation Material Tungsten Boats Stamping Tungsten Boat#510 Thermal Tungsten Evaporation Boat ASTM B 770 Standard Evaporation Material Tungsten Boats Stamping Tungsten Boat

3.Classification of Evaporation Boat Evaporation Tungsten Coat:

1). Flat groove boat: ideal for materials with great wet wettability.


2). V-shaped groove boat: suitable for materials with less wettability.


3). Oval grooved boat: suitable for materials in molten state.


4). Spherical groove boat: suitable for expensive materials such as gold and silver.


5). Narrow slot boat: This design prevents the evaporation material from sticking to the filament clip.


6). Evaporating aluminum boat: A layer of aluminum oxide is plated on the surface of the boat body to help the evaporation boat resist the molten material with strong corrosiveness.


7). Compared with 310, 510 is thicker and less prone to deformation or bending, and is more suitable for materials that are difficult to evaporate.


8). The tungsten boat is mainly used for evaporation in the vacuum evaporation coating process: powders, particles, high-priced metals, high-temperature refractory metal powders, and can also be used to evaporate indium wire, tin wire, aluminum wire, copper wire, etc.
