Vacuum Coating Molybdenum Boat Crucible #315,#310,#210,#215 Stamping Evaporation Boat Moly Boat Molybdenum Coating Boat
Vacuum Coating Molybdenum Boat Crucible #315,#310,#210,#215 Stamping Evaporation Boat Moly Boat Molybdenum Coating Boat
Vacuum Coating Molybdenum Boat Crucible #315,#310,#210,#215 Stamping Evaporation Boat Moly Boat Molybdenum Coating Boat
Vacuum Coating Molybdenum Boat Crucible #315,#310,#210,#215 Stamping Evaporation Boat Moly Boat Molybdenum Coating Boat
Vacuum Coating Molybdenum Boat Crucible #315,#310,#210,#215 Stamping Evaporation Boat Moly Boat Molybdenum Coating Boat
Vacuum Coating Molybdenum Boat Crucible #315,#310,#210,#215 Stamping Evaporation Boat Moly Boat Molybdenum Coating Boat
Specifications
Brand Name :
PRM
Model Number :
custom
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
$0.1~5.0/pc
Payment Terms :
T/T
Supply Ability :
20000pcs/month
Delivery Time :
7~10 work days
Packaging Details :
Plywood case
Name :
Molybdenum Boat For Vacuum Coating
Material :
Pure Molybdenum
Purity :
99.95%
Density :
10.2g/cm3
Grade :
Mo1
Size :
#315,#310,#210,#215 etc.
Surface :
Bright
MOQ :
1pc
Description

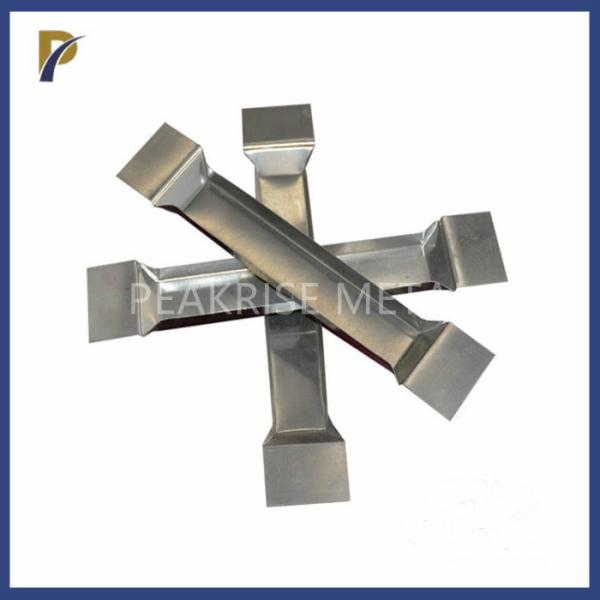

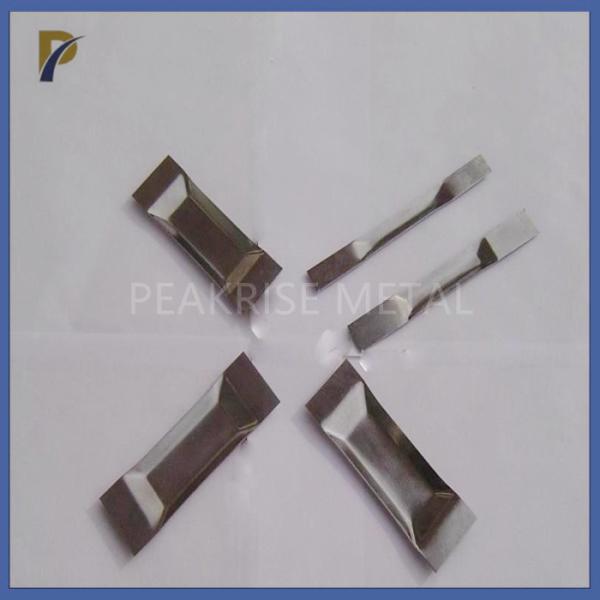

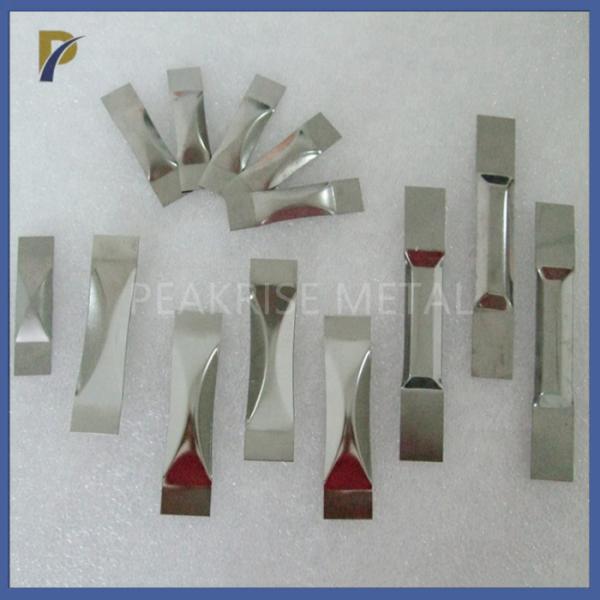

Molybdenum Boat For Vacuum Coating

1. Description of Molybdenum Boat For Vacuum Coating:

After molybdenum plates have been cut, folded, riveted, and welded, molybdenum boats are produced.The boat shapes, such as round, rectangular, square, trapezoidal, and so forth, can be customized to the needs of the customer. Molybdenum boats own properties of source material - pure molybdenum, or molybdenum alloy.

2. Size of Molybdenum Boat For Vacuum Coating:

length: 50mm-1000mm,
width: 10mm-500mm,
height: 10mm-300mm,
wall thickness: 0.3mm-30mm

Type Name Size
#315 Molybdenum boat (square bottom Thickness 0.3mm,width15mm,Length 100mm
#210 Molybdenum boats(square bottom) Thickness 0.2mm,width10mm,Length 100mm

Vacuum Coating Molybdenum Boat Crucible #315,#310,#210,#215 Stamping Evaporation Boat Moly Boat Molybdenum Coating BoatVacuum Coating Molybdenum Boat Crucible #315,#310,#210,#215 Stamping Evaporation Boat Moly Boat Molybdenum Coating Boat

3.Chemical of Molybdenum Boat For Vacuum Coating:

Grade Main chemical content% Impurity content(<%)
Mo Ti Zr C La2O3 C 0 N Fe Ni Si
Mo1 Remain — — — — 0.01 0.007 0.002 0.01 0.002 0.01
TZM Remain 0.40~0.55 0.06~0.12 0.01~0.04 — — 0.03 0.002 0.01 0.005 0.005
MoLa Remain — — — 0.4~1.2 0.01 — 0.002 0.01 0.002 0.01

4. Application of Molybdenum Boat For Vacuum Coating:

Molybdenum boat can be used in the vacuum thermal evaporation air, the capacitor's sinter, the nuclear fuel's sinter, rare earth industry. It also be used as carrying boats and related parts of high-temperature furnace of machines.

5. Main characteristics of Molybdenum Boat For Vacuum Coating:

High melting point (2610°C).

low thermal expansion.

High thermal conductivity.

low vapor pressure.

Excellent resistance to molten metal and glass corrosion.
