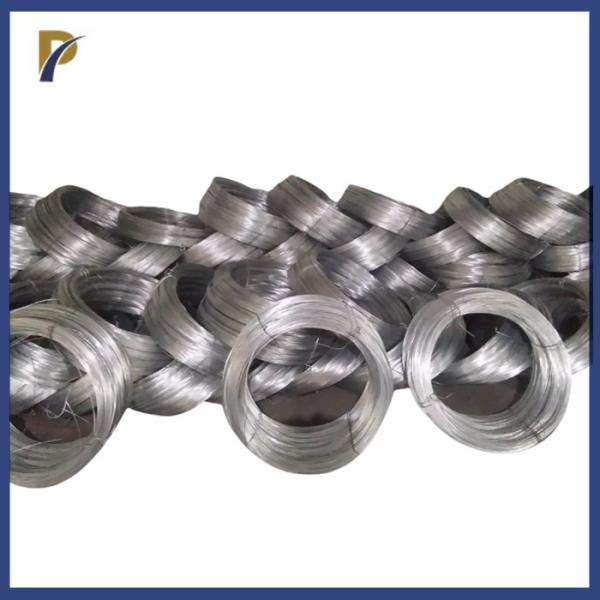

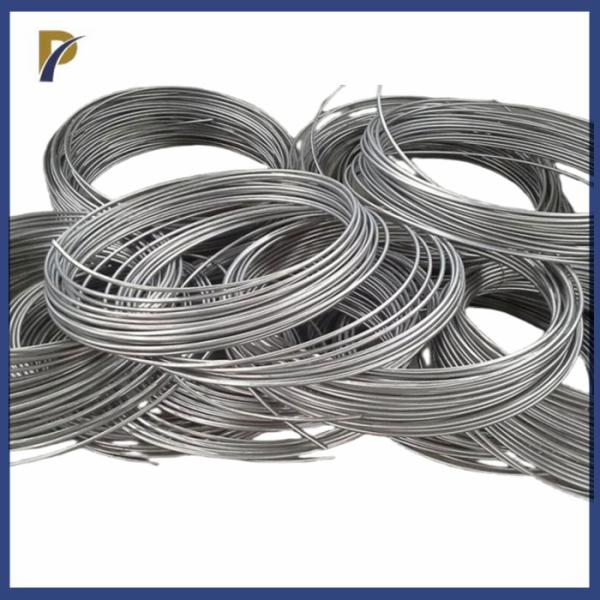

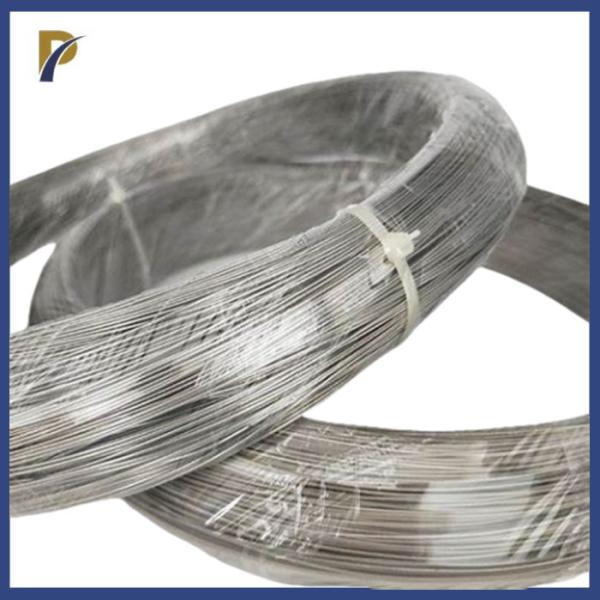

TA1/GR1 Diameter 0.1-10.0mm Pure Titanium Wire Titanium Coil Wire
TA1/GR1 Diameter 0.1-10.0mm Pure Titanium Wire Titanium Coil Wire
TA1/GR1 Diameter 0.1-10.0mm Pure Titanium Wire Titanium Coil Wire
TA1/GR1 Diameter 0.1-10.0mm Pure Titanium Wire Titanium Coil Wire
TA1/GR1 Diameter 0.1-10.0mm Pure Titanium Wire Titanium Coil Wire
TA1/GR1 Diameter 0.1-10.0mm Pure Titanium Wire Titanium Coil Wire
Specifications
Brand Name :
PRM
Model Number :
GR1,GR2,GR5,GR7,GR9,GR12
Certification :
ISO9001
Place of Origin :
China
MOQ :
1kg
Price :
$12~28/kg
Payment Terms :
T/T
Supply Ability :
50ton/month
Delivery Time :
5~7days
Packaging Details :
Plywood case
Name :
TA1/GR1 Diameter 0.1-10.0mm Pure Titanium Wire Titanium Coil Wire
Material :
Pure titanium
Grade :
Gr1 Gr2
Density :
4.51g/cm3
Purity :
≥99.7%
Diameter :
φ0.8-φ6.0mm
Status :
Annealed
Surface :
Pickled surface ,Bright surface
Description

Classification of titanium wire:


Titanium wire is divided into: titanium wire, titanium alloy wire, pure titanium eyeglass wire, titanium straight wire, pure titanium wire, titanium welding wire, titanium hanger wire, titanium coil wire, titanium bright wire, medical titanium wire, titanium nickel alloy wire.

Specifications:


A. Titanium wire specifications: φ0.8-φ6.0mm
B. Titanium wire specifications for glasses: φ1.0-φ6.0mm special titanium wire
C. Titanium wire specifications: φ0.2-φ8.0mm special for hangers

Standard: ASTM B348,ASTM F136

Status: Annealed state (M) Hot worked state (R) Cold worked state (Y)

Surface: Pickled surface, Bright surface

Titanium wire uses:

Military, medical, sporting goods, glasses, earrings, headwear, electroplating hangers, welding wire and other industries.

Material

Specifications

mm

 State Room-temperature Mechanical properties, No less than,%

σb

Mpa(ksi)

σ0.2

Mpa(ksi)

δ

%

ψ

%
Gr1 3.2-6.35

Annealing

(M)

 240 170 24 30
Gr2 345 275 20 30
Gr3 450 380 18 30
Gr4 550 483 15 25
Gr1 1.6-3.2 240 170 15 ---
Gr2 345 275 12 ---
Gr3 450 330 10 ---
Gr4 550 483 8 ---
Gr1 1.0-1.6 240 --- 12 ---
Gr2 345 --- 10 ---
Gr3 450 --- 8 ---
Gr4 550 --- 6 ---
