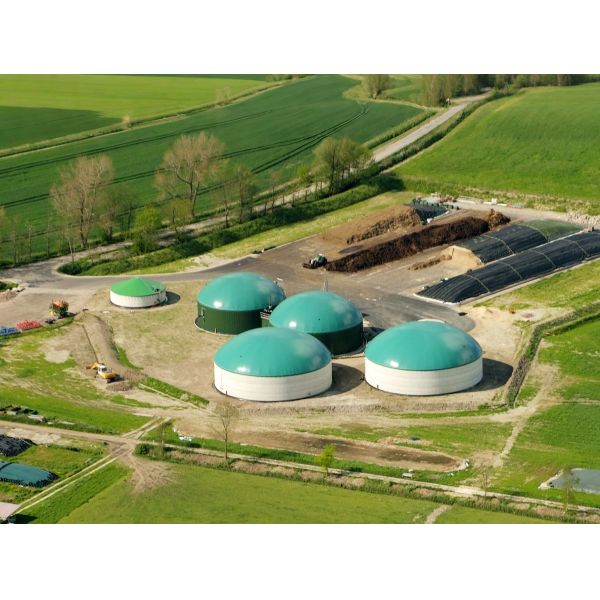

Double Layer Biogas Balloons for Landfill Gas Storage

Product Overview

Double Layer Biogas Balloons for Landfill Gas Storage: The Ultimate Guide to Efficiency and Safety

Landfill gas (LFG)—a mix of methane (CH₄), carbon dioxide (CO₂), and trace pollutants—is both an environmental hazard and a renewable energy goldmine. Traditional gas capture systems often struggle with leaks, pressure fluctuations, and high maintenance costs. Enter the double layer biogas balloon, a cutting-edge solution designed to optimize landfill gas storage while addressing these pain points.

What is a Double Layer Biogas Balloon

A double layer biogas balloon is a gas-holding system with two concentric membranes:
1. Inner membrane: Airtight, chemical-resistant material (e.g., reinforced TPU) to store biogas.
2. Outer membrane: UV-stabilized, abrasion-proof membrane (e.g., PVC-coated polyester) to protect against environmental stressors.

The space between the layers acts as a buffer zone, enabling pressure regulation and leak detection—a critical feature for landfill gas, which often contains corrosive compounds like hydrogen sulfide (H₂S).

Why Landfills Need Double Layer Biogas Balloons

Landfill gas management faces unique challenges:

- Methane Emissions: CH₄ is 28–36x more potent than CO₂ as a greenhouse gas.
- Gas Composition Variability: LFG composition shifts as waste decomposes.
- Regulatory Compliance: Governments mandate methane capture rates (e.g., U.S. EPA’s Landfill Methane Outreach Program).

A double layer system mitigates these risks by:
- Preventing Leaks: Dual membranes reduce gas loss by 60–80% compared to single-layer designs.
- Enabling Real-Time Monitoring: Sensors between layers detect punctures or pressure drops.
- Extending Lifespan: Outer membrane shields the inner membrane from UV rays, wind abrasion, and debris.

Technical Specifications: Double Layer vs. Single Layer Biogas Balloons

Implementation Steps for Landfill Gas Storage

1. Site Assessment:
- Measure daily gas production (e.g., using flow meters).
- Test gas composition (CH₄/CO₂ ratio, H₂S levels).

2. Balloon Sizing:
- Choose capacity based on peak gas output (e.g., 500 m³ for a 50-ton/day landfill).

3. Installation:
- Prepare a leveled, debris-free foundation.
- Anchor the balloon with ground screws or concrete weights.

4. Integration:
- Connect to gas collection wells and purification systems.
- Install pressure relief valves and IoT monitoring devices.

Case Study: Reducing Emissions in a Brazilian Landfill

A landfill in São Paulo replaced its aging single-layer balloons with double layer systems. Results after 18 months:
- Methane Capture Rate: Increased from 68% to 92%.
- Operational Costs: Fell by 35% due to reduced maintenance.
- ROI: Achieved in 3.2 years through carbon credit sales and energy generation.

FAQs About Double Layer Biogas Balloons

Q1: Can this system handle high H₂S concentrations (＞1,000 ppm)?
Yes. The special coating of inner membrane can withstand Max. H₂S concentration 10,000 ppm.

Q2: Are double layer balloons suitable for earthquake-prone areas?
Yes. Flexible membranes absorb ground movement better than rigid tanks. Anchor with geotextile straps for added stability.

Q3: What happens during extreme weather (e.g., hurricanes)?
Deflate the balloon temporarily and cover it with storm-resistant tarps. Most systems withstand winds up to 150 km/h.

Future Trends in Landfill Gas Storage

1. Smart Balloons: Through the PLC control system, real-time monitoring of the gas balloon's operating conditions is achieved, and potential problems can be identified and reported immediately.
2. Hybrid Systems: Solar-powered compressors to optimize gas storage pressure.
3. Circular Economy: Recycling decommissioned membranes into construction materials.

Conclusion

Double layer biogas balloons are revolutionizing landfill gas storage by merging reliability, regulatory compliance, and environmental stewardship. For landfill operators, municipalities, and renewable energy developers, adopting this technology isn’t just a sustainability win—it’s a financially sound strategy to monetize waste while slashing emissions. By prioritizing innovation and lifecycle efficiency, double layer systems position landfills as key players in the global energy transition.

Product Show
