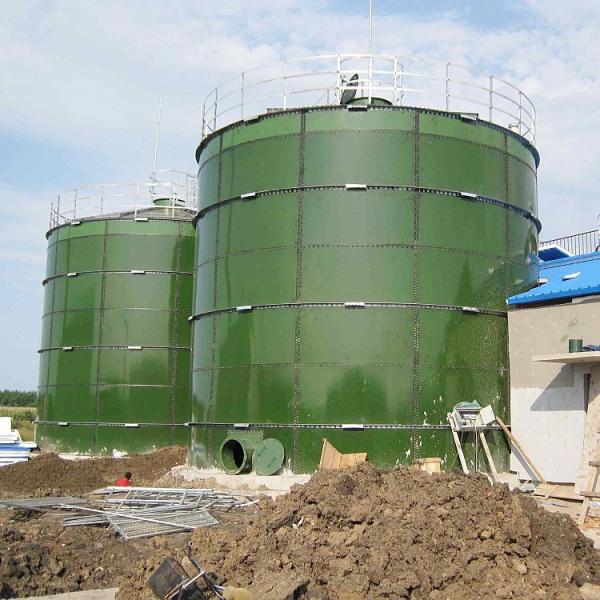

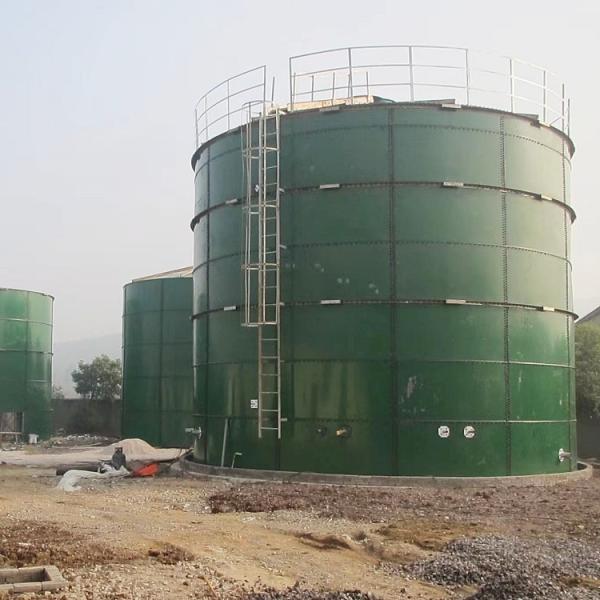

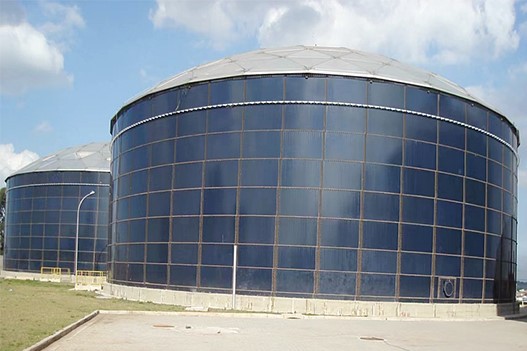

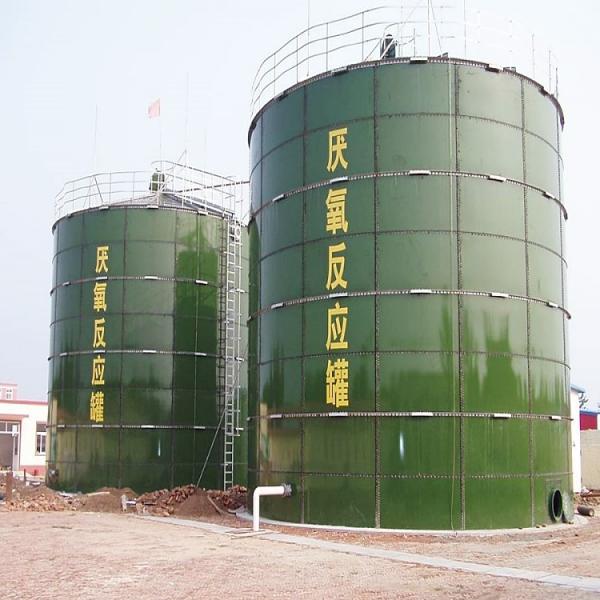

Biogas Digester Bolted Steel Tank , Anti Rust Fiberglass Steel Bolted Storage Tanks
Biogas Digester Bolted Steel Tank , Anti Rust Fiberglass Steel Bolted Storage Tanks
Specifications
Corrosion Integrity :
Excellent
Capactiy Available :
20 M3 To 20,000 M3
Design Life :
30 Years
Feature :
Eco-Friendly, Durability
Tank Body :
Glass Fused To Steel
Place of Origin :
China
Brand Name :
MDS
Certification :
CE, ISO9001:2015
MOQ :
1 set
Price :
Please contact us
Packaging Details :
Standard export wooden box
Delivery Time :
5~60 days
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
20 sets per month
Description

Features

Introduction of bolt steel tank for biogas digester

Bolted steel tanks for biogas digesters are an efficient system for converting biodegradable waste into useful biogas for cooking, lighting, heating and power generation. This bolt steel tank for biogas digester is made of fiberglass steel material, which has the characteristics of anti-rust, anti-corrosion and stable performance. In order to make the steel tank more stable and not easy to tilt and collapse, we use bolts to connect and stabilize the steel tank during construction. This design installation and operation is very convenient, can reduce the cost of installation and construction time, save labor costs, shorten the construction period.

Made of fiberglass:

With anti-rust, anti-corrosion, stable performance characteristics, durable, warranty 30 years.

Bolted link design

This design installation and operation is very convenient, can reduce the cost of installation and construction time, save labor costs, shorten the construction period.

Biogas Digester Bolted Steel Tank , Anti Rust Fiberglass Steel Bolted Storage Tanks

Durability

Versatility

Economical

Friendly

Technical specification

Coating Color

Dark Blue, Dark Green Or Customized

Coating Thickness

0.25-0.45mm

Acid And Alkalinity Proof

Standard PH 3-11, Special PH 1-14

Adhesion

3.450N/cm

Hardness

6.0 (mohs)

Service Life

≥30 Years

Holiday Test

>1500v

Permeability

Gas Liquid Impermeable

Easy To Clean

Smooth, Anti-adhesion, Glossy, Inert

Elasticity

Same as steel plate, about 500KN/mm

Corrosion Resistance

Excellent, suitable for wastewater, concentrated brine, sea water, high sulfur crude oil, salt spray, organic and inorganic compounds, etc.

Biogas Digester Bolted Steel Tank , Anti Rust Fiberglass Steel Bolted Storage Tanks
purified water storage bolted steel tank
Biogas Digester Bolted Steel Tank , Anti Rust Fiberglass Steel Bolted Storage Tanks
bolted steel edible oil storage tank

Biogas bolt steel tank working principle:
The system works by using bacteria to break down organic waste such as food scraps, animal waste and sewage into methane gas. The gas is then collected and transported to a storage tank where it can be stored for later use.

Bolted steel tanks for biogas digesters help reduce greenhouse gas emissions. Methane is a potent greenhouse gas that is released when organic waste is left to decompose in landfills. By diverting organic waste to biogas digesters, we can significantly reduce the amount of methane released into the atmosphere. This process not only helps to reduce waste, but also provides a clean and renewable source of sustainable energy.

Biogas Digester Bolted Steel Tank , Anti Rust Fiberglass Steel Bolted Storage Tanks

Accessories of bolted steel tank as digester

MONDES bolted tanks can supply all accessories and fittings e.g. pipes, mixers and stirrers, galleries, platforms, bridges, manways, heating- and cooling-coils, insulation and cladding, spiral staircases, walkways, bridges and ladders associated with the tanks.

●Insulation and Cladding

●Stairs and Steps

●Galleries and Platforms

●Flanges and Extensions

●Mixers and Stir up

●Extended Accessories

Insulation tank shell, insulation roof, trapezoid sheet cladding, flat sheet cladding

Biogas Digester Bolted Steel Tank , Anti Rust Fiberglass Steel Bolted Storage Tanks
