Glass Fused To Steel Dringking Water Bolted Tank for Municipal Water Storage System

Product Description

The Glass Fused To Steel Dringking Water Bolted Tank for Municipal Water Storage System is a specialized storage solution designed for long-term durability and exceptional corrosion resistance. This innovative tank is constructed using specially made titanium alloy steel plates that undergo rigorous pre-treatment processes. Both sides of these steel plates are coated with multiple layers of an inorganic, glass-like material. The coating is then subjected to high-temperature firing, creating a strong bond between the enamel and the steel substrate. This results in a new type of composite material that significantly enhances the tank's performance.

Material Composition and Properties

1. **Titanium Alloy Steel Plates**: The base material of GFS tanks is high-strength titanium alloy steel, known for its superior mechanical properties. Titanium alloys offer enhanced strength-to-weight ratios, making them ideal for constructing robust and lightweight tanks. These plates undergo thorough cleaning and surface preparation before the application of the enamel coating.

2. **Inorganic Glass-Like Coating**: The multi-layer enamel coating applied to both sides of the steel plates provides several critical benefits:
- **Corrosion Resistance**: The enamel forms a protective barrier against corrosive elements, ensuring the tank remains intact even in harsh environments.
- **Chemical Resistance**: The coating can withstand exposure to strong acids and alkalis, as well as exhibit excellent wear resistance. This makes it suitable for storing a wide range of substances, from freshwater to aggressive chemicals.
- **Temperature Stability**: The high-temperature firing process ensures that the enamel maintains its integrity under varying temperature conditions, enhancing the tank's overall durability.

Structural Design and Performance

1. **Top Cover Design**: The top cover of the Glass Fused To Steel Dringking Water Bolted Tank for Municipal Water Storage System is engineered to withstand specific pressure levels, typically up to 5 kPa. This design ensures the tank can handle internal pressures without compromising structural integrity, making it suitable for various applications.

2. **Customization and Flexibility**: One of the key advantages of GFS tanks is their customizable nature. They can be tailored to meet different specifications and performance requirements, ranging from small-scale projects of 80 cubic meters to large industrial installations of up to 20,000 cubic meters. This flexibility allows customers to optimize storage capacity and functionality based on their specific needs.

Installation and Construction

One of the standout features of GFS drinking water bolted tanks is their rapid installation process. Key advantages include:

- **Fast Installation Speed**: The modular design enables quick assembly, significantly reducing construction time compared to traditional methods.
- **Short Construction Period**: With minimal site preparation required, the tanks can be installed efficiently, even in challenging environments like severe cold regions.
- **Low Site Requirements**: The construction process is adaptable and can be carried out in various locations without extensive site modifications.
- **Industrialized Production**: High-standard factory production ensures consistent quality control, leading to reliable and durable tanks.

Aesthetic and Maintenance Benefits

1. **Beautiful Appearance**: The smooth and lustrous enamel surface not only enhances the visual appeal of the tank but also contributes to the overall aesthetics of the project site.
2. **Minimal Maintenance**: Due to the robust nature of the enamel coating, the tank requires minimal maintenance over its service life, which can exceed 30 years. This reduces operational costs and ensures long-term reliability.

Main Technical Parameter

Applications and Versatility

GFS drinking water bolted tanks find extensive use across multiple industries due to their versatile properties:

• Food-Grade Drinking Water Storage: Ensuring safe and hygienic storage of potable water, meeting stringent health and safety standards.
• Wastewater Treatment: Handling wastewater and effluent storage, where the tank's chemical resistance is crucial.
• Biogas Engineering: Storing biogas and related by-products, maintaining optimal conditions for anaerobic digestion processes.
• Dry Bulk Material Storage: Safely storing dry bulk materials such as grains, minerals, and chemicals.
• Petrochemical Industry: Providing reliable storage solutions for gases, liquids, and solids, including corrosive substances.
• The enamel coating on GFS plates can withstand a broad pH range. Standard enamel can endure pH values between 3 and 11, while specialized coatings can handle extreme pH levels from 1 to 14. This versatility allows the tanks to store general freshwater, wastewater, waste liquids, and dry bulk cargo effectively.

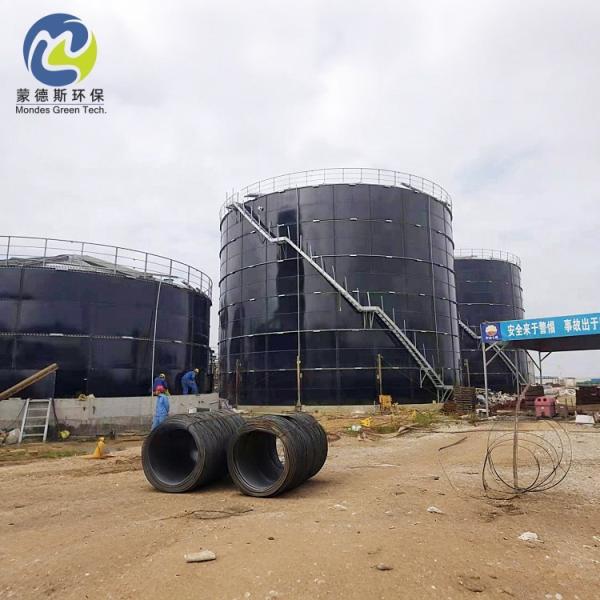

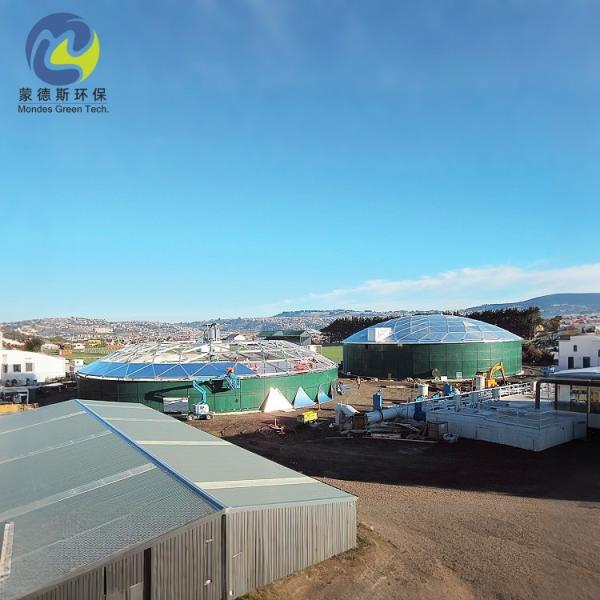

Product Show
