600 Watt Photovoltaic Solar Panels
600 Watt Photovoltaic Solar Panels
600 Watt Photovoltaic Solar Panels
600 Watt Photovoltaic Solar Panels
600 Watt Photovoltaic Solar Panels
600 Watt Photovoltaic Solar Panels
600 Watt Photovoltaic Solar Panels
600 Watt Photovoltaic Solar Panels
Specifications
Place of Origin :
CHINA
Brand Name :
OEM
Certification :
ISO9001, CE, SGS
Supply Ability :
10000PCS
Packaging Details :
Multiple packaging
MOQ :
Negotiable
Price :
Negotiation
Delivery Time :
10-15 working days
Payment Terms :
T/T, L/C, T/T, Western Union
Type :
600w mono solar panel, Standard Solar Panel
Size :
1956*1620*45mm
Front cover :
3.2 mm Coated Tempered Glass
Back :
TPT
Frame :
Aluminum Alloy
Power tolerance :
0~+3%
Junction Box :
MC4 connector TPT back sheet
Efficiency :
21.24%
Voltage :
60v
Description

600 Watt Photovoltaic Solar Panels

Characteristics

Type No.

HT-M600W-120P

Size

1956*1620*45mm

No.Cells

120(10*12)pcs

Cell Efficiency

18.5%-21.5%

Cell Dimension

Mono solar cells 156*156mm

Peak Power

600w

Maximum Power Voltage(Vmp)

63.6V

Maximum Power Current(Imp)

9.23A

Open Circuit Voltage(Voc)

74.3V

Short Circuit Current(Isc)

9.69A

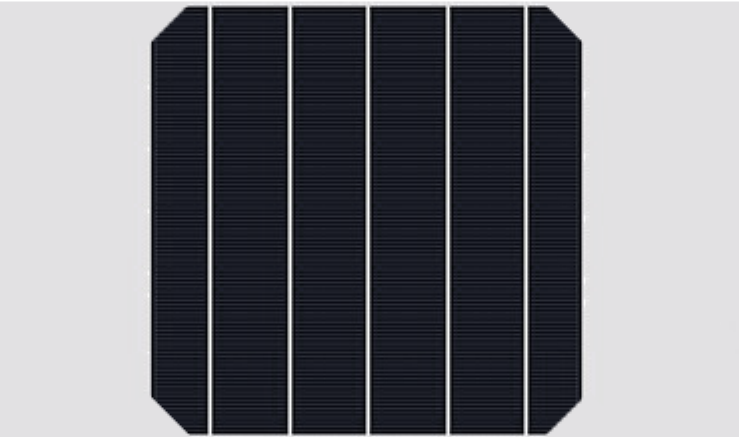

1. Mono solar cell

1) Efficient PV conversion, stable performance
2) Unique etching process can increase the short-circuit current of the solar cell
3) Advanced PECVD technology provides well-proportioned navy blue silicon nitride anti-reflection velum
4) Screen printing patterns are accurate and smoothness of the electrode is improved thus making the cell easier for welding and laser cutting

2. Frame

1) High quality, strictly quality inspection during production and whole inspection before package
2) Hundreds of standard designs can be available and supplied
3) Simple and easy installation
4) High brightness and hardness
5) Strong coated adhesion
6) Anti-scratch, smoothness

3. Glass

1) High luminousness, high stability, low reflectivity, waterproof and high safety
2) High transparent AR coating ultra clear low iron glass

4. Junction box

1) Power loss less than 0.3Watt
2) Simple, quick and safe installation
3) IP65:the innovative sealing design, dust-proof and water-proof
4) Strong current and high voltage load capacity
5) Excellent material which meets UL94-V0 fire safety standard for long term outdoor application which it's outstanding and anti-ageing, waterproof and UV-resistance propeties

5. MC4 Connector

1) Highly robustness, UV-Resistance
2) Connector adopts touch and insertion of reed with inner-knob type
3) Auto-lock equipment of male and female points enable connection more easy and reliable
4) Popular figure suits most of field installation
5) Accommodates PV cable with deferent insulation diameters
6) The maximal working current will be changed when fixed with different types of diode

600 Watt Photovoltaic Solar Panels600 Watt Photovoltaic Solar Panels
