Big Size 350 Watt Polycrystalline PV Solar Panels
Big Size 350 Watt Polycrystalline PV Solar Panels
Big Size 350 Watt Polycrystalline PV Solar Panels
Big Size 350 Watt Polycrystalline PV Solar Panels
Big Size 350 Watt Polycrystalline PV Solar Panels
Big Size 350 Watt Polycrystalline PV Solar Panels
Big Size 350 Watt Polycrystalline PV Solar Panels
Big Size 350 Watt Polycrystalline PV Solar Panels
Big Size 350 Watt Polycrystalline PV Solar Panels
Big Size 350 Watt Polycrystalline PV Solar Panels
Specifications
Place of Origin :
CHINA
Brand Name :
OEM
Supply Ability :
10000PCS
Packaging Details :
Multiple packaging
MOQ :
Negotiable
Price :
Negotiation
Certification :
ISO9001, CE, SGS
Delivery Time :
10-15 working days
Payment Terms :
T/T, L/C, T/T, Western Union
Type :
PERC
Size :
1965*992*40 mm
Panel Efficiency :
21.1-21.8%
Product name :
Poly 270-350 W Module
Cell :
Poly
Dimension :
1640*992*35 mm
Featured :
5 busbar solar cell design
Cable Cross Section Size :
4 Square millimeter
No. of cells :
60(6*10)
Junction Box :
IP 67,3 diodes
Connector :
QC4 10-3
OEM Order :
Accptable
Solar panel :
Poly 270-350 W
Description

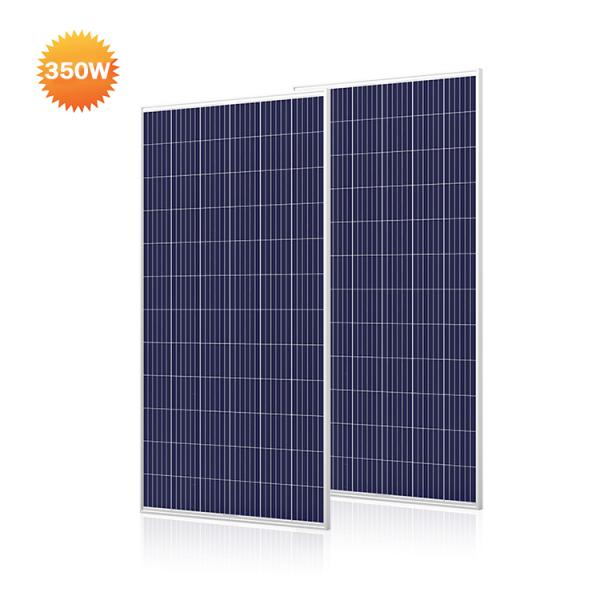

Big Size 350 Watt Polycrystalline PV Solar Panels

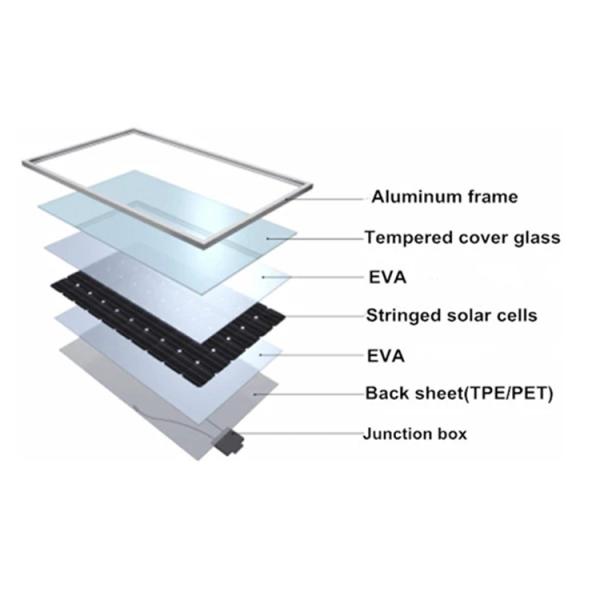

Product Description

Tempered Glass

* 12% Ultra Clear Tempered Glass.

* 30% Lower Reflection

* 3.2mm thickness

* >91% Higher Transmittance

* High mechanical strength

EVA

* >91% Higher Transmittance EVA,

* Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability

Solar Cells

* High-Efficiency PERCIUM Cells

* 93 Fingers PV Cells, Anti-Pid

* Appearance Consistency

Frame

* Aluminum Alloy Frame

* 120N Tensile Strength Frame

* 110% Seal-lip Design Glue Injection

* Black/Silver Optional

Solar Juction Box

* IP67 Waterproof, Closed

* 4mm2, 6mm2 Wire Size Range

* -40 ℃ to +85 ℃ Temperature Range

* Innovative full-glue-filled junction box

PV Connector

* 4mm2 Qualified cable with PV Connector

* 500N Tensile Strength

Electrical Parameters

Type

HG60M 270

HG60M 275

HG60M 280

Rated Maximum Power (P max)[W]

270

275

280

Open Circuit Voltage (Voc)[V]

37.92

38.18

38.43

Maximum Power Voltage (Vmp)[V]

30.72

30.94

31.19

Short Circuit Current (Isc)[A]

9.28

9.36

9.44

Maximum Power Current (Imp)[A]

8.79

8.89

8.98

Module Efficiency [%]

16.5

16.9

17.2

Power Tolerance

0~+5 W

Temperature Coefficient of Isc(α_Isc)

+0.058%/℃

Temperature Coefficient of Voc (β_Voc)

-0.330%/℃

Temperature Coefficient of Pmax (γ_Pmp) STC

-0.400%/℃

Irradiance 1000W/m², cell temperature 25℃, AM1.5G

Big Size 350 Watt Polycrystalline PV Solar Panels

Big Size 350 Watt Polycrystalline PV Solar Panels

Packing & Delivery

Big Size 350 Watt Polycrystalline PV Solar Panels

Big Size 350 Watt Polycrystalline PV Solar Panels
