CE Certified Monofilament Making Machine For Fishing Line
CE Certified Monofilament Making Machine For Fishing Line
Specifications
Brand Name :
Leap
Model Number :
RS
Certification :
CE/ISO90001
Place of Origin :
CHANGZHOU, CHINA
Material :
HDPE
Capacity :
150kgh
Application :
fishing
Yarn diameter :
0.15-0.35mm
Screw diameter :
90mm
Winder :
336 spindles
Nozzle :
312 holes
Power :
180kw
Description

HDPE Monofilament Making Machine for rope or twin used in fishing 150kgh

Product Description:

1. Extruder: 1 set

(1) Screw diameter: 90mm, Rotation speed of screw: 0～80 rpm.

(2) L:D: 33:1, the screw is suitable for HDPE/PP Virgin.

(3) Manual filter changer or automatic hydraulic filter changer:1 set

(4) Use the pressure automatic feedback system to adjust the screw automatically which could ensure the uniform of yarn.

(5) Material of barrel heater: Cast aluminium with stainless steel insulation layer.

(6) Electric heating round spinneret

(7) Ceramic heating rings for spinneret with SS insulating layer make the heat evenly.

2. Cooling water tank: 1 set

(1) The tank is made by SS 304.

(2) Pushed and pulled in side way, the manual lifting.

3. Seven roller stretching unit A, Reducer ratio 1:33

(1) Seven pieces variable diameter roller

Five rollers are covered with rubber to resist skidding.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

(3) Built-out oil lubrication system which makes the gears runs steady.

4. Hot water tank:1 set

(1) The tank is made by SS 304 with the insulating layer

(2) Double pressure rollers equip with twin cylinder opening device.

5. Seven roller stretching unit B, Reducer ratio 1:11

(1) Seven pieces variable diameter roller, all rollers are coated with hard chrome.

(3) Steel structure box with accurately grind gear makes the rollers run smoothly.

(4) Built-in oil lubrication system which makes the gears runs steady.

6. Waster yarn collectors: 80KG.cm

7. Spindle winder

(1) Cops winder or spool winder.

(2) Winding bobbin: inner diameter 38mm× L 280mm

(3) To-and-fro motor power: inverter control

Parmater:

Screw diameter Φ90mm
Raw material PE Filament size 0.15-0.35mm
Capacity 150Kg/H Filament shape round
Screw L:D 33:1 Stretching unit 2 sets
Screw material 38CrMoALA Winder 336 spindles
Max linear speed 180m/min Instillation power 200-350Kw
Nozzle holes 312 holes Overall size 28×2.8×2.8m

Pictures:

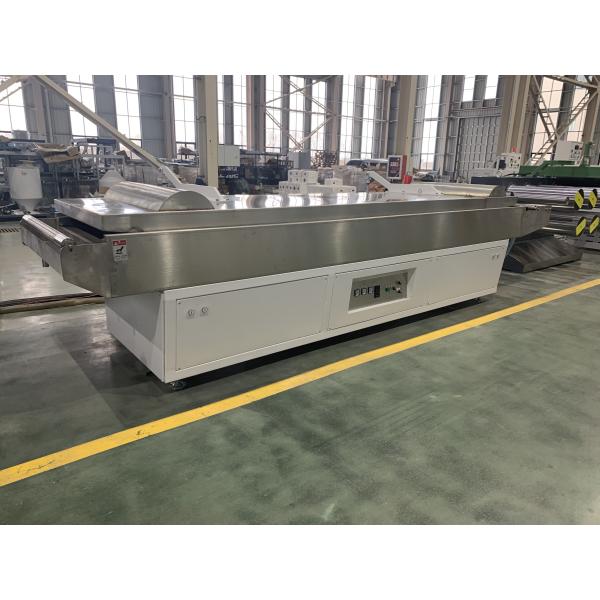

CE Certified Monofilament Making Machine For Fishing Line
