125kgh PE Monofilament Rope Making Machine For Rope And Twin
125kgh PE Monofilament Rope Making Machine For Rope And Twin
Specifications
Brand Name :
Leap
Model Number :
RS
Certification :
CE/ISO90001
Place of Origin :
CHANGZHOU, CHINA
MOQ :
1 set
Delivery Time :
90 working days
Packaging Details :
steel pallets with plastic film
raw material :
PE chips
Capacity :
125kgh
Application :
agriculture
Yarn diameter :
0.12-0.3mm
Screw diameter :
80mm
Winder :
168 spindles
Nozzle :
324 holes
Power :
120kw
Description

PE Monofilament Extruder Machine for rope and twin used in agriculture 125kgh

Product Description:

1. Extruder: 1 set

(1) Screw diameter: 80mm, Rotation speed of screw: 0～72 rpm.

(2) L:D: 33:1, the screw is suitable for PE chips.

(3) Aautomatic screen changer:1 set

(4) Use the pressure feedback system to adjust the screw speed

(5) Material of barrel heater: far infrared

(6) Round spinneret

(7) Ceramic heating rings for spinneret with SS insulating layer make the heat evenly.

2. Quenching tank: 1 set

(1) The tank is made by SS 304.

(2) Pushed and pulled in side way, the manual lifting.

3. First seven roller stretching unit

(1) Seven pieces variable diameter roller, five rubber rollers.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

(3) Built-out oil lubrication system which makes the gears runs steady.

4. Hot water tank:1 set

(1) The tank is made by SS 304 with the insulating layer

(2) Double pressure rollers equip with twin cylinder opening device.

5. Second roller stretching unit

(1) Seven pieces variable diameter roller, all rollers are coated with hard chrome.

(3) Steel structure box with accurately grind gear makes the rollers run smoothly.

(4) Built-in oil lubrication system which makes the gears runs steady.

6. Waster yarn collectors: 80KG.cm

7. Spindle winder

(1) Tapered winder

(2) Winding bobbin as per custome's request.

(3) Tension controlled by inverter.

Parmater:

Screw diameter Φ80mm
Raw material PE Filament size 0.12-0.3mm
Capacity 120Kg/H Filament shape round
Screw L:D 33:1 Stretching unit 2 sets
Screw material 38CrMoALA Winder 168 spindles
Max linear speed 160m/min Instillation power 180Kw
Nozzle holes 324 holes Overall size 27×2.7×2.9m

Pictures:

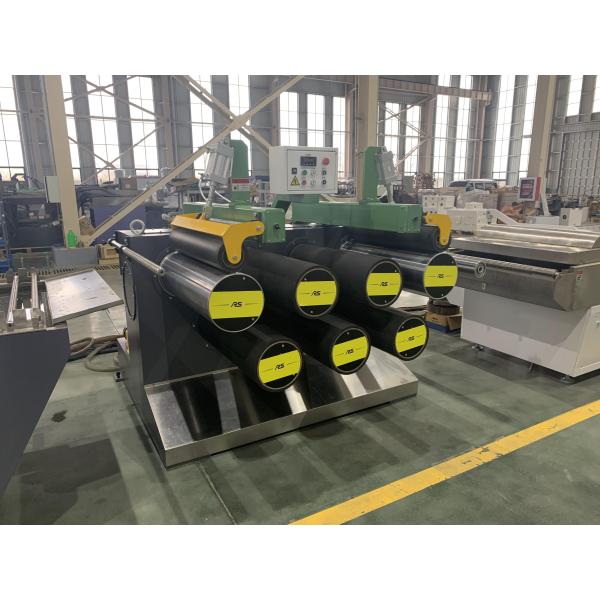

125kgh PE Monofilament Rope Making Machine For Rope And Twin
