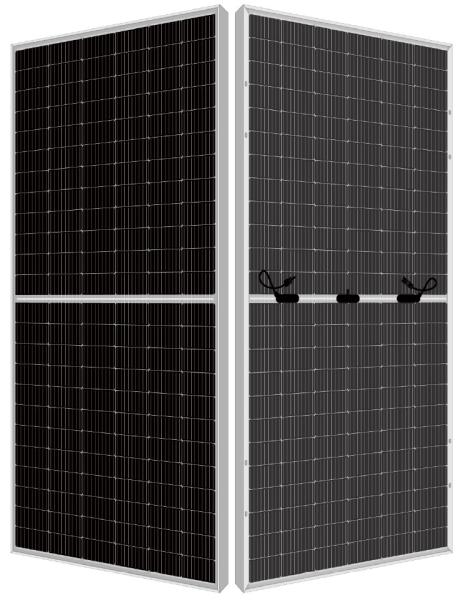

FSM440~FSM450M72H (440W/445W/450W) 144 Half Cells Bifacial MONO PERC PV Module

Electrical Characteristics under STC (Irradiance 1000W/m², Cell Temperature 25℃, Air Mass 1.5)

Mechanical Characteristics

Key Features

• Typical 144PCS of M6 mono PERC half-cut solar cells with combination of series circuit and parallel circuit.
• 9BB Mono Half-Cell adopts PERC technology to guarantee higher output power and higher module efficiency.
• Mono PERC Half-Cell PV module offers better temperature-dependent performance, less shading effect on the energy generation, lower risk of hot spot.
• Excellent Anti-PID performance guarantee limited power degradation for mass production.
• Advanced glass and cell surface textured design ensure excellent performance in low-light environments (e.g. early morning, dusk and cloud, etc).
• Anti-reflective coated glass to increase module efficiency up to 2%, and improve self cleaning ability.
• Total module power increases 5%~20% generally (as per different reflective conditions), lower LCOE and higher IRR.
• Light weight design using transparent mesh backsheet for easy installation and low BOS cost.
• Three channels of EL automatic detections and power test before packing.
• Full production from automatic equipment and production lines in accordance with IEC61215 and IEC61730 standards.
• MES system applied on production lines to ensure products data searchable and traceable.
• Certified to withstand: front side max. 5400Pa; rear side max. 2400Pa.
• 12 years power output no less than 90% and 30 years power output no less than 80% based on about 0.55% annual power degradation.

QC of FINERGY

Quality is the life of FINERGY. The company established a perfect quality control system and implements the whole process quality control of raw materials, production, inspection, warehousing, delivery and etc. Through advanced automatic equipment and production line, it’s able to eliminate human defects and improve products quality. Through digital information systems, we can achieve products quality traceability, provide customers with efficient and quick after-sales service to protect the benefits of customers.

Workshop & Warehouse

Project Installation with FSM445M72HD 445W Bifacial Solar Panels
