325W 330W 335W Monocrystalline Solar Panel 60 Cell 158.75x158.75mm
325W 330W 335W Monocrystalline Solar Panel 60 Cell 158.75x158.75mm
325W 330W 335W Monocrystalline Solar Panel 60 Cell 158.75x158.75mm
325W 330W 335W Monocrystalline Solar Panel 60 Cell 158.75x158.75mm
325W 330W 335W Monocrystalline Solar Panel 60 Cell 158.75x158.75mm
325W 330W 335W Monocrystalline Solar Panel 60 Cell 158.75x158.75mm
325W 330W 335W Monocrystalline Solar Panel 60 Cell 158.75x158.75mm
325W 330W 335W Monocrystalline Solar Panel 60 Cell 158.75x158.75mm
Specifications
Brand Name :
Finergy Tech
Model Number :
330W Mono PERC
Certification :
CE, IEC61215, IEC61730, TUV, CEC
Place of Origin :
CHINA
MOQ :
100PCS
Price :
0.195~0.20 USD per watt
Payment Terms :
T/T, L/C
Supply Ability :
10MW per month
Delivery Time :
10 work days
Packaging Details :
Standard Plywood Packing
Dimension :
1665*1002*35mm
Cell Type :
158.75*158.75mm mono PERC
Cell Brand :
JA, Jinko, Suntech
Applications :
Solar power roof system
Color :
White or full black
Feature :
Plus power tolerance
Description

FSM325~FSM335M60L (325W/330W/335W) Standard MONO PERC PV Module

KEY FEATURES

  • Mono Solar Cell adopts PERC technology to guarantee higher output power and higher module efficiency (up to 20.1%).
  • Excellent Anti-PID performance guarantee limited power degradation for mass production.
  • Advanced glass and cell surface textured design ensure excellent performance in low-light environment.
  • Certified to withstand: wind load (2400 Pa) and snow load (5400Pa)
  • High salt mist and ammonia resistance certified by TUV
  • The first, middle and last three channels of EL automatic detections and power test before packing
  • Barcode, material and parameter binding data traceable, searchable and freezing
  • 12 years product warranty and 25 years linear power warranty

Electrical Characteristics under STC

Module Type FSM325M60L FSM330M60L FSM335M60L
Maximum Power-Pmax (Wp) 325 330 335
Voltage at Maximum Power-Vmp (V) 33.6 33.8 34.0
Current at Maximum Power-Imp (A) 9.68 9.77 9.87
Open Circuit Voltage-Voc (V) 41.1 41.3 41.5
Short Circuit Voltage-Isc (A) 10.20 10.31 10.36
Module Efficiency-ηm (%) 19.5% 19.8% 20.1%
Operating Temperature -40℃ to +85℃
Maximum System Voltage 1000V/1500V DC (IEC)
Power Tolerance 0~+4.99W
Temperature Coefficients of Pmax -0.40%/℃
Temperature Coefficients of Voc -0.31%/℃
Temperature Coefficients of Isc 0.04%/℃

Mechanical Characteristics

Cell Type MONO PERC 158.75×158.75mm
No. of Cells 60 (6×10)
Dimension 1665×1002×35mm
Weight 18 Kg
Junction Box IP68, 3 diodes
Output Cables 4.0mm², 1000mm Length
Connectors MC4 compatible
Packing 31PCS/Pallet, 924PCS/40’HC

Production

325W 330W 335W Monocrystalline Solar Panel 60 Cell 158.75x158.75mm

325W 330W 335W Monocrystalline Solar Panel 60 Cell 158.75x158.75mm

325W 330W 335W Monocrystalline Solar Panel 60 Cell 158.75x158.75mm

Products Packing

325W 330W 335W Monocrystalline Solar Panel 60 Cell 158.75x158.75mm

325W 330W 335W Monocrystalline Solar Panel 60 Cell 158.75x158.75mm

325W 330W 335W Monocrystalline Solar Panel 60 Cell 158.75x158.75mm

Conainer Loading & Delivery

325W 330W 335W Monocrystalline Solar Panel 60 Cell 158.75x158.75mm

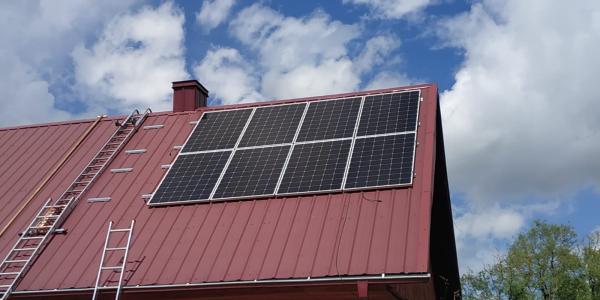

Case Study

325W 330W 335W Monocrystalline Solar Panel 60 Cell 158.75x158.75mm
