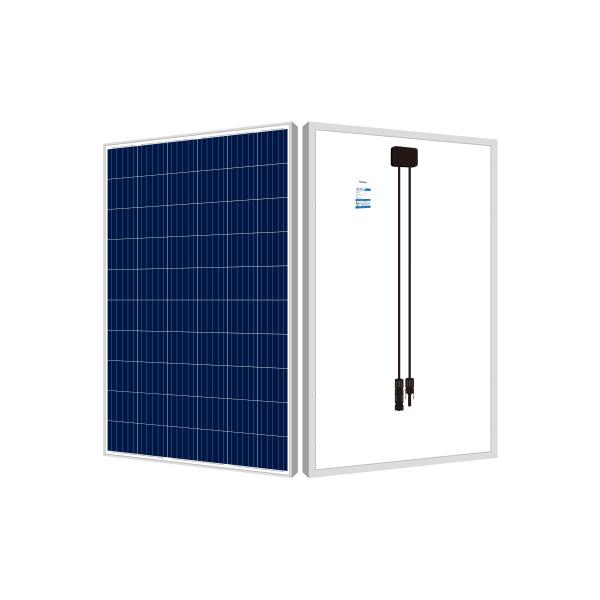

FSM275~FSM285P660 (275W/280W/285W) Standard Poly-Crystalline PV Module
KEY FEATURES
Electrical Characteristics under STC
Module Type | FSM275P660 | FSM280P660 | FSM285P660 |
Maximum Power-Pmax (Wp) | 275 | 280 | 285 |
Voltage at Maximum Power-Vmp (V) | 31.5 | 31.8 | 32.2 |
Current at Maximum Power-Imp (A) | 8.73 | 8.81 | 8.86 |
Open Circuit Voltage-Voc (V) | 38.3 | 38.5 | 38.9 |
Short Circuit Voltage-Isc (A) | 9.17 | 9.23 | 9.28 |
Module Efficiency-ηm (%) | 16.9% | 17.2% | 17.5% |
Operating Temperature | -40℃ to +85℃ | ||
Maximum System Voltage | 1000V/1500V DC (IEC) | ||
Power Tolerance | 0~+4.99W | ||
Temperature Coefficients of Pmax | -0.40%/℃ | ||
Temperature Coefficients of Voc | -0.31%/℃ | ||
Temperature Coefficients of Isc | 0.04%/℃ |
Mechanical Characteristics
Cell Type | Black-Si Poly 157×157mm |
Number of Cells | 60 (6×10) |
Dimension | 1640×992×35mm |
Weight | 19 Kg |
Junction Box | IP68, 3*20A diodes |
Output Cables | 4.0mm², 1100mm Length (Optional) |
Connectors | MC4 compatible |
Packing | 31PCS/Pallet, 924PCS/40’HC |
FAQ of Finergy Solar Panels
Q1: Poly is lower efficiency than Mono PERC, what's the competition advantage?
A: Yes, it's the truth that poly efficiency is about 10%~15% lower than mono PERC. It depends on the silicon material exactly. But, the price of polycrystalline solar panel is 10%~15% lower than mono PERC. For large scale ground mounted solar PV plants, it's available for the investor to save cost.
Q2: Is it available to OEM for us?
A: Both OEM and ODM are acceptable for Finergy. We had rich experience to OEM/ODM.
Q3: What's the payment terms?
A: Finergy is only available to accept 100% TT deposit for sample orders. For whole container quantity business, Finergy requires 20%~30% TT deposit, the balance payment paid via TT or LC against copy of BL.
Q4: What's the requirement to be the distributor?
A: Finergy develops distributors in different countries or regions. We require yearly sales capacity for distributors. If you're interested, welcome to contact with our sales directly for details comminucation.
