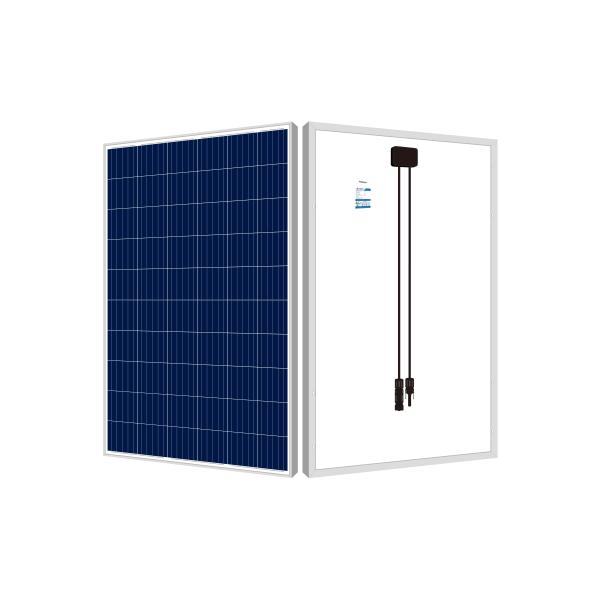

275Wp 270Wp 280Wp Poly Crystal Solar Cell 30V 60 Cells 1640×992×35mm
275Wp 270Wp 280Wp Poly Crystal Solar Cell 30V 60 Cells 1640×992×35mm
275Wp 270Wp 280Wp Poly Crystal Solar Cell 30V 60 Cells 1640×992×35mm
275Wp 270Wp 280Wp Poly Crystal Solar Cell 30V 60 Cells 1640×992×35mm
275Wp 270Wp 280Wp Poly Crystal Solar Cell 30V 60 Cells 1640×992×35mm
275Wp 270Wp 280Wp Poly Crystal Solar Cell 30V 60 Cells 1640×992×35mm
275Wp 270Wp 280Wp Poly Crystal Solar Cell 30V 60 Cells 1640×992×35mm
275Wp 270Wp 280Wp Poly Crystal Solar Cell 30V 60 Cells 1640×992×35mm
Specifications
Brand Name :
Finergy Tech
Model Number :
280W poly cystalline solar panel
Certification :
CE, IEC61215, IEC61730, TUV, CQC
Place of Origin :
WUXI, CHINA
MOQ :
136PCS
Price :
0.20~0.22 USD per watt
Payment Terms :
T/T, L/C at sight
Supply Ability :
5MW per month
Delivery Time :
One week
Packaging Details :
31PCS/pallet, 68PCS/stack
Solar Cell :
High efficiency 5BB poly crystalline solar cell
Junction Box :
IP68 rated box with MC4 compatible connectors for easy connection
Production :
Full production from automatic equipment and production line
Selling Point :
Typical light weight design with affordable price
Application :
Residential, commercial and industrial solar PV systems
Warranty :
12 years workmanship and 30 years linear power damping guarantee
Description

FSM275~FSM285P60 (275W/280W/285W) 60*5BB Poly Crystalline Solar Cell PV Module

Electrical Characteristics under STC (STC: Irradiance 1000W/㎡, Cell Temperature 25℃, Air Mass 1.5)

Module Type FSM275P60 FSM280P60 FSM285P60
Maximum Power-Pmax (Wp) 275 280 285
Voltage at Maximum Power-Vmp (V) 31.5 31.8 32.2
Current at Maximum Power-Imp (A) 8.73 8.81 8.86
Open Circuit Voltage-Voc (V) 38.3 38.5 38.9
Short Circuit Voltage-Isc (A) 9.17 9.23 9.28
Module Efficiency-ηm (%) 16.9% 17.2% 17.5%
Operating Temperature -40℃ to +85℃
Maximum System Voltage 1000V/1500V DC (IEC)
Power Tolerance 0~+4.99W
Temperature Coefficients of Pmax -0.40%/℃
Temperature Coefficients of Voc -0.31%/℃
Temperature Coefficients of Isc 0.04%/℃

Mechanical Characteristics

Cell Type 5BB Poly Crystalline 157×157mm
No. of Cells 60 (6×10)
Dimension 1640×992×35mm
Weight 17.5 Kg
Junction Box IP68 rated, 3*20A diodes
Output Cables 4.0mm², 1100mm Length (Optional)
Connectors MC4 compatible
Packing 31PCS/Pallet, 952PCS/40’HC

Product Information

  • High efficiency 5BB Poly Crystalline Solar Cell adopts new technology to guarantee higher output power and higher module efficiency.
  • Excellent Anti-PID performance guarantee limited power degradation for mass production.
  • High transimission tempered glass and cell surface textured design ensure excellent performance in low-light environment.
  • Graphene coated on surface of glass to let dusts falling down with rain to increase power generation and product lifespan.
  • Certified to withstand: front side max. 5400Pa, rear side max. 2400Pa.
  • IP68 rated junction box with schottky diodes to protect the whole PV system damage.
  • MC4 compatiable connectors for solar system easy installation.
  • MES system applied together with production line to ensure product data searchable and traceable.
  • 12 years product workmanship warranty and 30 years linear power damping warranty.
  • Three times EL inspections and power test before packing.

What we do?

FINERGY is devoted to design, manufacture, develop and sell variety of mono and poly crystalline solar panels. Meanwhile FINERGY is concertrating on wide range of on-grid and off-grid photovoltaic power plants, commercial, residential and industrial integrated solar power generating system.

QC system:

We have excellent QC system, and we are focus each step on processing modules. FINERGY completes rigoros materials testing before and during module production in order to ensure that only the best becomes into modules, each cell is individully inspected and power matched in order to ensure consistent performance among the cells in module array.

Once assembled, each of our PV module undergoes further testing to ensure consistently high quality. Every module is given a complete visual inspection to verify that its appearance meets our standards. Our modules then undergi further testing via EL and flash simulators to ensure accurate minimum power voltage and current rating.

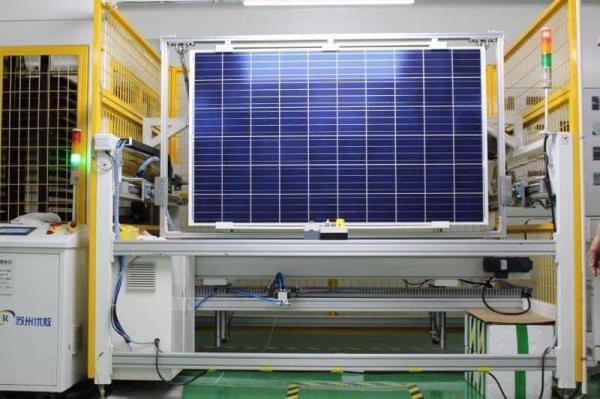

Workshop & Production Line

275Wp 270Wp 280Wp Poly Crystal Solar Cell 30V 60 Cells 1640×992×35mm

Project Reference in 2020

275Wp 270Wp 280Wp Poly Crystal Solar Cell 30V 60 Cells 1640×992×35mm

Solar Exhibition in Europe

275Wp 270Wp 280Wp Poly Crystal Solar Cell 30V 60 Cells 1640×992×35mm
