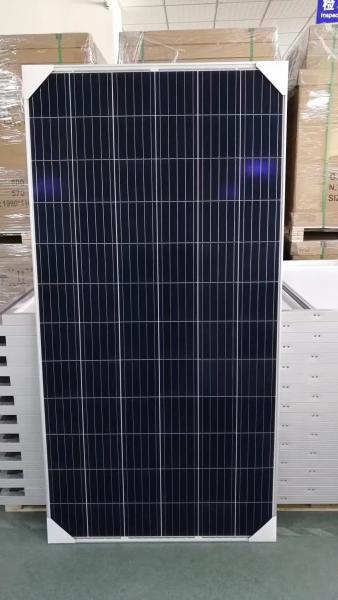

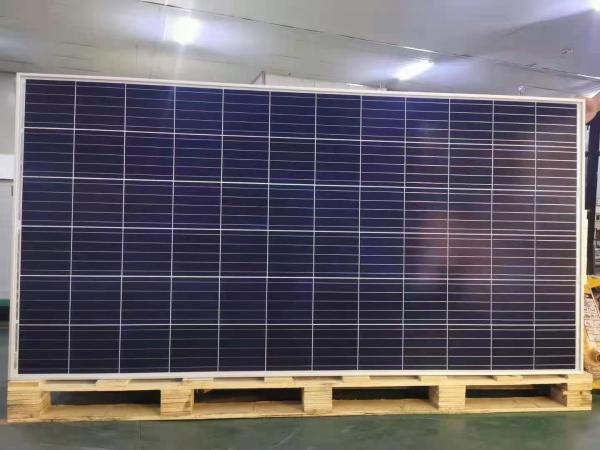

330W 335W 340W Polycrystalline Solar Module 24 Volt 1956×992×35mm
330W 335W 340W Polycrystalline Solar Module 24 Volt 1956×992×35mm
330W 335W 340W Polycrystalline Solar Module 24 Volt 1956×992×35mm
330W 335W 340W Polycrystalline Solar Module 24 Volt 1956×992×35mm
330W 335W 340W Polycrystalline Solar Module 24 Volt 1956×992×35mm
330W 335W 340W Polycrystalline Solar Module 24 Volt 1956×992×35mm
330W 335W 340W Polycrystalline Solar Module 24 Volt 1956×992×35mm
330W 335W 340W Polycrystalline Solar Module 24 Volt 1956×992×35mm
Specifications
Brand Name :
Finergy Tech
Model Number :
330~340W polycrystalline solar panel
Certification :
CE, IEC61215, IEC61730, TUV, CQC
Place of Origin :
WUXI, CHINA
MOQ :
132PCS
Price :
0.195~0.21 USD per watt
Payment Terms :
T/T, L/C at sight, Western Union
Supply Ability :
10MW per month
Delivery Time :
10 work days
Packaging Details :
30PCS/pallet, 66PCS/stack
Material :
5BB polycrystalline solar cell from Tongwei or Candian Solar
Cells Number :
72PCS 157mm poly solar cells in series connection
Advantage :
High efficiency PID free solar panel with low price
Output :
4mm² PV cables with MC4 compatible connectors
Safety Class :
IP68 rated junction box with diodes for electric safety
Warranty :
15 years lifespan and 30 years linear power damping guarantee
Description

FSM330~FSM340P72 (330W/335W/340W) Typical 72 Cells Poly Crystalline Solar PV Module

Electrical Characteristics under STC (STC: Irradiance 1000W/㎡, Cell Temperature 25℃, Air Mass 1.5)

Module Type FSM330P72 FSM335P72 FSM340P72
Maximum Power-Pmax (Wp) 330 335 340
Voltage at Maximum Power-Vmp (V) 37.7 37.9 38.1
Current at Maximum Power-Imp (A) 8.75 8.86 8.92
Open Circuit Voltage-Voc (V) 46.3 46.5 46.6
Short Circuit Voltage-Isc (A) 9.45 9.55 9.64
Module Efficiency-ηm (%) 17.0% 17.3% 17.5%
Operating Temperature -40℃ to +85℃
Maximum System Voltage 1000V/1500V DC (IEC)
Power Tolerance 0~+3%
Temperature Coefficients of Pmax -0.40%/℃
Temperature Coefficients of Voc -0.31%/℃
Temperature Coefficients of Isc 0.04%/℃

Mechanical Characteristics

Cell Type Poly Crystalline 157×157mm
No. of Cells 72 (6×12)
Dimension 1956×992×35mm
Weight 20.5 Kg
Junction Box IP68, 3*20A diodes
Output Cables 4.0mm², 1100mm Length (Optional)
Connectors MC4 compatible (Optional)
Packing 31PCS/Pallet, 748PCS/40’HC

Raw Materials Sourcing

1. Low-iron Tempered Glass

Anti-reflective coating to increase module efficiency up to 2%. Light transmittance improvement more than 3%. New technology adopts on surface to improve self-cleaning ability.

2. Insulation Backsheet

Outstanding weatherproof performance. Low moisture permeability against snail trail defect. Excellent electric insulation for high system voltage up to 1500V. White and black color is optional.

3. Solar Cell

Polycrystalline solar cells from black silicon wafers adopt new technology for higher power efficiency. Stable performance output even in weak light environment. PID free treatment.

4. EVA Film

Light transmittance above 92%. Snail trail prevention treatment. UV resistance against ageing.

5. Junction Box

IP68 protection grade. High quality diodes for electric safety and protection of whole solar power system. 4mm² PV wires with MC4 compatible connectors for easy installation. 1500V system voltage available.

6. Aluminum Frame

Anodic oxidation layer resistant to chemical corrosion. Strong mechanical load resistance up to 5400Pa. Silver and black color is optional.

FAQ of FINERGY Solar Panels

Q1: The efficiency of polycrystalline solar panel is much lower than mono PERC, what's the competition?

A: It's the truth poly is not so high efficiency as mono PERC. But, it improved a lot in the past years. The polycrystalline solar cell efficiency with new technology has exceeded 19.5%. It's most important that polycrystalline solar panel is much cheaper than mono PERC product. As per our price policy, it's around 10% cheaper. It's helpful to the poors to afford solar power in anywhere is rich of sun irradiation.

Q2: What's the MOQ of FINERGY solar panels?

A: For transportation safety, we usually load solar panels vertically on pallets. In this case, it's better for customers to buy full pallet packing quantity. We usually load 30 or 31 pieces on a single pallet. Consider about the container loading, we request MOQ of 4 pallets once.

Workshop Environment

330W 335W 340W Polycrystalline Solar Module 24 Volt 1956×992×35mm

60KW Project Reference with FSM330P72 in Europe

330W 335W 340W Polycrystalline Solar Module 24 Volt 1956×992×35mm
