18V 12v 120w Monocrystalline Solar Panel Off Grid Pv System
18V 12v 120w Monocrystalline Solar Panel Off Grid Pv System
18V 12v 120w Monocrystalline Solar Panel Off Grid Pv System
18V 12v 120w Monocrystalline Solar Panel Off Grid Pv System
18V 12v 120w Monocrystalline Solar Panel Off Grid Pv System
18V 12v 120w Monocrystalline Solar Panel Off Grid Pv System
18V 12v 120w Monocrystalline Solar Panel Off Grid Pv System
18V 12v 120w Monocrystalline Solar Panel Off Grid Pv System
Specifications
Brand Name :
Finergy Tech
Model Number :
120W/18V
Certification :
CE, IEC61215, IEC61730, TUV
Place of Origin :
CHINA
MOQ :
500PCS
Price :
0.22~0.25 per watt
Payment Terms :
T/T, L/C
Supply Ability :
1MW per month
Delivery Time :
10 work days
Packaging Details :
Standard Plywood Packing
Cell From :
JA Solar, Jinko, Trina
Cell Type :
M2(156.75mm) Mono PERC
Junction Box :
IP67 Rated; 2*10A Diodes
Features :
Customized with Optional Accessories
Applications :
solar street lights, pumps and off-grid systems
Warranty :
5 years + 25 years
Description

FSM120~FSM130M636 (120W/130W) Customized Mono PERC PV module

KEY FEATURES

  • 5 Busbar Mono Solar Cell adopts PERC technology to guarantee high performance.
  • Excellent Anti-PID performance guarantee limited power degradation for mass production.
  • Low-iron tempered solar glass with high transparency and cell surface textured design ensure excellent performance in low-light environment.
  • Tested with IEC61215 and IEC61730 standards and TUV approved by SGS.

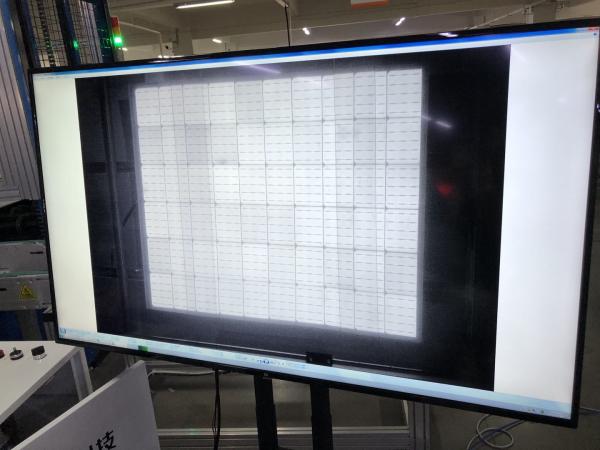

  • 100% EL inspections and power test before packing.
  • Separate trackable barcode on each product.
  • 10 years product warranty and 25 years linear power warranty.
  • Best charging voltage for 12V batteries or off-grid solar PV systems

Electrical Characteristics under STC

Module Type FSM120M636 FSM130M636
Maximum Power-Pmax (Wp) 120 130
Voltage at Maximum Power-Vmp (V) 18.6 18.9
Current at Maximum Power-Imp (A) 6.45 6.88
Open Circuit Voltage-Voc (V) 22.8 23.4
Short Circuit Voltage-Isc (A) 6.97 7.43
Module Efficiency-ηm (%) 17.7 19.2
Operating Temperature -40℃ to +85℃
Maximum System Voltage 1000V/1500V DC (IEC)
Power Tolerance 0~+4.99W
Temperature Coefficients of Pmax -0.40%/℃
Temperature Coefficients of Voc -0.31%/℃
Temperature Coefficients of Isc 0.04%/℃

Mechanical Characteristics

Cell Type MONO PERC 156.75×104mm
No. of Cells 36 (4×9)
Dimension 1020×664×30mm
Weight 8.2 Kg
Junction Box IP67, 2×10A diodes
Output Cables Optional
Connectors Optional

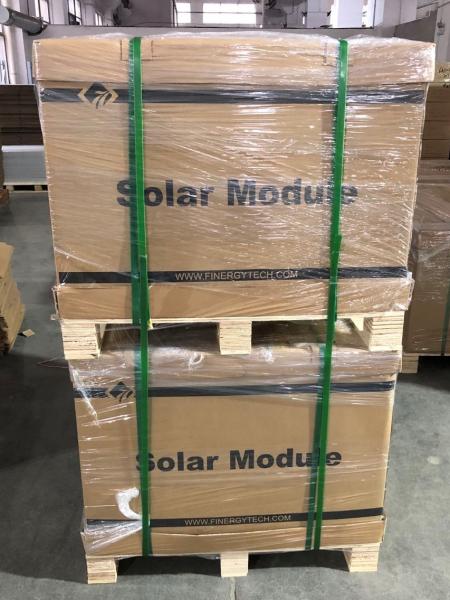

Packing 35PCS/Pallet; 2310PCS/40’HC

FAQ of Finergy

Q1: Why to choose Finergy 120W solar panels?

A: Finergy is a prefessional manufacturer of solar panels with rich experience in this field. Not only the standard solar panels with larger sizes are CE & TUV certificated, but also for the customized small solar panels.

Q2: Are the customized solar panels manually manufactued?

A: Even Finergy customized solar panels are manufactured from automated production lines, including automatical soldering, EL inspection, lamination, power flash test and etc.

Q3: How to connect the solar panels to the off-grid system?

A: Normally, Finergy installs the junction box available to be opened on customized solar panels. Customers can install cables with connectors separately at site. If customers are able to provide the details of accessories, Finergy is willing to install from production line.

Production Display

18V 12v 120w Monocrystalline Solar Panel Off Grid Pv System18V 12v 120w Monocrystalline Solar Panel Off Grid Pv System

Quality Certification

18V 12v 120w Monocrystalline Solar Panel Off Grid Pv System
