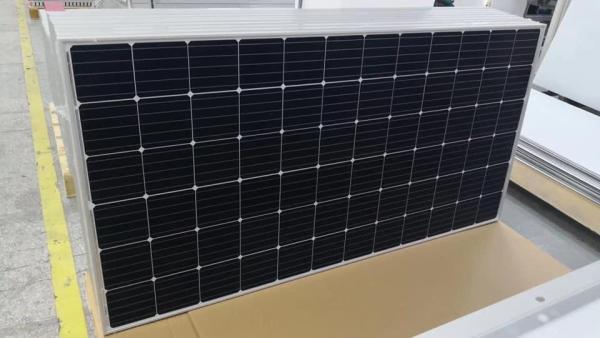

FSM390~FSM400M72L (390W/395W/400W) Standard Mono PERC PV Module
KEY FEATURES
Electrical Characteristics under STC
Module Type | FSM390M72L | FSM395M72L | FSM400M72L |
Maximum Power-Pmax (Wp) | 390 | 395 | 400 |
Voltage at Maximum Power-Vmp (V) | 41.1 | 41.4 | 41.7 |
Current at Maximum Power-Imp (A) | 9.49 | 9.55 | 9.60 |
Open Circuit Voltage-Voc (V) | 49.3 | 49.5 | 49.8 |
Short Circuit Voltage-Isc (A) | 10.12 | 10.23 | 10.36 |
Module Efficiency-ηm (%) | 19.7% | 19.9% | 20.2% |
Operating Temperature | -40℃ to +85℃ | ||
Maximum System Voltage | 1000V/1500V DC (IEC) | ||
Power Tolerance | 0~+4.99W | ||
Temperature Coefficients of Pmax | -0.40%/℃ | ||
Temperature Coefficients of Voc | -0.31%/℃ | ||
Temperature Coefficients of Isc | 0.04%/℃ |
Mechanical Characteristics
Cell Type | G1 MONO PERC 158.75×158.75mm |
No. of Cells | 72 (6×12) |
Dimension | 1979×1002×40mm |
Weight | 21 Kg |
Junction Box | IP68, 3 diodes |
Output Cables | 4.0mm², 1000mm Length |
Connectors | MC4 compatible |
Packing | 29PCS/Pallet, 638PCS/40’HC |
FAQ of Finergy Solar Panels
Q1: What's the advantages of Finergy solar panels?
A: Finergy solar panels are produced through advanced automatic equipments and production lines which can eliminate the human errors. The total production capacity reaches approx. 1GW per year. The products have global quality certificates, such as CE, IEC, TUV and CQC. Finergy provides 12 years product warranty and 25 years output power warranty both to customers.
Q2: Were Finergy solar panels installed on any famous or large scale PV power plant?
A: There're several PV projects used Finergy solar panels. The largest one 15MW was located in West China. The whole project has operated more than 2 years. There're many MW solar power project cases abroad as well.
Q3: What's the condition to be the distributor of Finergy solar panels?
A: Finergy set up distributors in some coutries, such as Korea, Bangladesh, Mexico, etc. If there's no sole distribution agent in your area, it's possible to Finergy. But, the distributor has to achieve the annual sales capacity exactly. Finergy will provide special prices and payment terms to global distributors.
