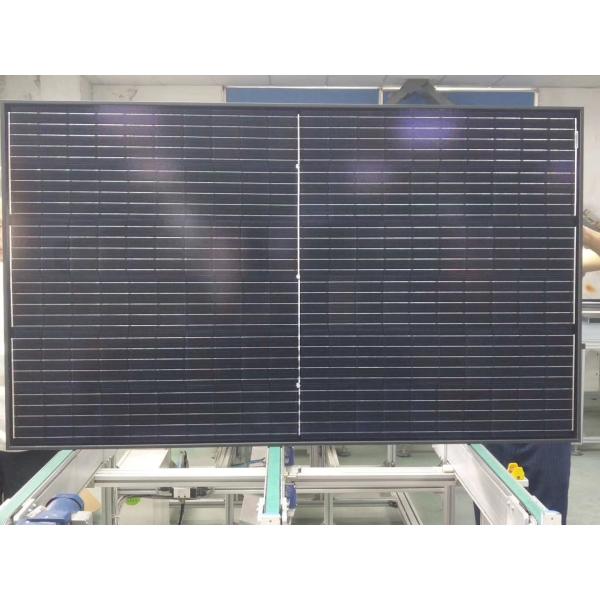

120cell Hcpv Solar Cell 345W
120cell Hcpv Solar Cell 345W
120cell Hcpv Solar Cell 345W
120cell Hcpv Solar Cell 345W
120cell Hcpv Solar Cell 345W
120cell Hcpv Solar Cell 345W
120cell Hcpv Solar Cell 345W
120cell Hcpv Solar Cell 345W
Specifications
Brand Name :
Finergy Tech
Model Number :
335W/340W/345W
Certification :
ISO9001, OHSAS18001, IEC61215, IEC61730, TUV
Place of Origin :
China
MOQ :
100 pieces
Price :
Cheapest
Payment Terms :
T/T, L/C
Supply Ability :
10MW per month
Delivery Time :
10 work day
Packaging Details :
Standard Plywood Packing
Cell :
JA/JINKO MONO PERC 158.75*158.75mm
Technology :
MONO PERC 120(6*20) Series Half Cell
Warranty :
30 years
Power Insurance :
CHUBB/Munich RE
Supplier :
Chinese Manufacturer
Description

FSM335~FSM345M60HL (335W/340W/345W) MONO PERC Half-Cell PV Module

KEY FEATURES

  • 5 Busbar Mono Half-Cell adopts PERC technology to guarantee higher output power and higher module efficiency (up to 20.5%).
  • Mono PERC Half-Cell PV module offers better temperature-dependent performance, less shading effect on the energy generation, lower risk of hot spot.
  • Excellent Anti-PID performance guarantee limited power degradation for mass production.
  • Advanced glass and cell surface textured design ensure excellent performance in low-light environment.
  • Certified to withstand: wind load (2400 Pa) and snow load (5400Pa)
  • High salt mist and ammonia resistance certified by TUV SGS
  • 100% EL inspection and power test before packing
  • 12 years product warranty and 25 years linear power warranty

Electrical Characteristics under STC

Module Type FSM335M60HL FSM340M60HL FSM345M60HL
Maximum Power-Pmax (Wp) 335 340 345
Voltage at Maximum Power-Vmp (V) 34.0 34.2 34.4
Current at Maximum Power-Imp (A) 9.87 9.96 10.04
Open Circuit Voltage-Voc (V) 41.5 41.7 41.9
Short Circuit Voltage-Isc (A) 10.36 10.55 10.64
Module Efficiency-ηm (%) 19.9% 20.1% 20.5%
Operating Temperature -40℃ to +85℃
Maximum System Voltage 1000V/1500V DC (IEC)
Power Tolerance 0~+4.99W
Temperature Coefficients of Pmax -0.350%/℃
Temperature Coefficients of Voc -0.289%/℃
Temperature Coefficients of Isc 0.048%/℃

Mechanical Characteristics

Cell Type MONO PERC 158.75×79.375mm
No. of Cells 120 (60×2)
Dimension 1684×1002×35mm
Weight 19 Kg
Junction Box IP68, 3 diodes
Output Cables 4.0mm², 500mm Length
Connectors MC4 compatible
Packing 33PCS/Pallet, 858PCS/40’HC

Structure of PV Module

120cell Hcpv Solar Cell 345W

Quality Inspection At Site

120cell Hcpv Solar Cell 345W

Packing & Delivery

120cell Hcpv Solar Cell 345W120cell Hcpv Solar Cell 345W

Projects

120cell Hcpv Solar Cell 345W120cell Hcpv Solar Cell 345W120cell Hcpv Solar Cell 345W
