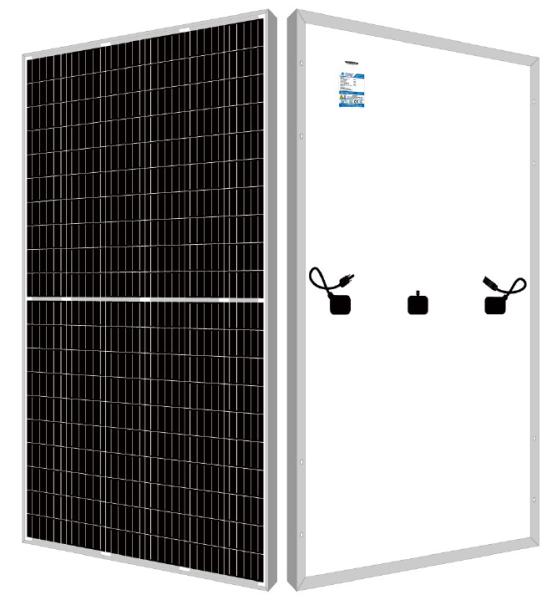

PERC Monocrystalline Silicon Solar Cells 345W 120 Cell 158.75×79.375mm
PERC Monocrystalline Silicon Solar Cells 345W 120 Cell 158.75×79.375mm
PERC Monocrystalline Silicon Solar Cells 345W 120 Cell 158.75×79.375mm
PERC Monocrystalline Silicon Solar Cells 345W 120 Cell 158.75×79.375mm
PERC Monocrystalline Silicon Solar Cells 345W 120 Cell 158.75×79.375mm
PERC Monocrystalline Silicon Solar Cells 345W 120 Cell 158.75×79.375mm
PERC Monocrystalline Silicon Solar Cells 345W 120 Cell 158.75×79.375mm
PERC Monocrystalline Silicon Solar Cells 345W 120 Cell 158.75×79.375mm
Specifications
Brand Name :
Finergy Solar
Model Number :
345W mono PERC half cell PV module
Certification :
CE, IEC61215, IEC61730, TUV, CQC
Place of Origin :
WUXI, CHINA
MOQ :
132PCS
Price :
0.22~0.25 per watt
Payment Terms :
T/T, L/C at sight
Supply Ability :
10MW per month
Delivery Time :
10 work days
Packaging Details :
31PCS/pallet, 66PCS/stack
Cell Supplier :
Jinko, JA, TW Solar, URECO
Material :
Gallium doped G1 sized mono PERC half cells
Production :
Half cells assembly from automatic equipment and line
Features :
PID free and power generation even half panel is shaded
Application :
Residential, commercial and industrial
Warranty :
12 years workmanship and 30 years power damping guarantee
Description

FSM335~FSM345M60HL (335W/340W/345W) MONO PERC Half-Cell PV Module

Electrical Characteristics under STC

Module Type FSM335M60H FSM340M60H FSM345M60H
Maximum Power-Pmax (Wp) 335 340 345
Voltage at Maximum Power-Vmp (V) 34.0 34.2 34.4
Current at Maximum Power-Imp (A) 9.87 9.96 10.04
Open Circuit Voltage-Voc (V) 41.5 41.7 41.9
Short Circuit Voltage-Isc (A) 10.36 10.55 10.64
Module Efficiency-ηm (%) 19.9% 20.1% 20.5%
Operating Temperature -40℃ to +85℃
Maximum System Voltage 1000V/1500V DC (IEC)
Power Tolerance 0~+4.99W
Temperature Coefficients of Pmax -0.350%/℃
Temperature Coefficients of Voc -0.289%/℃
Temperature Coefficients of Isc 0.048%/℃

Mechanical Characteristics

Cell Type MONO PERC 158.75×79.375mm
No. of Cells 120 (6×20)
Dimension 1684×1002×35mm
Weight 19 Kg
Junction Box IP68, 3*20A diodes
Output Cables 4.0mm², 500mm Length (Optional)
Connectors MC4 compatible
Packing 31PCS/Pallet, 858PCS/40’HC

Technical Description

  • Gallium doped 158.75mm mono PERC half cell to guarantee less internal power loss and higher module efficiency (up to 20.5%).
  • Half-Cell series PV module offers better temperature-dependent performance, less shading effect on the energy generation, lower risk of hot spot.
  • Excellent Anti-PID performance guarantee limited power degradation for mass production.
  • Advanced glass and cell surface textured design ensure excellent performance in low-light environment.
  • Split junction boxes with MC4 compatible connectors are easier for PV system installation.
  • Mechanical load with high strength: front side max. 5400Pa and rear side max. 2400Pa.
  • ERP, MES, WMS and CRM information systems combined together with production line to ensure product data searchable and traceable.
  • Three channels of EL automatic detections and power test before packing.
  • 12 years product workmanship warranty and 30 years linear power warranty.

About Finergy

Wuxi Finergy Tech Co.,Ltd. is one of the pioneering manufacturers of solar panels from China. The workshop was set up with advanced automatic equipment and production lines since 2016. The products cover both mono and poly crystalline solar panels, with a total production capacity 800MW per year. The solar panels produced by Finergy have been exported to more than 40 coutries of the world.

Quality Control of Finergy

Quality is the life of Finergy. The company established a perfect quality control system and implements the whole process quality control of raw materials, production, inspection, warehousing, delivery and etc. Through advanced automatic equipment and production line, it’s able to eliminate human defects and improve products quality. Through digital information systems, we can achieve products quality traceability, provide customers with efficient and quick after-sales service to protect the benefits of customers.

International PV exhibition

PERC Monocrystalline Silicon Solar Cells 345W 120 Cell 158.75×79.375mm

Production Workshop

PERC Monocrystalline Silicon Solar Cells 345W 120 Cell 158.75×79.375mm

Warehousing and Shipment

PERC Monocrystalline Silicon Solar Cells 345W 120 Cell 158.75×79.375mm
