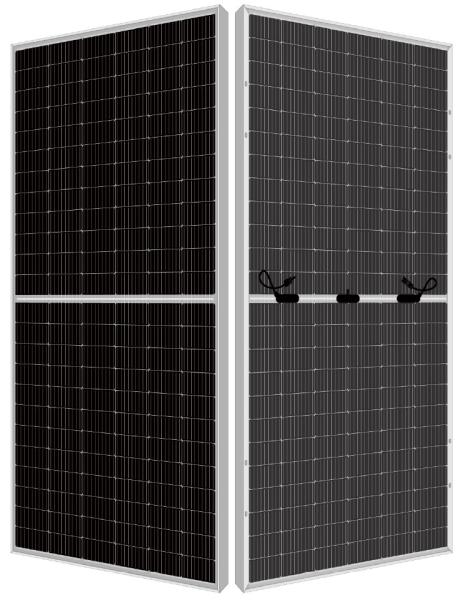

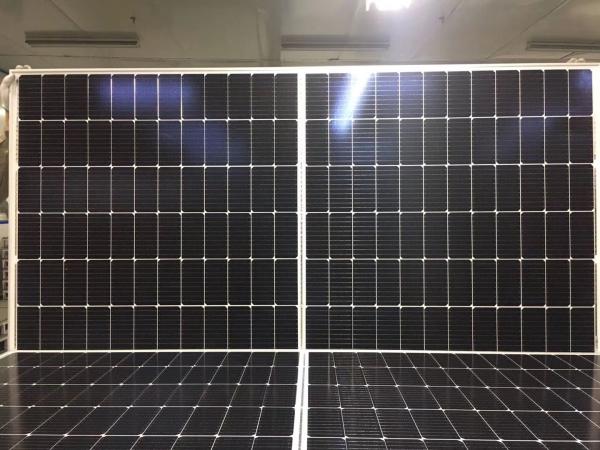

430W 435W 440W Double Glass Mono Perc Solar Panels Half Cut PV 9BB 166mm
430W 435W 440W Double Glass Mono Perc Solar Panels Half Cut PV 9BB 166mm
430W 435W 440W Double Glass Mono Perc Solar Panels Half Cut PV 9BB 166mm
430W 435W 440W Double Glass Mono Perc Solar Panels Half Cut PV 9BB 166mm
430W 435W 440W Double Glass Mono Perc Solar Panels Half Cut PV 9BB 166mm
430W 435W 440W Double Glass Mono Perc Solar Panels Half Cut PV 9BB 166mm
Specifications
Brand Name :
Finergy Tech
Model Number :
440W Bifacial PV Module
Certification :
CE, IEC61215, IEC61730, TUV, CEC
Place of Origin :
CHINA
MOQ :
100PCS
Price :
0.22~0.25 per watt
Payment Terms :
T/T, L/C
Supply Ability :
10MW per month
Delivery Time :
10 work days
Packaging Details :
Standard Plywood Packing
Cell Brand :
LONGi, TongWei, Jinko, JA
Cell Description :
9BB half cell (166*83mm)
Cell Number :
144PCS (72*2)
Color :
White or Transparent
Characteristic :
5%~25% more power generation
Application :
BIPV, floating solar power station
Life Time :
20 years
Warranty :
25 years
Description

FSM430~FSM440M60HL (430W/435W/440W) MONO PERC Half-Cell Bifacial PV Module

KEY FEATURES

  • Bifacial 9 Busbar M6 Mono Half-Cell adopts PERC technology to guarantee higher output power and higher module efficiency.
  • Mono PERC Half-Cell PV module offers better temperature-dependent performance, less shading effect on the energy generation, lower risk of hot spot.
  • Excellent Anti-PID performance guarantee limited power degradation for mass production.
  • Double glasses encapsulation guarantees 20 years life time warranty and 30 years linear power warranty.
  • Advanced glass and cell surface textured design ensure excellent performance in low-light environments (e.g. early morning, dusk and cloud, etc).
  • Module power increases 5%~25% from backside (as per different reflective condition), lower LCOE and higher IRR.
  • 100% EL inspection and power test before packing.
  • Separate trackable barcode on each product for quality tracing.

Electrical Characteristics under STC

Module Type FSM430M72HL FSM435M72HL FSM440M72HL
Maximum Power-Pmax (Wp) 430 435 440
Voltage at Maximum Power-Vmp (V) 40.6 40.8 41.0
Current at Maximum Power-Imp (A) 10.60 10.67 10.74
Open Circuit Voltage-Voc (V) 49.2 49.4 49.6
Short Circuit Voltage-Isc (A) 11.19 11.26 11.33
Module Efficiency-ηm (%) 19.5% 19.7% 19.9%
Operating Temperature -40℃ to +85℃
Maximum System Voltage 1000V/1500V DC (IEC)
Power Tolerance 0~+4.99W
Temperature Coefficients of Pmax -0.350%/℃
Temperature Coefficients of Voc -0.289%/℃
Temperature Coefficients of Isc 0.048%/℃

Mechanical Characteristics

Cell Type MONO PERC 166×83mm
No. of Cells 144PCS (72×2)
Dimension 2108×1048×35mm
Weight 24 Kg
Junction Box IP68, 3 diodes (3*20A)
Output Cables 4.0mm², 500mm Length
Connectors MC4 compatible
Packing 32PCS/Pallet, 704PCS/40’HC

Cells Soldering

430W 435W 440W Double Glass Mono Perc Solar Panels Half Cut PV 9BB 166mm

Manufacturing Plant

430W 435W 440W Double Glass Mono Perc Solar Panels Half Cut PV 9BB 166mm

QC Inspections Online

430W 435W 440W Double Glass Mono Perc Solar Panels Half Cut PV 9BB 166mm

Products Packing

430W 435W 440W Double Glass Mono Perc Solar Panels Half Cut PV 9BB 166mm

Container Loading and Delivery

430W 435W 440W Double Glass Mono Perc Solar Panels Half Cut PV 9BB 166mm
