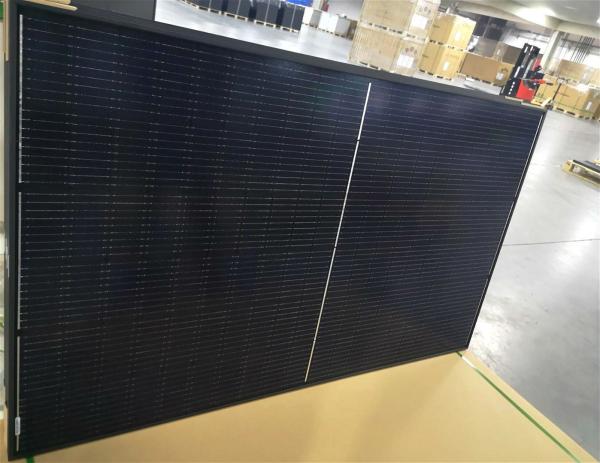

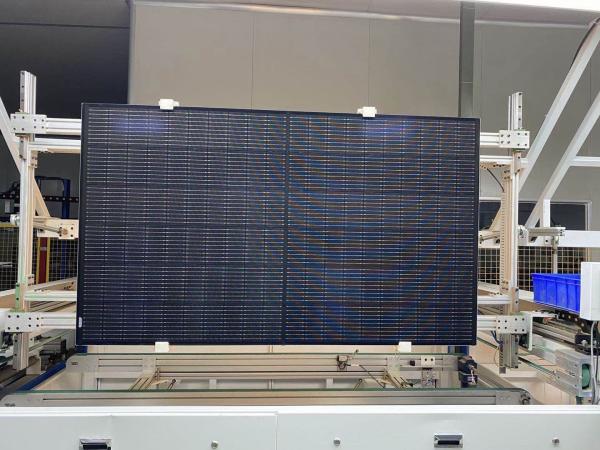

FSM350~FSM360M60HL (350W/355W/360W) Full Black MONO PERC PV Module

KEY FEATURES

• 9 Busbar M6 Mono Half-Cut Solar Cell adopts PERC technology to guarantee higher output power and higher module efficiency.
• Mono PERC Half-Cell PV module offers better temperature-dependent performance, less shading effect on the energy generation, lower risk of hot spot.
• Excellent Anti-PID performance guarantee limited power degradation for mass production.
• Advanced glass and cell surface textured design ensure excellent performance in low-light environments (e.g. early morning, dusk and cloud, etc).
• Certified to withstand: wind load (2400 Pa) and snow load (5400Pa)
• High salt mist and ammonia resistance certified by TUV
• All black color meets better with your house roofs
• 15 years product warranty and 25 years linear power warranty
• Barcode, material and parameter binding data traceable, searchable and freezing

Electrical Characteristics under STC

Mechanical Characteristics

FAQ of Solar Knowledges

Q1: What's the advantages of half-cut cell solar panels?

A: It reduces internal power loss and increasees conversion efficiency. 50% of the power is guaranteed even when half of the module is shaded.

Q2: Are half-cut cell solar panels have higher voltage than normal ones?

A: No. The voltage of half-cut cell solar panels are approximate the same because each panel's cells connection is a combination of series circuit and parallel circuit.

Q3: Can full black solar panels generate higher power than normal panels?

A: No. Black color will absorb a lot of heat under the sun to increase temperature of solar panels. The higher temperature will make a loss of solar power generation. In this case, full black solar panels must be lower nominal power than normal panels with same dimension.

Q4: Why to choose full/all black solar panels however it's a loss of power generation?

A: Full black solar panels looks much more beautiful when they're structued on house roofs. The color matches with house roof tiles.

Cases for Comparation
