72mm x 220m UHMWPE Fiber Rope Easy Operating 5% Weight Length Tolerance
72mm x 220m UHMWPE Fiber Rope Easy Operating 5% Weight Length Tolerance
Specifications
Brand Name :
GIRO
Model Number :
uhmwpe01
Certification :
ABS/LR/BV/DNV-GL/RINA/RS/CCS/NK/TEST CERTIFICATE
Place of Origin :
china
MOQ :
1
Price :
USD 01-20/kg
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000kg/year
Delivery Time :
5-8 work days
Packaging Details :
woven bag
Material :
UHMWPE/Polyester
Color :
White, yellow,black, etc.
Construction :
3/8/12/24 strand
Package :
woven bag
Application :
Mooring line, anchor line, towing rope,winch line
OEM/ODM :
Both are available
Description

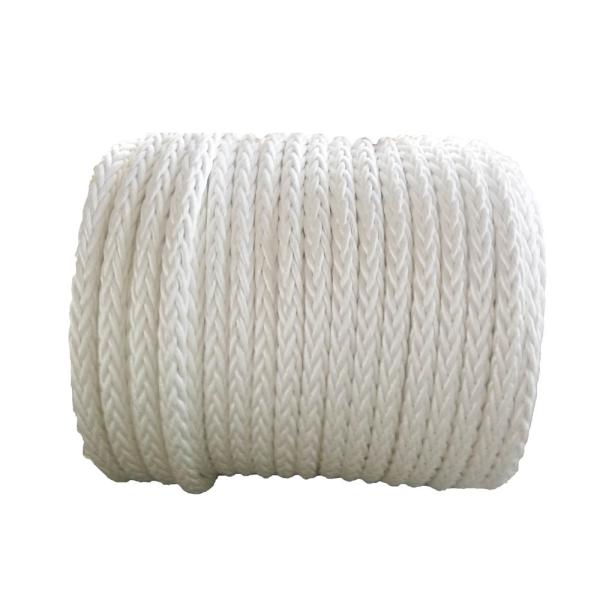

72mm x 220m double braided uhmwpe fiber rope mooring line hawser for ship

Material: UHMWPE/Polyester

UHMWPE has one of the highest strength to weight ratios of any man made fibers. It has low weight (It floats in Seawater) and high UV and chemical resistance.
Excellent vibration damping, flex fatigue and internal fiber-friction are other features of High molecular weight polyethylene
It is used in high-performance sails and rigging in yachting. Having low stretch lets the sails retain an optimal shape and a brilliant white appearance plus exceptional resistance to abrasion. The useful life exceeds that of other material many times over.

DIA CIR Linear Density MBL(KN)
MM INCH Ktex Unspliced Spliced
8 1 42 49 44.1
12 1-1/2 89 102 91.8
16 2 167 182 163.8
18 2-1/4 211 231 207.9
20 2-1/2 240 271 244
22 2-3/4 290 341 307
24 3 340 402 362
26 3-1/4 400 471 424
28 3-1/2 460 549 494
30 3-3/4 530 537 573
32 4 600 736 662
34 4-1/4 680 824 742
36 4-1/2 770 912 821
38 4-3/4 850 1010 909
40 5 940 1140 1030
44 5-1/2 1150 1380 1240
48 6 1350 1610 1450
52 6-1/2 1600 1920 1730
56 7 1850 2190 1970
60 7-1/2 2120 2520 2270
64 8 2400 2880 2590
68 8-1/2 2720 3260 2930
72 9 3070 3630 3270
76 9-1/2 3400 4020 3620
80 10 3750 4510 4060
88 11 4500 5350 4820
96 12 5300 6280 5650

Main Performance

Fiber(core/cover) UHMWPE/Polyester
Meiting point 150℃/265℃
Elongation at brcak 4-5%
Water Absorption None
U.V.resistance Good
Abrasion resistance Very good
High strength
lowest elongation
Dry & wet conditions wet strength equals dry stength
Non-rotating and anti-kinking
Long life and essy handing
Range of use/Use scope fishery,marine,engineering,mooring,tugboat
Coil length 220m (length can be customized)
Spliced strength 10%
Weight and length tolerance 5%
Mbl-Minimum Breaking Load conform iso 2307
Other sizes available upon request
