Ship Tugging 14mm UHMWPE Fiber Rope High Modulus Low Friction Coefficient
Ship Tugging 14mm UHMWPE Fiber Rope High Modulus Low Friction Coefficient
Specifications
Brand Name :
GIRO
Model Number :
uhmwpe01
Certification :
ABS/LR/BV/DNV-GL/RINA/RS/CCS/NK/TEST CERTIFICATE
Place of Origin :
china
MOQ :
1
Price :
USD 01-20/kg
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000kg/year
Delivery Time :
5-8 work days
Packaging Details :
woven bag
Product Name :
UHMWPE mooring rope
Color :
White, yellow,black, etc.
Approx.Spec.Density :
0.975 Floating
Coil Length :
100m (length can be customized)
Package :
woven bag
Application :
Mooring line, anchor line, towing rope
Description

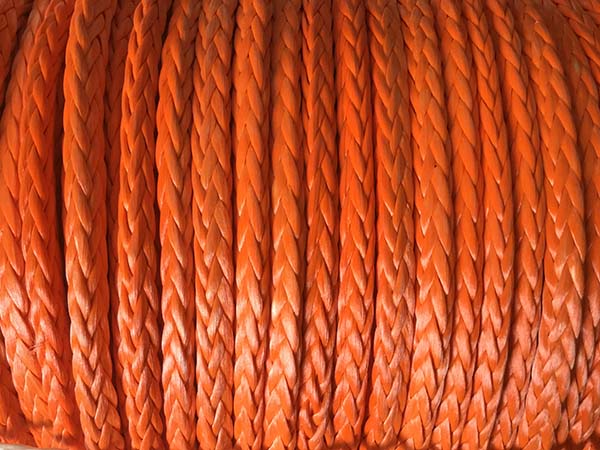

12 strand 14mm uhmwpe fiber rope winch line tug rope towing line pulling rope

Material: UHMWPE

GIRO MAX is high quality UHMWPE rope product used for most demanding mooring, towing and lifting applications. The advanced equipment from Germany and Denmark and the mature technology in rope manufacturig account for its high quality and stability.

GIRO MAX ropes is your optimal choice for diversified mooring applications for its properties of high strength, excellent abrasion resistance, high strength-to-weight ratio, exremenly low enlongation and superior flex fatigue resistance.

DIA CIR Linear Density MBL(KN)
MM INCH Ktex Unspliced Spliced
6 3/4 23 46.5 42
8 1 37 73 66
10 1-1/4 56 105 95
12 1-1/2 79 145 131
14 1-3/4 106 193 174
16 2 151 260 235
18 2-1/4 190 310 283
20 2-1/2 232 380 340
22 2-3/4 281 450 400
24 3 331 520 470
26 3-1/4 384 600 540
28 3-1/2 445 680 610
30 3-3/4 506 770 690
32 4 575 870 780
34 4-1/4 648 960 860
36 4-1/2 720 1040 940
38 4-3/4 798 1160 1040
40 5 881 1260 1130
44 5-1/2 1060 1460 1310
48 6 1250 1700 1530
52 6-1/2 1460 1970 1770
56 7 1690 2260 2030
60 7-1/2 1930 2530 2280
64 8 2200 2840 2560
68 8-1/2 2480 3170 2850
72 9 2780 3520 3170
76 9-1/2 3090 3890 3500
80 10 3430 4300 3870
88 11 4170 5200 4680
96 12 4970 6180 5560

Packaging & Shipping

Package: coil,reel, woven bag, hank or customized
1.International Express for mini order,DHL/UPS/FEDEX,etc.Arrie within 4-7 days.
2.Via Air or Sean for big order.

Main Performance

Material UHMWPE
Construction 12 strand braided
Treatment Marine finish,Offshore
Standard Color Yellow(also available by special order in red,green,blue,orange and so on)
Approx.Spec.Density 0.975 Floating
Melting Point 145℃
Vabrasion Resistance Excellent
U.V.resistance Good
Temperature resistance 70℃ max continuous
Dry & wet conditions wet strength equala dry strength
Range of use fishing,off-shore installation,mooring
Coil length 220m (length can be customized)
Spliced strength ±10%
Weight and lengthtolerance ±5%
MBL=Minimum Breaking Load Conform Iso 2307
Other sizes Available upon request
