Specifications
Brand Name :
MORITA
Model Number :
MRT-1601
Place of Origin :
China
MOQ :
500 pcs
Price :
negociate
Payment Terms :
T/T
Supply Ability :
10000 pcs per month
Delivery Time :
35 days
Packaging Details :
color box
material :
stainless steel
size :
9000-12000TBU, 18000-27000TBU, 36000-45000TBU
feature :
a heavy duty platfrom, prevent your AC air conditioner from rain water, snow, mud, flood, dirt
Description
Item No. MRT-1601
Description Split Air Conditioner Mount Bracket, Heavy-Duty Wall Mounting Universal AC Bracket, with Hardware for Ductless Mini Split Condenser Heat Pumps & HVAC Systems
Material stainless steel
Size 9000-45000TBU
Application mounting the air conditioner outer unit on the wall
Feature The wall mounting bracket is mainly designed to monut air conditioner outer units.
It is made of stainless steel, anti-rust, durable and corrosion-resistant for harsh climates.
This mounting bracket is stamped by fully automated controlled equipment. Controlled by computer, the size is precise and the assembly is tight.
It provides you a heavy duty platfrom, prevent your AC air conditioner from rain water, snow, mud, flood, dirt and so on.
All the steel acccessories is also make of stainless steel, super strong, rust free. They ensure the mounting very firm.
The assembing bolts are anti-slip, not eay to loose, not falling off.Triangle structure design make the bracket more stable. The steel plate is round corner sedign, prevent scratching.The gasket can prevent scraping your machine and can absorb vibration, reducing noise.
The mounting bracket can fold for compact storge when not using.
The set of wall mounting bracket has high versatile and is used for all kind of residential & commercial HVAC applications in mounting split air conditioner, heat pumps, compressors.
Comes with all anchoring accessories to mount an outdoor air conditioner unit to an exterior wall conviently.
The accessories for 9000TBU-27000TBU is as below:
2 sets Mounting Brackets
2 sets assembling Bolts
4 sets fixed bolts
4 pcs gaskets
10 pcs expansion Bolts
The accessories for 36000-45000TBU is as below:
3 pairs Mounting Brackets
6 sets assembling Bolts
4 sets fixed bolts
4 pcs gaskets
12 pcs expansion Bolts
The mounting brackets for 9000-27000TBU are half-assembing finished, you only need 2 bolts to finish the assembing.
The mounting bracket for 36000-45000TBU is splitting steel plates, you need 6 pcs bolts to assemble it.

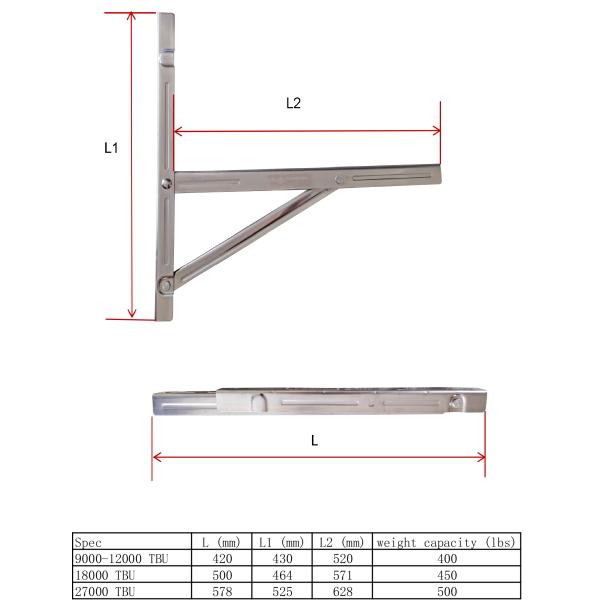

The bracket for 9000-12000TBU is with weight capacity max 400lbs.
The bracket for 18000-27000TBU is with weight capacity max 450lbs.

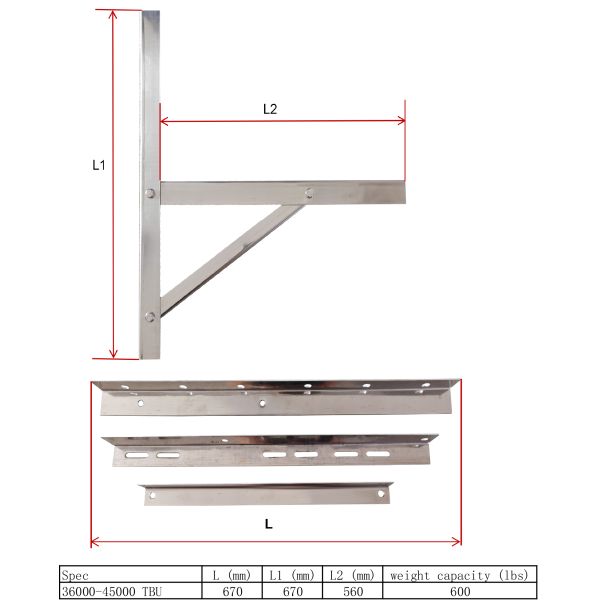

The bracket for 36000-45000TBU is with weight capacity max 600lbs.

Customization:

ODM and OEM are available. Customer’s logo can be made on the products.

Samples rule:

Samples are out of charge and will be sent within 7 working days.

Production leading time:

35 days after confirmation

FOB port:

Shanghai, China

Payment terms:

30% deposit + 70% T/T before shipping.
