1SS184 Silicon Power Transistor Silicon Material Mobile Power Supply
1SS184 Silicon Power Transistor Silicon Material Mobile Power Supply
Specifications
Place of Origin :
ShenZhen China
Brand Name :
Hua Xuan Yang
Certification :
RoHS、SGS
MOQ :
1000-2000 PCS
Price :
Negotiated
Packaging Details :
Boxed
Delivery Time :
1 - 2 Weeks
Payment Terms :
L/C T/T Western Union
Supply Ability :
18,000,000PCS / Per Day
Model Number :
1SS184
Junction Temperature :
150 ℃
Power mosfet transistor :
SOT-23 Plastic-Encapsulate
Application :
mobile power supply/ led driver/motor control
Material :
Silicon
Product ID :
1SS184
Storage Temperature :
-55～+150℃
Description

SOT-23 Plastic-Encapsulate Transistors MMBTA44 TRANSISTOR (NPN)

FEATURE

Low forward voltage

Fast reverse recovery time

Marking :B3

1SS184 Silicon Power Transistor Silicon Material Mobile Power Supply

Solid dot = Green molding compound device,if none,the normal device.

MAXIMUM RATINGS (Ta=25℃ unless otherwise noted)

1SS184 Silicon Power Transistor Silicon Material Mobile Power Supply




ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)

1SS184 Silicon Power Transistor Silicon Material Mobile Power Supply

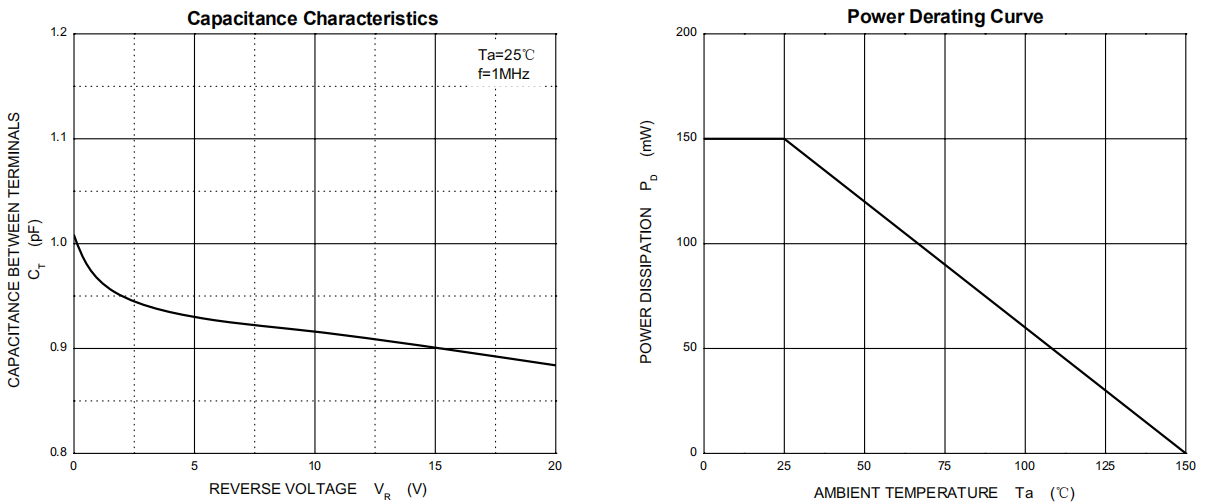

Typical Characterisitics

1SS184 Silicon Power Transistor Silicon Material Mobile Power Supply1SS184 Silicon Power Transistor Silicon Material Mobile Power Supply




Package Outline Dimensions

Symbol Dimensions In Millimeters Dimensions In Inches
Min Max Min Max
A 0.900 1.150 0.035 0.045
A1 0.000 0.100 0.000 0.004
A2 0.900 1.050 0.035 0.041
b 0.300 0.500 0.012 0.020
c 0.080 0.150 0.003 0.006
D 2.800 3.000 0.110 0.118
E 1.200 1.400 0.047 0.055
E1 2.250 2.550 0.089 0.100
e 0.950 TYP 0.037 TYP
e1 1.800 2.000 0.071 0.079
L 0.550 REF 0.022 REF
L1 0.300 0.500 0.012 0.020
θ 0° 8° 0° 8°



1SS184 Silicon Power Transistor Silicon Material Mobile Power Supply
1SS184 Silicon Power Transistor Silicon Material Mobile Power Supply
1SS184 Silicon Power Transistor Silicon Material Mobile Power Supply
