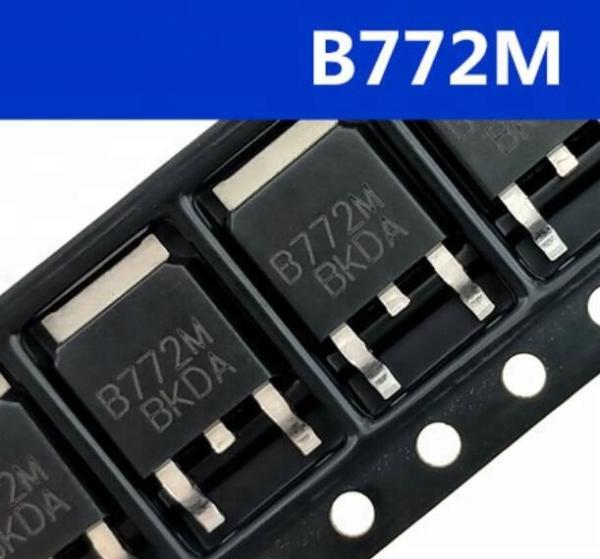

TO-251-3L Tip Power Transistors B772M PNP VCEO -30V Silicon Material
TO-251-3L Tip Power Transistors B772M PNP VCEO -30V Silicon Material
Specifications
Place of Origin :
ShenZhen China
Brand Name :
Hua Xuan Yang
Certification :
RoHS、SGS
MOQ :
1000-2000 PCS
Price :
Negotiated
Packaging Details :
Boxed
Delivery Time :
1 - 2 Weeks
Payment Terms :
L/C T/T Western Union
Supply Ability :
18,000,000PCS / Per Day
Model Number :
B772M
VCBO :
-40V
VCEO :
-30V
Storage Temperature :
-55-150℃
Power mosfet transistor :
TO-251-3L Plastic-Encapsulate
Material :
Silicon
Type :
Triode Transistor
Description

TO-251-3L Plastic-Encapsulate Transistors B772M TRANSISTOR (PNP)

FEATURES

Low Speed Switching

MAXIMUM RATINGS (Ta =25 Š unless otherwise noted)

Symbol Parameter Value Unit
VCBO Collector-Base Voltage -40 V
VCEO Collector-Emitter Voltage -30 V
VEBO Emitter-Base Voltage -6 V
IC Collector Current -Continuous -3 A
PC Collector Power Dissipation 1.25 W
RӨJA Thermal Resistance, junction to Ambient 100 ℃/W
Tj Junction Temperature 150 ℃
Tstg Storage Temperature -55-150 ℃




ELECTRICAL CHARACTERISTICS

Ta=25 Š unless otherwise specified

Parameter Symbol Test conditions Min Typ Max Unit
Collector-base breakdown voltage V(BR)CBO IC=-100μA ,IE=0 -40 V
Collector-emitter breakdown voltage V(BR)CEO IC= -10mA , IB=0 -30 V
Emitter-base breakdown voltage V(BR)EBO IE= -100μA,IC=0 -6 V
Collector cut-off current ICBO VCB= -40V, IE=0 -1 μA
Collector cut-off current ICEO VCE=-30V, IB=0 -10 μA
Emitter cut-off current IEBO VEB=-6V, IC=0 -1 μA
DC current gain hFE VCE= -2V, IC= -1A 60 400
Collector-emitter saturation voltage VCE(sat) IC=-2A, IB= -0.2A -0.5 V
Base-emitter saturation voltage VBE(sat) IC=-2A, IB= -0.2A -1.5 V

Transition frequency

 fT

VCE= -5V, IC=-0.1A

f =10MHz

50

80

MHz


CLASSIFICATION OF hFE(2)

Rank R O Y GR
Range 60-120 100-200 160-320 200-400


Typical Characteristics


TO-251-3L Tip Power Transistors B772M PNP VCEO -30V Silicon MaterialTO-251-3L Tip Power Transistors B772M PNP VCEO -30V Silicon MaterialTO-251-3L Tip Power Transistors B772M PNP VCEO -30V Silicon MaterialTO-251-3L Tip Power Transistors B772M PNP VCEO -30V Silicon Material

Symbol Dimensions In Millimeters Dimensions In Inches
Min. Max. Min. Max.
A 2.200 2.380 0.087 0.094
A1 0.000 0.100 0.000 0.004
B 0.800 1.400 0.031 0.055
b 0.710 0.810 0.028 0.032
c 0.460 0.560 0.018 0.022
c1 0.460 0.560 0.018 0.022
D 6.500 6.700 0.256 0.264
D1 5.130 5.460 0.202 0.215
E 6.000 6.200 0.236 0.244
e 2.286 TYP. 0.090 TYP.
e1 4.327 4.727 0.170 0.186
M 1.778REF. 0.070REF.
N 0.762REF. 0.018REF.
L 9.800 10.400 0.386 0.409
L1 2.9REF. 0.114REF.
L2 1.400 1.700 0.055 0.067
V 4.830 REF. 0.190 REF.
ĭ 1.100 1.300 0.043 0.0±1

TO-251-3L Tip Power Transistors B772M PNP VCEO -30V Silicon Material

TO-251-3L Tip Power Transistors B772M PNP VCEO -30V Silicon Material

TO-251-3L Tip Power Transistors B772M PNP VCEO -30V Silicon MaterialTO-251-3L Tip Power Transistors B772M PNP VCEO -30V Silicon Material
