BAV16W/1N4148W Dual Switching Diode Fast Switching RθJA 250mW
BAV16W/1N4148W Dual Switching Diode Fast Switching RθJA 250mW
Specifications
Place of Origin :
ShenZhen China
Brand Name :
Hua Xuan Yang
Certification :
RoHS、SGS
MOQ :
1000-2000 PCS
Price :
Negotiated
Packaging Details :
Boxed
Delivery Time :
1 - 2 Weeks
Payment Terms :
L/C T/T Western Union
Supply Ability :
18,000,000PCS / Per Day
Model Number :
BAV16W
Product ID :
BAV16W/1N4148W
Feature :
Fast reverse recovery time
Type :
Switching Diodesod
VR(RMS) :
71v
RθJA :
250mW
TSTG :
-55~+150
Description

1SS184 Switching Diode BAV16W/1N4148W FAST SWITCHING DIODE

FEATURES

Ÿ Fast Switching Speed

Ÿ Surface Mount Package Ideally Suited for Automatic Insertion

Ÿ For General Purpose Switching Applications

Ÿ High Conductance

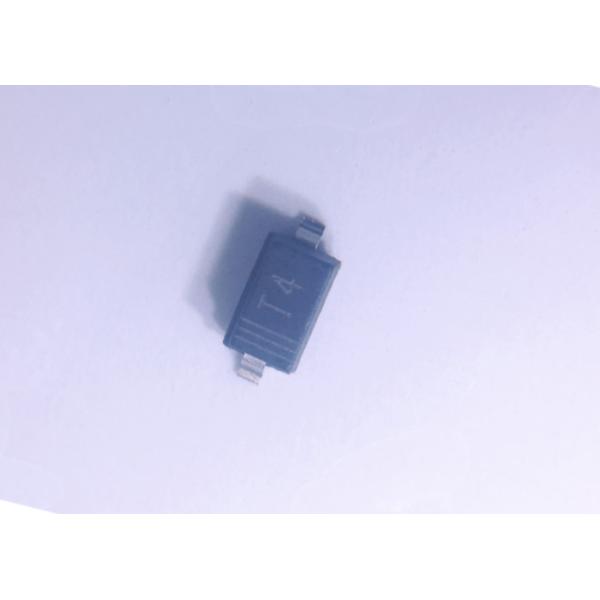

MARKING: T6,T4

1N4148W BAV16W

T4

T4

T6

T6

The marking bar indicates the cathode

Solid dot = Green molding compound device,if none,the normal device.

Maximum Ratings and Electrical Characteristics, Single Diode @Ta=25℃

Parameter Symbol Limit Unit
Non-Repetitive Peak Reverse Voltage VRM 100 V

Peak Repetitive Peak Reverse Voltage Working Peak Reverse Voltage

DC Blocking Voltage

VRRM VRWM

VR

100

V
RMS Reverse Voltage VR(RMS) 71 V
Forward Continuous Current IFM 300 mA
Average Rectified Output Current IO 150 mA
Non-Repetitive Peak Forward Surge Current @t=8.3ms IFSM 2.0 A
Power Dissipation 1N4148W BAV16W

Pd

350

400

mW
Thermal Resistance from Junction to Ambient(Note 1) RθJA 250

℃/W
Junction Temperature Tj 150 ℃
Storage Temperature TSTG -55~+150 ℃

Note 1:Device mounted on 1''x1'' FR4 PCB,1oz single-side copper.

ELECTRICAL CHARACTERISTICS

Electrical Ratings @Ta=25℃

Parameter Symbol Min Typ Max Unit Conditions

Forward voltage

 VF1 0.715 V IF=1mA
VF2 0.855 V IF=10mA
VF3 1.0 V IF=50mA
VF4 1.25 V IF=150mA

Reverse current

 IR1 1 μA VR=75V
IR2 25 nA VR=20V
Capacitance between terminals CT 2 pF VR=0V,f=1MHz

Reverse recovery time

trr

4

ns

IF=IR=10mA

Irr=0.1XIR,RL=100Ω
