A94 Silicon Power Transistor Emitter Base Voltage -5V For Mobile Power Supply
A94 Silicon Power Transistor Emitter Base Voltage -5V For Mobile Power Supply
Specifications
Place of Origin :
ShenZhen China
Brand Name :
Hua Xuan Yang
Certification :
RoHS、SGS
MOQ :
1000-2000 PCS
Price :
Negotiated
Packaging Details :
Boxed
Delivery Time :
1 - 2 Weeks
Payment Terms :
L/C T/T Western Union
Supply Ability :
18,000,000PCS / Per Day
Model Number :
A94
Collector-Base Voltage :
-400V
Collector Power Dissipation :
0.5W
Emitter-Base Voltage :
-5V
Application :
mobile power supply/ led driver/motor control
Collector Current- Pulsed :
-0.3A
Description

SOT-89-3L Plastic-Encapsulate Transistors A94 TRANSISTOR (NPN)

FEATURE

Low Collector-Emitter Saturation Voltage

High Breakdown Voltage

Marking :A94

MAXIMUM RATINGS (Ta=25℃ unless otherwise noted)

Symbol Parameter Value Unit
VCBO Collector-Base Voltage -400 V
VCEO Collector-Emitter Voltage -400 V
VEBO Emitter-Base Voltage -5 V
IC Collector Current -Continuous -0.2 A
ICM Collector Current- Pulsed -0.3 A
PC Collector Power Dissipation 0.5 W
TJ Junction Temperature 150 ℃
Tstg storage Temperature -55~+150 ℃




ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)

Parameter Symbol Test conditions Min Typ Max Unit
Collector-base breakdown voltage V(BR) CBO IC= -100μA, IE=0 -400 V
Collector-emitter breakdown voltage V(BR) CEO IC= -1mA,IB=0 -400 V
Emitter-base breakdown voltage V(BR) EBO IE=-100μA,IC=0 -5 V
Collector cut-off current ICBO VCB=-400V, IE=0 -0.1 μA
Collector cut-off current ICEO VCE=-400V, IB=0 -5 μA
Emitter cut-off current IEBO VEB= -4V, IC=0 -0.1 μA

DC current gain

 hFE(1) VCE=-10V, IC=-10mA 80 300
hFE(2) VCE=-10V, IC=-1mA 70
hFE(3) VCE=-10V, IC=-100mA 60
hFE(4) VCE=-10V, IC=-50mA 80

Collector-emitter saturation voltage

 VCE (sat) IC=-10mA, IB=-1mA -0.2 V
VCE (sat) IC=-50mA, IB=-5mA -0.3 V
Base-emitter saturation voltage VBE (sat) IC=-10mA, IB= -1mA -0.75 V

Transition frequency

fT

VCE=-20V, IC=-10mA

f =30MHz

50

MHz

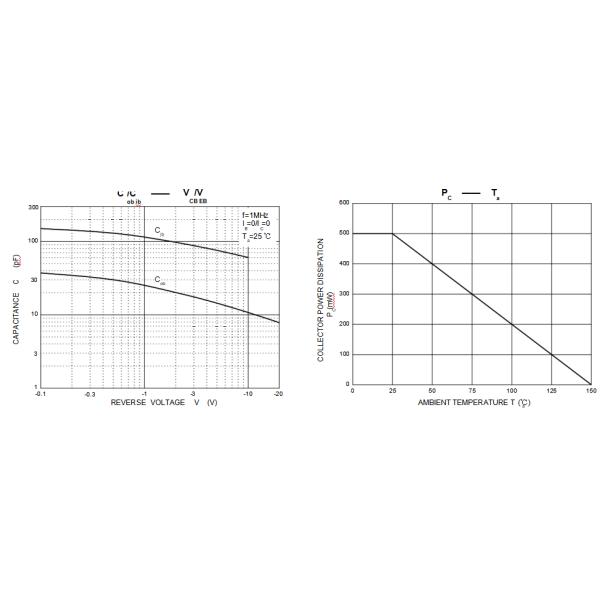

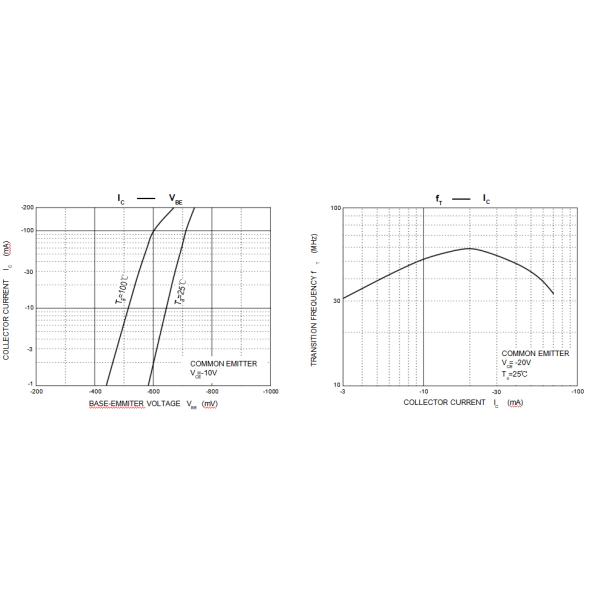

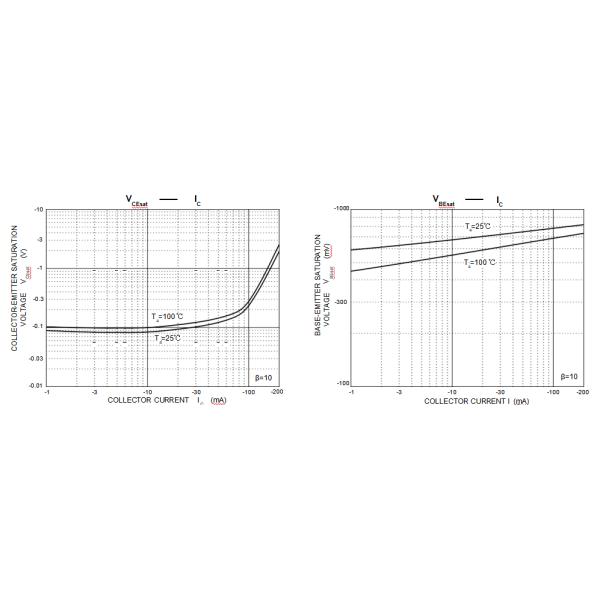

Typical Characteristics

A94 Silicon Power Transistor Emitter Base Voltage -5V For Mobile Power Supply

A94 Silicon Power Transistor Emitter Base Voltage -5V For Mobile Power Supply

A94 Silicon Power Transistor Emitter Base Voltage -5V For Mobile Power Supply


Package Outline Dimensions

Symbol Dimensions In Millimeters Dimensions In Inches
Min Max Min Max
A 1.400 1.600 0.055 0.063
b 0.320 0.520 0.013 0.020
b1 0.400 0.580 0.016 0.023
c 0.350 0.440 0.014 0.017
D 4.400 4.600 0.173 0.181
D1 1.550 REF. 0.061 REF.
E 2.300 2.600 0.091 0.102
E1 3.940 4.250 0.155 0.167
e 1.500 TYP. 0.060 TYP.
e1 3.000 TYP. 0.118 TYP.
L 0.900 1.200 0.035 0.047



SOT-89-3L Suggested Pad Layout

A94 Silicon Power Transistor Emitter Base Voltage -5V For Mobile Power Supply

SOT-89-3L Tape and Reel
A94 Silicon Power Transistor Emitter Base Voltage -5V For Mobile Power Supply
A94 Silicon Power Transistor Emitter Base Voltage -5V For Mobile Power Supply
A94 Silicon Power Transistor Emitter Base Voltage -5V For Mobile Power Supply
