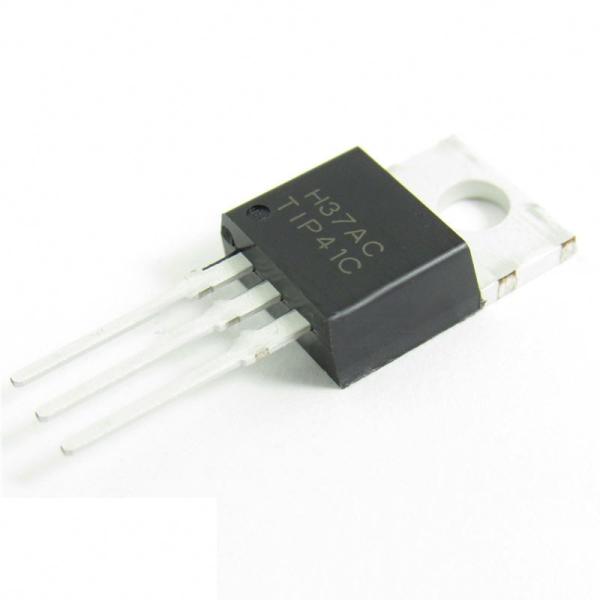

TIP41/41A/41B/41C NPN High Speed Switching Transistor High Performance
TIP41/41A/41B/41C NPN High Speed Switching Transistor High Performance
Specifications
Place of Origin :
ShenZhen China
Brand Name :
Hua Xuan Yang
Certification :
RoHS、SGS
MOQ :
1000-2000 PCS
Price :
Negotiated
Packaging Details :
Boxed
Delivery Time :
1 - 2 Weeks
Payment Terms :
L/C T/T Western Union
Supply Ability :
18,000,000PCS / Per Day
Model Number :
TIP41/41A/41B/41C
Product ID :
TIP41/41A/41B/41C
Type :
Semiconductor Triode
Power Mosfet Transistor :
TO-220-3L Plastic Encapsulated
Feature :
Medium Power Linear Switching Applications
Collector Power Dissipation :
2w
Emitter-Base Voltage :
5V
Description

TO-220-3L Plastic-Encapsulate Transistors

TIP41/41A/41B/41C TRANSISTOR (NPN)

FEATURE
Medium Power Linear Switching Applications

MAXIMUM RATINGS (Ta=25℃ unless otherwise noted)

Symbol Parameter TIP41 TIP41A TIP41B TIP41C Unit
VCBO Collector-Base Voltage 40 60 80 100 V
VCEO Collector-Emitter Voltage 40 60 80 100 V
VEBO Emitter-Base Voltage 5 V
IC Collector Current -Continuous 6 A
PC Collector Power Dissipation 2 W
TJ Junction Temperature 150 ℃
Tstg Storage Temperature Range -55~+150 ℃

ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)

Parameter Symbol Test conditions Min Max Unit

Collector-base breakdown voltage TIP41

TIP4 1A

TIP41B TIP41C

V(BR)CBO

IC= 1mA, IE=0

40

60

80

100

V

Collector-emitter breakdown voltage TIP41

TIP41A

TIP41B TIP41C

VCEO(sus)

IC= 30mA, IB=0

40

60

80

100

V
Emitter-base breakdown voltage V(BR)EBO IE= 1mA, IC=0 5 V

Collector cut-off current TIP41 TIP4 1A TIP41B

TIP41C

ICBO

 VCB=40V, IE=0 VCB=60V, IE=0 VCB=80V, IE=0 VCB=100V, IE=0

0.4

mA

Collector cut-off current TIP41/41A TIP41B/41C

ICEO

 VCE= 30V, IB= 0 VCE= 60V, IB= 0

0.7

mA
Emitter cut-off current IEBO VEB=5V, IC=0 1 mA

DC current gain

 hFE(1) VCE= 4V, IC= 0.3A 30
hFE(2) VCE=4 V, IC= 3A 15 75
Collector-emitter saturation voltage VCE(sat) IC=6A, IB=0.6A 1.5 V
Base-emitter voltage VBE(on) VCE= 4V, IC=6A 2 V

Transition frequency

fT

VCE=10V , IC=0.5A

f =1MHz

3

MHZ

Typical Characterisitics

TIP41/41A/41B/41C

TIP41/41A/41B/41C NPN High Speed Switching Transistor High Performance

TIP41/41A/41B/41C NPN High Speed Switching Transistor High Performance

TIP41/41A/41B/41C NPN High Speed Switching Transistor High Performance

TIP41/41A/41B/41C NPN High Speed Switching Transistor High Performance
