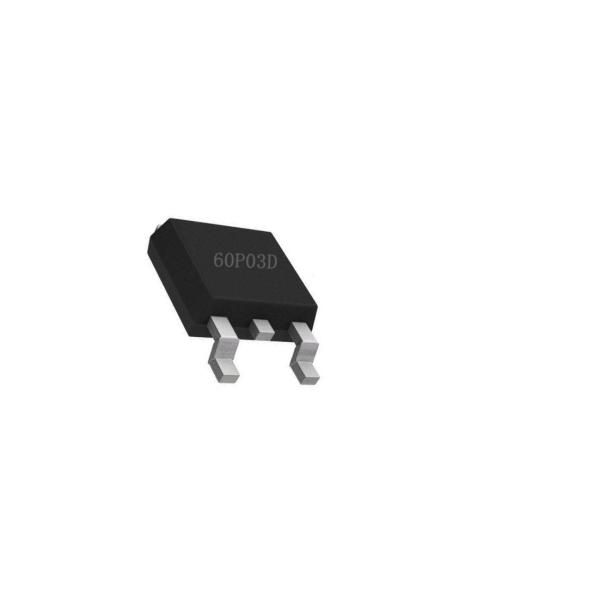

P Channel Enhancement Mode Mosfet Power Transistor 60P03D TO-252 30V
P Channel Enhancement Mode Mosfet Power Transistor 60P03D TO-252 30V
Specifications
Brand Name :
Hua Xuan Yang
Model Number :
60P03D TO-252
Certification :
RoHS、SGS
Place of Origin :
ShenZhen China
MOQ :
negotiation
Price :
Negotiated
Payment Terms :
L/C T/T Western Union
Supply Ability :
18,000,000PCS / Per Day
Delivery Time :
1 - 2 Weeks
Packaging Details :
Boxed
Product name :
Mosfet Power Transistor
Features :
Surface mount package
Drain-Source Voltage :
-30 V
Gate-Source Voltage :
±20 V
Applications :
DC/DC converter for LCD display
Description

P Channel Enhancement Mode Mosfet Power Transistor 60P03D TO-252 30V

Mosfet Power Transistor DESCRIPTION

The AP60P03D uses advanced trench technology
and design to provide excellent R DS(ON) with low
gate charge .Thisdevice is well suited
for high current load applications.


Mosfet Power Transistor GENERAL FEATURES

V DS =-30V,I D =-60A
R DS(ON) <15mΩ @ V GS =-10V
R DS(ON) <20mΩ @ V GS =-4.5V
High density cell design for ultra low Rdson
Fully characterized avalanche voltage and current
Good stability and uniformity with high E AS
Excellent package for good heat dissipation


Mosfet Power Transistor Application

High side switch for full bridge converter
DC/DC converter for LCD display

P Channel Enhancement Mode Mosfet Power Transistor 60P03D TO-252 30V

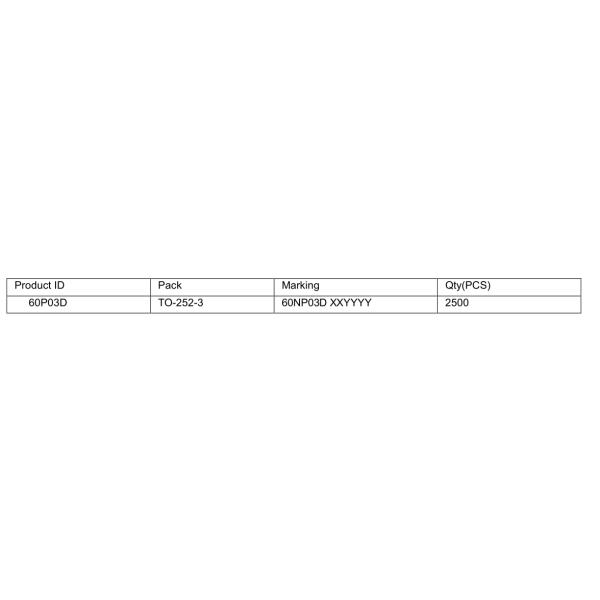

Package Marking and Ordering Information

P Channel Enhancement Mode Mosfet Power Transistor 60P03D TO-252 30V

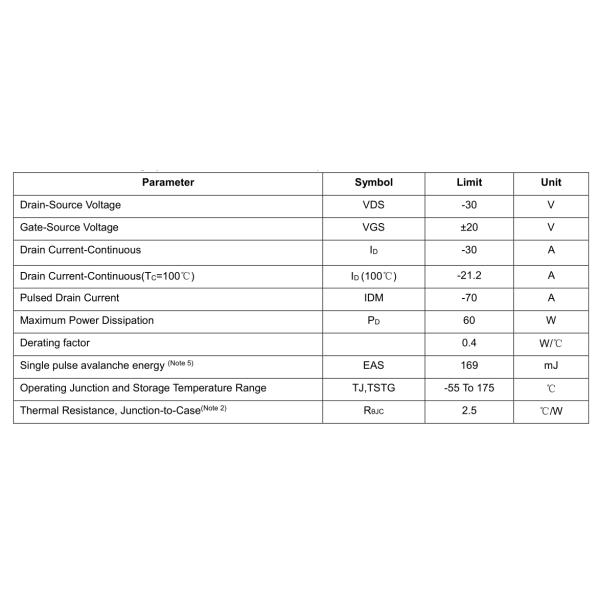

ABSOLUTE MAXIMUM RATINGS(TA=25℃unless otherwise noted)

P Channel Enhancement Mode Mosfet Power Transistor 60P03D TO-252 30V

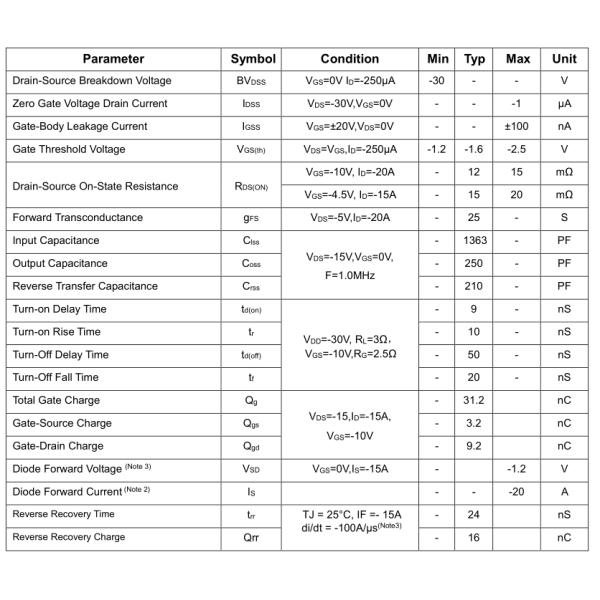

ELECTRICAL CHARACTERISTICS (TA=25℃unless otherwise noted)

P Channel Enhancement Mode Mosfet Power Transistor 60P03D TO-252 30V

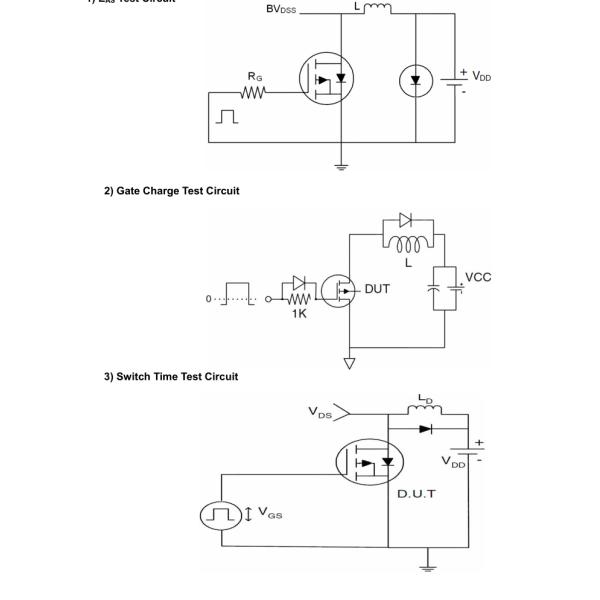

NOTES:


1. Repetitive Rating: Pulse width limited by maximum junction temperature.
2. Surface Mounted on 1in 2 FR4 Board, t ≤ 10 sec.
3. Pulse Test: Pulse Width ≤ 300μs, Duty Cycle ≤ 2%. 4. Guaranteed by design, not subject to production testing.

P Channel Enhancement Mode Mosfet Power Transistor 60P03D TO-252 30V

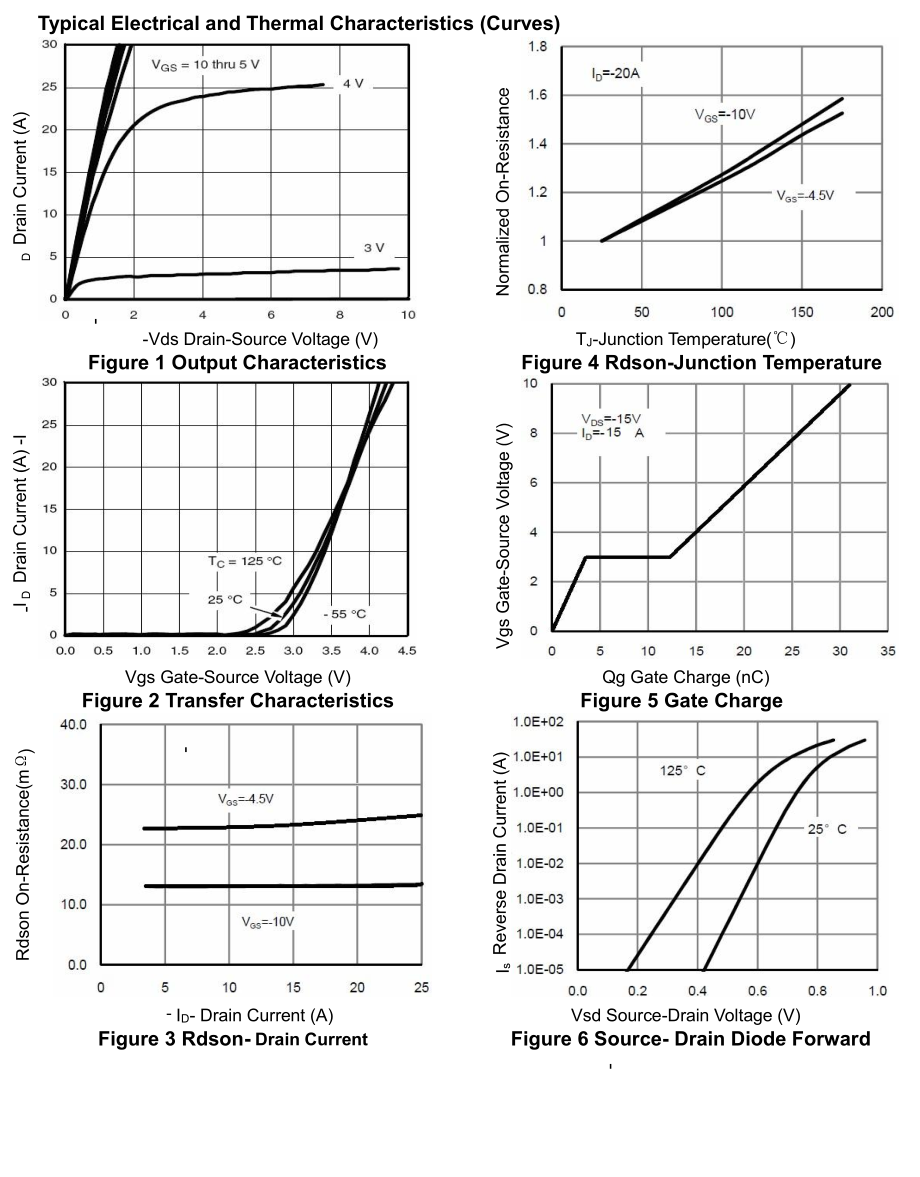

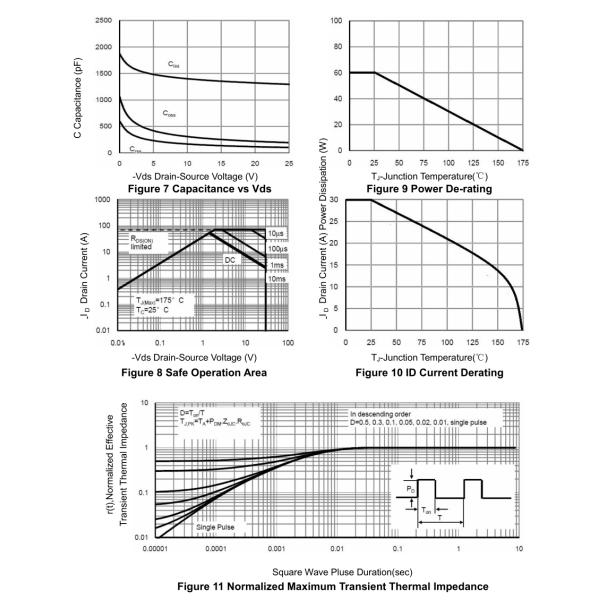

TYPICAL ELECTRICAL AND THERMAL CHARACTERISTICS

P Channel Enhancement Mode Mosfet Power Transistor 60P03D TO-252 30V

P Channel Enhancement Mode Mosfet Power Transistor 60P03D TO-252 30V

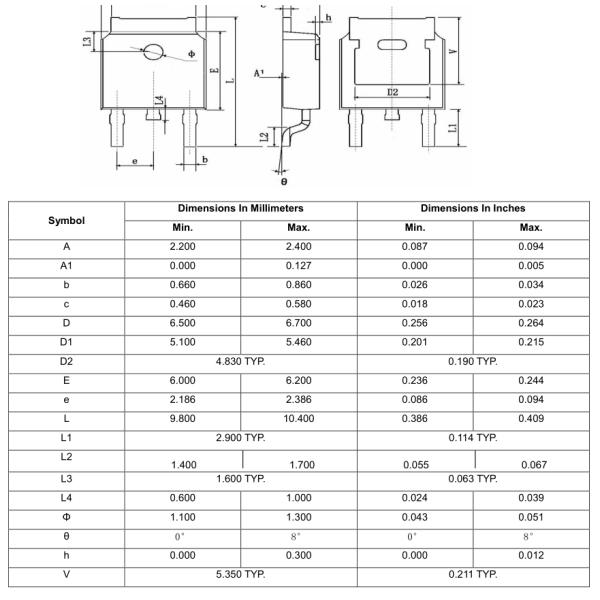

DFN5X6-8 Package Information

P Channel Enhancement Mode Mosfet Power Transistor 60P03D TO-252 30V
