30P06D TO-252 High Power Transistor , Custom Field Effect Transistor
30P06D TO-252 High Power Transistor , Custom Field Effect Transistor
Specifications
Brand Name :
Hua Xuan Yang
Model Number :
30P06D TO-252
Certification :
RoHS、SGS
Place of Origin :
ShenZhen China
MOQ :
negotiation
Price :
Negotiated
Payment Terms :
L/C T/T Western Union
Supply Ability :
18,000,000PCS / Per Day
Delivery Time :
1 - 2 Weeks
Packaging Details :
Boxed
Product name :
High Power Transistor
Features :
High Power
Drain-Source Voltage :
-60 V
Gate-Source Voltage :
±20 V
Other name :
Field Effect Transistor
Description

30P06D TO-252 High Power Transistor , Custom Field Effect Transistor

High Power Transistor DESCRIPTION


The 30P06D uses advanced trench
technology to provide excellent R DS(ON)
and low gate charge .This device is
suitable for use as a load switch or in
PWM applications.


High Power Transistor GENERAL FEATURES


V DS =- 60V,I D =-30A
R DS(ON) < 40mΩ @ V GS =-10V
R DS(ON) < 55mΩ @ V GS =-4.5V
High Power and current handing capability
Lead free product is acquired
Surface Mount Package


High Power Transistor Application


PWM applications
Power management

30P06D TO-252 High Power Transistor , Custom Field Effect Transistor

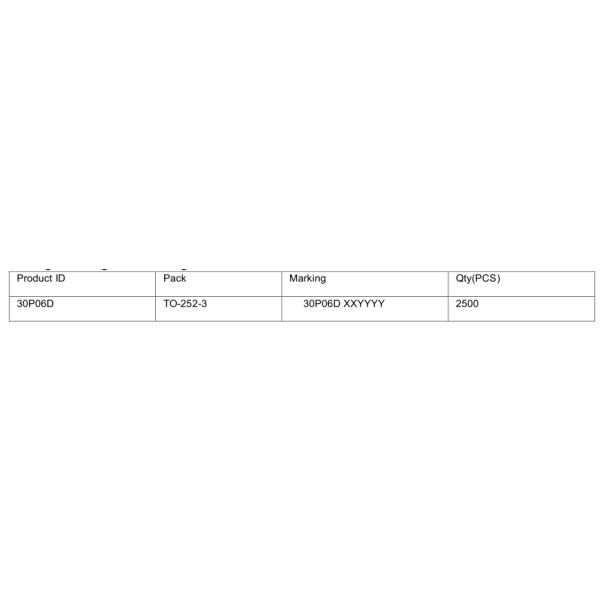

Package Marking and Ordering Information

30P06D TO-252 High Power Transistor , Custom Field Effect Transistor

ABSOLUTE MAXIMUM RATINGS(TA=25℃unless otherwise noted)

30P06D TO-252 High Power Transistor , Custom Field Effect Transistor

ELECTRICAL CHARACTERISTICS (TA=25℃unless otherwise noted)

30P06D TO-252 High Power Transistor , Custom Field Effect Transistor

NOTES:


1. Repetitive Rating: Pulse width limited by maximum junction temperature.
2. Surface Mounted on 1in 2 FR4 Board, t ≤ 10 sec.
3. Pulse Test: Pulse Width ≤ 300μs, Duty Cycle ≤ 2%. 4. Guaranteed by design, not subject to production testing.

TYPICAL ELECTRICAL AND THERMAL CHARACTERISTICS

30P06D TO-252 High Power Transistor , Custom Field Effect Transistor

30P06D TO-252 High Power Transistor , Custom Field Effect Transistor

30P06D TO-252 High Power Transistor , Custom Field Effect Transistor

TO-252 Package Information

30P06D TO-252 High Power Transistor , Custom Field Effect Transistor
