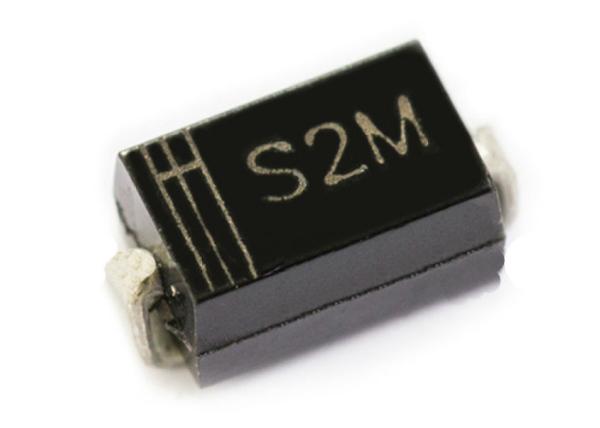

Surface Mount General High Voltage Rectifier Diode Reverse Voltage 50 To 1000 Volts
Surface Mount General High Voltage Rectifier Diode Reverse Voltage 50 To 1000 Volts
Specifications
Brand Name :
Hua Xuan Yang
Model Number :
S2A-THRU-S2M-SMA
Certification :
RoHS、SGS
Place of Origin :
ShenZhen China
MOQ :
negotiation
Price :
Negotiated
Payment Terms :
L/C T/T Western Union
Supply Ability :
18,000,000PCS / Per Day
Delivery Time :
1 - 2 Weeks
Packaging Details :
Boxed
Type :
High Voltage Rectifier Diode​
Case :
JEDEC DO-214AC molded plastic body over passivated chip
Terminals :
Solder plated, solderable per MIL-STD-750, Method 2026
Polarity :
Color band denotes cathode end
Product ID :
S2A-THRU-S2M-SMA
Weight :
0.002 ounce, 0.07 grams
Description

SURFACE MOUNT GENERAL RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 6.0 Amperes

High Voltage Rectifier Diode​ FEATURES

The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
For surface mounted applications
Low reverse leakage
Built-in strain relief,ideal for automated placement
High forward surge current capability
High temperature soldering guaranteed:
250 C/10 seconds at terminals

High Voltage Rectifier Diode​ MECHANICAL DATA

Case : JEDEC DO-214AC molded plastic body over passivated chip
Terminals : Solder plated, solderable per MIL-STD-750,
Method 2026
Polarity : Color band denotes cathode end
Mounting Position : Any
Weight :0.002 ounce, 0.07 grams

Surface Mount General High Voltage Rectifier Diode Reverse Voltage 50 To 1000 Volts

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Surface Mount General High Voltage Rectifier Diode Reverse Voltage 50 To 1000 Volts

Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas

RATINGS AND CHARACTERISTIC CURVES S3A THRU S3M

Surface Mount General High Voltage Rectifier Diode Reverse Voltage 50 To 1000 Volts

The cruve graph is for reference only, can't be the basis for judgment
