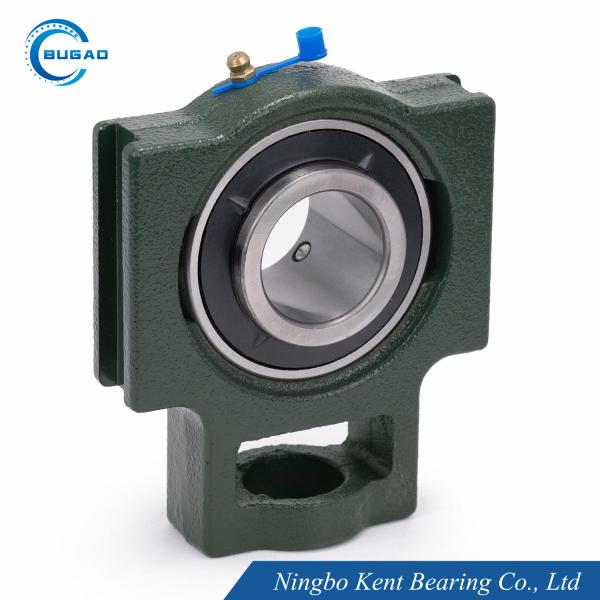

Z4V4 UCT Pillow Block Bearing Self Aligning UCT204 Bearing C2 With Housing Pillow Blocks

Specifications

Brand Name :

BUGAO

Model Number :

UCP204

Certification :

ISO9001:2015

Place of Origin :

MOQ :

Negotiatable

Price :

Negotiatable

Payment Terms :

T/T

Supply Ability :

30,000,000 sets per year

Delivery Time :

2-4 weeks

Packaging Details :

Single Packing, Industrial/Tube Packing

OEM Service :

Customization Welcomed

Block Material :

Casting iron

OEM service :

Available

Product Name :

UCT Pillow Block Bearing

Material :

Bearing Steel (GCr15), Stainless Steel, Ceramic, etc

Precision :

P0, P6, P5, P4

Clearance :

C2, C0, C3, C4

Specification :

Open, Z, ZZ, RZ, 2RZ, RS, 2RS

Noise &Vibration :

Z1V1, Z2V2, Z3V3, Z4V4

Tolerance Class :

ABEC-1, ABEC-3,ABEC-5,ABEC-7

Stock :

Rich

HS Code :

8482102000

Description

Advantages of Z4 Series Pillow Block Bearing Self Aligning UCT204 Bearings

Self-Aligning Capability:
- The Z4 series bearings are designed to compensate for shaft misalignment, which can occur due to mounting errors, shaft deflection, or housing deformation. This reduces stress on the bearing and extends its service life.
Durability:
- Made from high-quality GCr15 bearing steel, these bearings offer excellent resistance to wear, corrosion, and deformation, even under heavy loads.
Robust Housing:
- The cast iron housing provides superior strength and stability, ensuring reliable performance in demanding environments.
Low Maintenance:
- The pre-lubricated design and effective sealing reduce the need for frequent maintenance, saving time and costs.
Versatility:
- Suitable for a wide range of applications, including those with high vibration or dynamic loads.
Ease of Installation:
- The four-bolt design ensures secure and stable mounting, simplifying installation and alignment.

Dimensions of UCT204 Bearing

Parameter	Dimension (mm)
Bore Diameter (d)	20 mm
Outer Diameter (D)	47 mm
Bearing Width (B)	14 mm
Housing Dimensions (L x W x H)	104 x 80 x 46 mm
Mounting Hole Spacing (A)	70 mm
Mounting Hole Diameter (B)	11 mm
Weight	Approximately 1.0 kg

Purpose of Self-Aligning Design

Misalignment Compensation:
- Self-aligning bearings can accommodate angular misalignment of the shaft, reducing stress on the bearing and extending its service life.
Reduced Wear and Tear:
- By compensating for misalignment, these bearings minimize uneven load distribution, reducing wear and tear on both the bearing and the shaft.
Improved Performance in Harsh Conditions:
- Self-aligning bearings are ideal for applications where misalignment is common, such as in agricultural machinery, conveyor systems, and industrial fans.
Lower Maintenance Costs:
- The ability to handle misalignment reduces the need for frequent adjustments and maintenance, saving time and costs.

Z4V4 UCT Pillow Block Bearing Self Aligning UCT204 Bearing C2 With Housing Pillow Blocks

UCT Series Pillow Block Ball Bearings Parameters

Z4V4 UCT Pillow Block Bearing Self Aligning UCT204 Bearing C2 With Housing Pillow Blocks

Wide Applications of Pillow Block Bearings

Z4V4 UCT Pillow Block Bearing Self Aligning UCT204 Bearing C2 With Housing Pillow Blocks

Customization Welcomed:

We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
We can custom your packaging according to your design.
All copyright owned by clients and we promised don't disclose any information.

Packing and Shipping:

The deep groove ball bearings will be securely packaged individually, or tube packing or packed as customization packing
Shipping method is negotiable.

Other Technical Data of Bearings

Z4V4 UCT Pillow Block Bearing Self Aligning UCT204 Bearing C2 With Housing Pillow Blocks

ABEC-1 Tolerance Class ABEC-1 (P0)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
1)0.6	2.5	0	-8	10	8	6	6	10	0	-40	12
2.5	10	0	-8	10	8	6	6	10	0	-120	15
10	18	0	-8	10	8	6	6	10	0	-120	20
18	30	0	-10	13	10	8	8	13	0	-120	20
30	50	0	-12	15	12	9	9	15	0	-120	20
50	80	0	-15	19	19	11	11	20	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-8	10	8	6	10	6	15	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-8	10	8	6	10	6	15
18	30	0	-9	12	9	7	12	7	15
30	50	0	-11	14	11	8	16	8	20
50	80	0	-13	16	13	10	20	10	25
80	120	0	-15	19	19	11	26	11	35
120	150	0	-18	23	23	14	30	14	40

ABEC-3 Tolerance Class ABEC-3 (P6)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
11)0.6	2.5	0	-7	9	7	5	5	5	0	-40	12
2.5	10	0	-7	9	7	5	5	6	0	-120	15
10	18	0	-7	9	7	5	5	7	0	-120	20
18	30	0	-8	10	8	6	6	8	0	-120	20
30	50	0	-10	13	10	8	8	10	0	-120	20
50	80	0	-12	15	15	9	9	10	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-7	9	7	5	9	5	8	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-7	9	7	5	9	5	8
18	30	0	-8	10	8	6	10	6	9
30	50	0	-9	11	9	7	13	7	10
50	80	0	-11	14	11	8	16	8	13
80	120	0	-13	16	16	10	20	10	18
120	150	0	-15	19	19	11	25	11	20

ABEC-5 Tolerance Class ABEC-5 (P5)

Inner Ring									Tolerance in um/s
d mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
d mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
over	including	high	low	max		3	max	max	max	High	Low	max
1)0.6	2.5	0	-5	5	4	3	4	7	7	0	-40	5
2.5	10	0	-5	5	4	3	4	7	7	0	-40	5
10	18	0	-5	5	4	3	4	7	7	0	-80	5
18	30	0	-6	6	5	3	4	8	8	0	-120	5
30	50	0	-8	8	6	4	5	8	8	0	-120	5
50	80	0	-9	9	7	5	5	8	8	0	-150	6

Outer Ring									Tolerance in um/s
D mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
D mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
over	including	high	low	max			max	max	max	High	Low	max
1)2.5	6	0	-5	5	4	3	5	8	8			5
6	18	0	-5	5	4	3	5	8	8			5
18	30	0	-6	6	5	3	6	8	8			5
30	50	0	-7	7	5	4	7	8	8			5
50	80	0	-9	9	7	5	8	8	10			6
80	120	0	-10	10	8	5	10	9	11			8
120	150	0	-11	11	8	6	11	10	13			8

ABEC-7 Tolerance Class ABEC-7 (P4)

Inner Ring												Tolerance in um/s
d mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
d mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	Low	max
1)0.6	2.5	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
2.5	10	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
10	18	0	-4	0	-4	4	3	2	2.5	3	3	0	-80	-80	2.5
18	30	0	-5	0	-5	5	4	2.5	3	4	4	0	-120	-120	2.5
30	50	0	-6	0	-5	6	4	3	4	4	4	0	-120	-120	3
50	80	0	-7	0	-5	7	5	3.5	4	5	5	0	-150	-150	4

Outer Ring												Tolerance in um/s
D mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
D mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	max
1)2.5	6	0	-4	0	-4	4	3	2	3	4	5	Identical to ΔBs and VBs of inner ring of same bearing		2.5
6	18	0	-4	0	-4	4	3	2	3	4	5			2.5
18	30	0	-5	0	-5	5	4	2.5	4	4	5			2.5
30	50	0	-6	0	-6	6	5	3	5	4	5			2.5
50	80	0	-7	0	-7	7	5	3.5	5	4	5			3
80	120	0	-8	0	-8	8	6	4	6	5	6			4
120	150	0	-9	0	-9	9	7	5	7	5	7			5

Tolerance Data for Vibration of Single Bearing

D	V			V1			V2			V3			V4
mm	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High
3,4	80	44	44	60	35	32	48	26	22	31	16	15	28	10	10
5,6	110	72	60	74	48	40	58	36	30	35	21	18	32	11	11
7,8,9	130	96	80	92	66	54	72	48	40	44	28	24	38	12	12
10,12	160	120	100	120	80	70	90	60	50	55	35	30	45	14	15
15	210	150	120	150	100	85	110	78	60	65	46	35	52	18	18
17	210	150	120	150	100	85	110	78	60	65	46	35	52	25	25
20	260	190	150	180	125	100	130	100	75	80	60	45	60	25	25
22,25	260	190	150	180	125	100	130	100	75	80	60	45	60	30	32
28	260	190	150	180	125	100	130	100	75	80	60	45	60	35	40
30,32	300	240	190	200	150	130	150	120	100	90	75	60	70	35	40
35	300	240	190	200	150	130	150	120	100	90	75	60	70	42	45
40	360	300	260	240	180	160	180	150	130	110	90	80	82	50	50
45	360	300	260	240	180	160	180	150	130	110	90	80	82	60	60
50	420	320	320	280	200	200	210	160	160	125	100	100	95	70	70

Maximum Vibration Acceleration of Single Bearing

D	Diameter Series(0)				Diameter Series(2)					Diameter Series(3)
mm	Z	Z1	Z2	Z3	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4
3	35	34	32	28	36	35	32	30	-	37	36	33	31	-
4	35	34	32	28	36	35	32	30	-	37	36	33	31	-
5	37	36	34	30	38	37	34	32	-	39	37	35	33	-
6	37	36	34	30	38	37	34	32	-	39	37	35	33	-
7	39	38	35	31	40	38	36	34	-	-	-	-	-	-
8	39	38	35	31	40	38	36	34	-	-	-	-	-	-
9	41	40	36	32	42	40	37	35	-	-	-	-	-	-
10	43	42	38	33	44	42	39	35	30	37	44	40	37	32
12	44	43	39	34	45	43	39	35	30	47	45	40	37	32
15	45	44	40	35	46	44	41	36	31	48	46	42	38	33
17	46	44	40	35	47	45	41	36	31	49	47	42	38	33
20	47	45	41	36	48	46	42	38	33	50	48	43	39	34
22	47	45	41	36	48	46	42	38	33	50	48	43	39	34
25	48	46	42	38	49	47	43	40	36	51	49	44	41	37
28	49	47	43	39	50	48	44	41	37	52	50	45	42	38
30	49	47	43	39	50	48	44	41	37	52	50	45	42	38
32	50	48	44	40	51	49	45	42	38	53	51	46	43	39
35	51	49	45	41	52	50	46	43	39	54	52	47	44	40
40	53	51	46	42	54	52	47	44	40	56	54	49	45	41
45	55	53	48	45	56	54	49	46	43	58	56	51	47	44
50	57	54	50	47	58	55	51	48	45	60	57	53	49	46
55	59	56	52	49	60	57	53	50	47	62	59	54	51	48
60	61	58	54	51	62	59	54	51	48		61	56	53	50

Z4V4 UCT Pillow Block Bearing Self Aligning UCT204 Bearing C2 With Housing Pillow Blocks

Company brand KYODO YUSHI	Product	Base oil	Usage range	Characteristics


EXXON	Multemp SRL	Polyol ester+Diester	(-50,+150)	Excellent noise suppressantproperty and extended performance life
	Multemp PS	Diester+Refined mineral oil	(-50,+130)	Excellent low temperature performance,has outstanding noise suppressant property
	Multemp SM-B	Synthetic hydrocarbon	(-50,+200)	Long service life under high temperature,Excellent low temperature performance,has high speed operation,low noise property
	Multemp ET-K	SyntheticEther +Polyol ester	(-40≥,+200)	Has more extended life under high operating temperature condition
MOBILE	Polyrex EM	Mineral grease	(-40,+180)	Long life and high temperature
	Beacon325	Synthetic grease	(-54,+150)	General purpose grease
	Andok C	Channeling petroleum grease	(-27,+120)	Smooth running,long life with minimum migration
CHEVRON	Mobil 28(MIL-G-81322)	Synthetic hydrocarbon	(-54,+177)	Wide temperature range,good low temperature torque
CHEVRON	Mobil HP	Lithium complex	(-30,+110)	Vibration,moderate speed and good corrosion resistance
SHELL	SRI-2	Mineral grease	(-30,+180)	High temperature range,good water resistance
DUPONT	Alvania 2	Mineral grease	(-35,+120)	Long life and high temperature
DUPONT	RLQ #2	Mineral grease	(-50,+150)	Low noise,high speed and high temperature
KLUBER	ASONIC	Synthetic hydrocarbon	(-50,+140)	High temperature stability with good lubricity properties
JINZHI	HANGU 2#	Mineral grease	(-20,+120)	Low noise
JINZHI	HTHS	Mineral grease	(-40,+180)	High speed,low temperature,low torque and low noise

Z4V4 UCT Pillow Block Bearing Self Aligning UCT204 Bearing C2 With Housing Pillow Blocks

The Radial Clearance of Bearings with Electric Motor Quality

Bore			CM
Over		Including		Min	Max
mm	inch	mm	inch	um	um
10	0.3937	18	0.7087	4	11
18	0.7087	24	0.9449	5	12
24	0.9449	30	1.1811	5	12
30	1.1811	40	1.5748	9	17
40	1.5748	50	1.9685	9	17
50	1.9685	65	2.5591	12	22

Datas of the Mini-deep Groove Bearings Under No Load As Follows:										Tolerance in um
Bore				Inch R Series	C2		NORMAL		C3		C4
Over		Including			C2		NORMAL		C3		C4
mm	inch	mm	inch		min	max	min	max	min	max	min
2.5	0.0984	10	0.3937	R2-R6	0	7	2	13	8	23	14
10	0.3937	18	0.7087	R8-R10	0	9	3	18	11	25	18
18	0.7087	24	0.9449	R12-R14	0	10	5	20	13	58	20
24	0.9449	30	1.1811	R16-18	1	11	5	20	13	28	23
30	1.1811	40	1.5748	R20-R24	1	11	6	20	15	33	28
40	1.5748	50	1.9685		1	11	6	23	18	36	30
50	1.9685	65	2.5591		1	12	8	28	23	43	38

Datas of the Mini-deep Groove Bearings Under No Load As Follows:									Tolerance in um
Clearance Code	MC1		MC2		MC3		MC4		MC5
Clearance	min	max	min	max	min	max	min	max	min	max
Clearance	1	6	4	9	6	11	9	14	15	22

Send your message to this supplier

Message*

Email*

Phone or WhatsApp*

Name

Company

Please reply me within 24 hours.

Yes! I would like your verified suppliers matching service!

Send Now

Submission successful!

Z4V4 UCT Pillow Block Bearing Self Aligning UCT204 Bearing C2 With Housing Pillow Blocks

Name: Z4V4 UCT Pillow Block Bearing Self Aligning UCT204 Bearing C2 With Housing Pillow Blocks
Brand: BUGAO
Price: 1 USD

Ask Latest Price

Watch Video

Product Detail

Brand Name :

BUGAO

Model Number :

UCP204

Certification :

ISO9001:2015

Place of Origin :

MOQ :

Negotiatable

Price :

Negotiatable

Contact Supplier

video

Ningbo Kent Bearing Co., Ltd

Verified Supplier

1 Years

zhejiang, ningbo

Since 2003

Business Type :

Manufacturer

Main Products :

6000 Series Bearing, Electric Motor Bearing, UCP Pillow Block Bearing

Certification Level :

Verified Supplier

Discover similar products

video

Cast Iron T Type Bearing UCT201 UCT202 UCT203 UCT204 UCT205 UCT206 Spherical

Contact Now
video

Mounted UCT Pillow Block Bearing UCT201 UCT202 UCT203 UCT204 Insert Bearing

Contact Now
video

Self Aligning UCT202 Bearing ABEC 5 ABEC 7 Insert Ball Bearing Industrial

Contact Now
video

P0 P6 P5 P4 UCT Pillow Block Bearing Z1V1 UCT 204 Bearing

Contact Now
video

P0 Pillow Block Ball Bearing UCT202 UCT203 Ball Bearing Housing Types

Contact Now
video

Solid Cast Iron UCT 205 Bearing P5 UCT 206 Bearing Self Aligning

Contact Now

Find Similar Products By Category:

Supplier Homepage Products UCT Pillow Block Bearing

MachineU China Products Minerals & Metallurgy Alloy Steel Bearing Steel

Advantages of Z4 Series Pillow Block Bearing Self Aligning UCT204 Bearings

Dimensions of UCT204 Bearing

Purpose of Self-Aligning Design

Z4V4 UCT Pillow Block Bearing Self Aligning UCT204 Bearing C2 With Housing Pillow Blocks

Ningbo Kent Bearing Co., Ltd

Cast Iron T Type Bearing UCT201 UCT202 UCT203 UCT204 UCT205 UCT206 Spherical

Mounted UCT Pillow Block Bearing UCT201 UCT202 UCT203 UCT204 Insert Bearing

Self Aligning UCT202 Bearing ABEC 5 ABEC 7 Insert Ball Bearing Industrial

P0 P6 P5 P4 UCT Pillow Block Bearing Z1V1 UCT 204 Bearing

P0 Pillow Block Ball Bearing UCT202 UCT203 Ball Bearing Housing Types

Solid Cast Iron UCT 205 Bearing P5 UCT 206 Bearing Self Aligning

Find Similar Products By Category:
