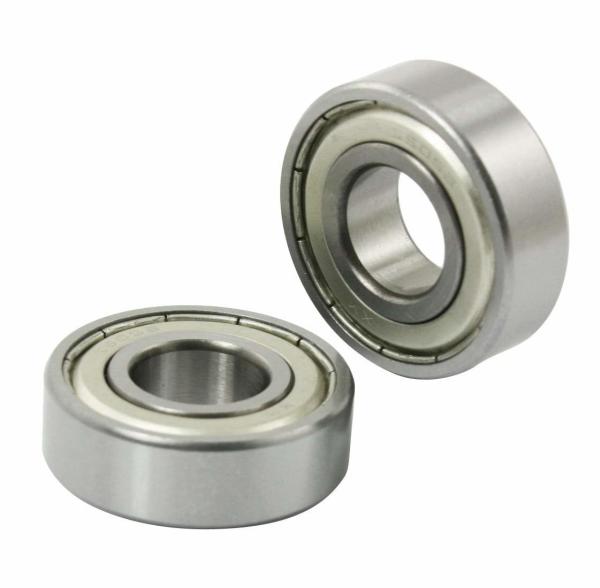

P6 Electric Motor Bearing 629 6200 6201ZZ 6202 2RS Power Tool Bearing

Specifications

Brand Name :

BUGAO

Model Number :

629, 6200, 6201ZZ, 6202 2RS

Certification :

ISO 9001:2015

Place of Origin :

Ningbo, China

MOQ :

1,000 pcs

Price :

Negotiable

Payment Terms :

T/T,Western Union,L/C

Supply Ability :

30,000,000 pcs per year

Delivery Time :

20 to 30 days

Packaging Details :

Single/Individual packing, Industrial/Tube Packing, Custom Packing

Precision of bearing :

P0, P6, P5, P4

Tolerance Class :

ABEC-1, ABEC-3, ABEC-5, ABEC-7

Seal & Sheild of bearing :

Open, Z, ZZ, RZ, 2RZ, RS, 2RS

Noise level of bearing :

Z1V1, Z2V2, Z3V3,Z4V4

Clearance of bearing :

C2, C0, C3, C4

Bearing life :

Up to 10 years

Bearing Name :

Radial Bearing Electric Hammer Bearing 6204, 6205, 6205ZZ, 6205-2RS For Power Tools

HS code :

8482102000

OEM Service :

Customization Welcomed

Bearing Material :

Chrome Steel Gcr15, Stainless Steel, Ceramic, etc

Description

Radial Bearing Electric Hammer Bearing 6204, 6205, 6205ZZ, 6205-2RS For Power Tools

Description of Power Tools Ball Bearings

The P6 Electric Motor Bearing series models such as 629, 6200, 6201ZZ, and 6202 2RS, designed for high-performance applications in electric motors and power tools. These bearings are manufactured to P6 precision grade, ensuring smooth operation, low noise, and high rotational accuracy. The series offers a variety of configurations, including open type, metal shields (ZZ), and rubber seals (2RS), to meet different environmental and operational needs. These bearings are known for their durability, high-speed capability, and reliability, making them ideal for demanding applications.

Key Features:

P6 Precision Grade: Ensures smooth and quiet operation with minimal vibration.
Multiple Configurations: Available in open type, metal shields (ZZ), and rubber seals (2RS) for different levels of protection.
High-Speed Capability: Designed for efficient operation at high rotational speeds.
Durable Construction: Made from high-quality chrome steel for excellent wear resistance.
Low Maintenance: Sealed and shielded designs reduce the need for frequent relubrication.
Versatility: Suitable for both radial and axial load applications.

Dimensions:

Model	Inner Diameter (ID)	Outer Diameter (OD)	Width (W)
629	9 mm	26 mm	8 mm
6200	10 mm	30 mm	9 mm
6201ZZ	12 mm	32 mm	10 mm
6202 2RS	15 mm	35 mm	11 mm

Advantages of P6 Electric Motor Bearing Series:

High Precision: P6 precision grade ensures minimal vibration and noise, making it ideal for precision applications.
Contamination Protection: Metal shields (ZZ) and rubber seals (2RS) provide reliable performance in harsh environments.
High-Speed Performance: Designed for smooth operation at high rotational speeds.
Durability: High-quality materials and construction provide excellent resistance to wear and tear.
Low Friction: Designed for efficient operation, reducing energy consumption and heat generation.
Compact and Lightweight: Ideal for applications with space constraints.

Applications:

Electric Motors: Used in small to medium-sized motors for appliances, tools, and industrial equipment.
Power Tools: Suitable for drills, grinders, and other handheld tools requiring high precision and durability.
Industrial Machinery: Ideal for pumps, compressors, and gearboxes requiring high precision.
Household Appliances: Used in washing machines, dryers, and other appliances where low noise and reliability are important.
Automotive: Used in alternators, fans, and small transmission systems.
Medical Equipment: Ensures precise and smooth operation in devices like centrifuges and small medical tools.

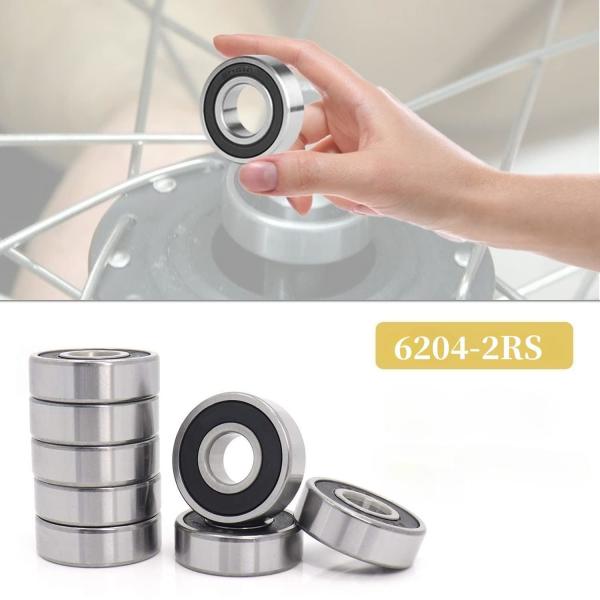

P6 Electric Motor Bearing 629 6200 6201ZZ 6202 2RS Power Tool Bearing

Technical Parameters of Power Tool Ball bearings:

6200 Series Bearings Parameters

Basic Bearing No.	Bore d		Outer Diameter D		Width W		Radius r		Basic Load Rating KN		Maximum Run out Speed		Weight kg/pc
	mm	inch	mm	inch	mm	inch	mm	inch	Dynamic	Static	Grease	Oil
									Dynamic	Static	Grease	Oil
									C	C_O	r/min	r/min
627	7	0.2756	22	0.8661	7	0.2756	0.3	0.012	3.35	1.4	26000	34000	0.013
628	8	0.3149	24	0.9448	8	0.3149	0.3	0.012	4	1.59	24000	32000	0.017
629	9	0.3543	26	1.0236	8	0.3149	0.3	0.012	4.55	1.96	22000	30000	0.02
6200	10	0.3937	30	1.1811	9	0.3543	0.6	0.024	5.1	2.39	19000	26000	0.032
6201	12	0.4724	32	1.2598	10	0.3937	0.6	0.024	6.1	2.75	18000	24000	0.037
6202	15	0.5906	35	1.3780	11	0.4331	0.6	0.024	7.75	3.6	17000	22000	0.045
6203	17	0.6693	40	1.5748	12	0.4724	0.6	0.024	9.6	4.6	16000	20000	0.066
6204	20	0.7874	47	1.8504	14	0.5512	1.0	0.039	12.8	6.65	14000	18000	0.106
6205	25	0.9843	52	2.0470	15	0.5906	1.0	0.039	14	7.85	12000	16000	0.128
6206	30	1.1811	62	2.4409	16	0.6299	1.0	0.039	19.5	11.3	10000	13000	0.199
6207	35	1.3780	72	2.8346	17	0.6693	1.1	0.043	25.7	15.3	8800	10000	0.287
6208	40	1.5748	80	3.1496	18	0.7087	1.1	0.043	29.1	17.8	7700	9200	0.367
6209	45	1.7717	85	3.3465	19	0.7480	1.1	0.043	32.5	20.4	6800	8200	0.416
6210	50	1.9685	90	3.5433	20	0.7874	1.1	0.043	35	23.2	6100	7300	0.462
6211	55	2.1654	100	3.9370	21	0.8268	1.5	0.059	43.5	29.2	5500	6600	0.602
6212	60	2.3622	110	4.3307	22	0.8661	1.5	0.059	52.5	36	5000	6000	0.789
6213	65	2.5591	120	4.7244	23	0.9055	1.5	0.059	58.5	40.5	4800	5800	0.99
6214	70	2.7559	125	4.9213	24	0.9449	1.5	0.059	63.7	45	4600	5600	1.1
6215	75	2.9528	130	5.1181	25	0.9843	1.5	0.059	68.9	49	4400	5400	1.2

Applications of Power Tool Ball Bearings:

P6 Electric Motor Bearing 629 6200 6201ZZ 6202 2RS Power Tool Bearing

Customization:

We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
We can custom your packaging according to your design.
All copyright owned by clients and we promised don't disclose any information.

Packing and Shipping:

The deep groove ball bearings will be securely packaged individually, or tube packing or packed as customization packing
Shipping method is negotiable.

P6 Electric Motor Bearing 629 6200 6201ZZ 6202 2RS Power Tool Bearing

Other Technical Data of Ball Bearings

ABEC-1 Tolerance Class ABEC-1 (P0)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
1)0.6	2.5	0	-8	10	8	6	6	10	0	-40	12
2.5	10	0	-8	10	8	6	6	10	0	-120	15
10	18	0	-8	10	8	6	6	10	0	-120	20
18	30	0	-10	13	10	8	8	13	0	-120	20
30	50	0	-12	15	12	9	9	15	0	-120	20
50	80	0	-15	19	19	11	11	20	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-8	10	8	6	10	6	15	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-8	10	8	6	10	6	15
18	30	0	-9	12	9	7	12	7	15
30	50	0	-11	14	11	8	16	8	20
50	80	0	-13	16	13	10	20	10	25
80	120	0	-15	19	19	11	26	11	35
120	150	0	-18	23	23	14	30	14	40

ABEC-3 Tolerance Class ABEC-3 (P6)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
11)0.6	2.5	0	-7	9	7	5	5	5	0	-40	12
2.5	10	0	-7	9	7	5	5	6	0	-120	15
10	18	0	-7	9	7	5	5	7	0	-120	20
18	30	0	-8	10	8	6	6	8	0	-120	20
30	50	0	-10	13	10	8	8	10	0	-120	20
50	80	0	-12	15	15	9	9	10	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-7	9	7	5	9	5	8	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-7	9	7	5	9	5	8
18	30	0	-8	10	8	6	10	6	9
30	50	0	-9	11	9	7	13	7	10
50	80	0	-11	14	11	8	16	8	13
80	120	0	-13	16	16	10	20	10	18
120	150	0	-15	19	19	11	25	11	20

ABEC-5 Tolerance Class ABEC-5 (P5)

Inner Ring									Tolerance in um/s
d mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
d mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
over	including	high	low	max		3	max	max	max	High	Low	max
1)0.6	2.5	0	-5	5	4	3	4	7	7	0	-40	5
2.5	10	0	-5	5	4	3	4	7	7	0	-40	5
10	18	0	-5	5	4	3	4	7	7	0	-80	5
18	30	0	-6	6	5	3	4	8	8	0	-120	5
30	50	0	-8	8	6	4	5	8	8	0	-120	5
50	80	0	-9	9	7	5	5	8	8	0	-150	6

Outer Ring									Tolerance in um/s
D mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
D mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
over	including	high	low	max			max	max	max	High	Low	max
1)2.5	6	0	-5	5	4	3	5	8	8			5
6	18	0	-5	5	4	3	5	8	8			5
18	30	0	-6	6	5	3	6	8	8			5
30	50	0	-7	7	5	4	7	8	8			5
50	80	0	-9	9	7	5	8	8	10			6
80	120	0	-10	10	8	5	10	9	11			8
120	150	0	-11	11	8	6	11	10	13			8

ABEC-7 Tolerance Class ABEC-7 (P4)

Inner Ring												Tolerance in um/s
d mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
d mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	Low	max
1)0.6	2.5	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
2.5	10	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
10	18	0	-4	0	-4	4	3	2	2.5	3	3	0	-80	-80	2.5
18	30	0	-5	0	-5	5	4	2.5	3	4	4	0	-120	-120	2.5
30	50	0	-6	0	-5	6	4	3	4	4	4	0	-120	-120	3
50	80	0	-7	0	-5	7	5	3.5	4	5	5	0	-150	-150	4

Outer Ring												Tolerance in um/s
D mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
D mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	max
1)2.5	6	0	-4	0	-4	4	3	2	3	4	5	Identical to ΔBs and VBs of inner ring of same bearing		2.5
6	18	0	-4	0	-4	4	3	2	3	4	5			2.5
18	30	0	-5	0	-5	5	4	2.5	4	4	5			2.5
30	50	0	-6	0	-6	6	5	3	5	4	5			2.5
50	80	0	-7	0	-7	7	5	3.5	5	4	5			3
80	120	0	-8	0	-8	8	6	4	6	5	6			4
120	150	0	-9	0	-9	9	7	5	7	5	7			5

Tolerance Data for Vibration of Single Bearing

D	V			V1			V2			V3			V4
mm	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High
3,4	80	44	44	60	35	32	48	26	22	31	16	15	28	10	10
5,6	110	72	60	74	48	40	58	36	30	35	21	18	32	11	11
7,8,9	130	96	80	92	66	54	72	48	40	44	28	24	38	12	12
10,12	160	120	100	120	80	70	90	60	50	55	35	30	45	14	15
15	210	150	120	150	100	85	110	78	60	65	46	35	52	18	18
17	210	150	120	150	100	85	110	78	60	65	46	35	52	25	25
20	260	190	150	180	125	100	130	100	75	80	60	45	60	25	25
22,25	260	190	150	180	125	100	130	100	75	80	60	45	60	30	32
28	260	190	150	180	125	100	130	100	75	80	60	45	60	35	40
30,32	300	240	190	200	150	130	150	120	100	90	75	60	70	35	40
35	300	240	190	200	150	130	150	120	100	90	75	60	70	42	45
40	360	300	260	240	180	160	180	150	130	110	90	80	82	50	50
45	360	300	260	240	180	160	180	150	130	110	90	80	82	60	60
50	420	320	320	280	200	200	210	160	160	125	100	100	95	70	70

Maximum Vibration Acceleration of Single Bearing

D	Diameter Series(0)				Diameter Series(2)					Diameter Series(3)
mm	Z	Z1	Z2	Z3	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4
3	35	34	32	28	36	35	32	30	-	37	36	33	31	-
4	35	34	32	28	36	35	32	30	-	37	36	33	31	-
5	37	36	34	30	38	37	34	32	-	39	37	35	33	-
6	37	36	34	30	38	37	34	32	-	39	37	35	33	-
7	39	38	35	31	40	38	36	34	-	-	-	-	-	-
8	39	38	35	31	40	38	36	34	-	-	-	-	-	-
9	41	40	36	32	42	40	37	35	-	-	-	-	-	-
10	43	42	38	33	44	42	39	35	30	37	44	40	37	32
12	44	43	39	34	45	43	39	35	30	47	45	40	37	32
15	45	44	40	35	46	44	41	36	31	48	46	42	38	33
17	46	44	40	35	47	45	41	36	31	49	47	42	38	33
20	47	45	41	36	48	46	42	38	33	50	48	43	39	34
22	47	45	41	36	48	46	42	38	33	50	48	43	39	34
25	48	46	42	38	49	47	43	40	36	51	49	44	41	37
28	49	47	43	39	50	48	44	41	37	52	50	45	42	38
30	49	47	43	39	50	48	44	41	37	52	50	45	42	38
32	50	48	44	40	51	49	45	42	38	53	51	46	43	39
35	51	49	45	41	52	50	46	43	39	54	52	47	44	40
40	53	51	46	42	54	52	47	44	40	56	54	49	45	41
45	55	53	48	45	56	54	49	46	43	58	56	51	47	44
50	57	54	50	47	58	55	51	48	45	60	57	53	49	46
55	59	56	52	49	60	57	53	50	47	62	59	54	51	48
60	61	58	54	51	62	59	54	51	48		61	56	53	50

Send your message to this supplier

Message*

Email*

Phone or WhatsApp*

Name

Company

Please reply me within 24 hours.

Yes! I would like your verified suppliers matching service!

Send Now

Submission successful!

P6 Electric Motor Bearing 629 6200 6201ZZ 6202 2RS Power Tool Bearing

Name: P6 Electric Motor Bearing 629 6200 6201ZZ 6202 2RS Power Tool Bearing
Brand: BUGAO
Price: 1 USD

Ask Latest Price

Product Detail

Brand Name :

BUGAO

Model Number :

629, 6200, 6201ZZ, 6202 2RS

Certification :

ISO 9001:2015

Place of Origin :

Ningbo, China

MOQ :

1,000 pcs

Price :

Negotiable

Contact Supplier

Ningbo Kent Bearing Co., Ltd

Verified Supplier

1 Years

zhejiang, ningbo

Since 2003

Business Type :

Manufacturer

Main Products :

6000 Series Bearing, Electric Motor Bearing, UCP Pillow Block Bearing

Certification Level :

Verified Supplier

Discover similar products

Single Row 6004 Ball Bearing ABEC 5 ABEC 7 6202 Ball Bearing

Contact Now
video

P0 P6 P5 P4 Electric Motor Bearing High Speed 699 2RS Bearing Miniature

Contact Now
video

ABEC 3 6002 2RS Ball Bearing P6 Rubber Sealed Bearings Single Row

Contact Now
video

Chrome Steel 686 ZZ Bearing P0 P6 P5 P4 686 2RS Bearing For Electrical Tooling

Contact Now
Mini Size Electric Motor Bearing C2 C0 C3 C4 6003 Bearing For Industrial Motors

Contact Now
High RPM 6000 ZZ Bearing Customized 6001 ZZ Bearing Z2V2 Z3V3 Z4V4

Contact Now
6202 2RS Electric Motor Bearing High Precision Stainless Steel Sealed Bearings

Contact Now
Customized 688 ZZ Bearing Chrome Steel 688 2RS Bearing C2 C0 C3 C4

Contact Now
video

Miniature Electric Tool Bearing Z3V3 Z4V4 698 Bearing High Speed

Contact Now
Low Noise Electric Motor Bearing P0 P6 Small Size Bearing For Household

Contact Now

Find Similar Products By Category:

Supplier Homepage Products Electric Motor Bearing

MachineU China Products Tools & Hardware Power Tool Accessory Other Power Tool Accessories

Key Features:

Dimensions:

Advantages of P6 Electric Motor Bearing Series:

Applications:

P6 Electric Motor Bearing 629 6200 6201ZZ 6202 2RS Power Tool Bearing

Ningbo Kent Bearing Co., Ltd

Single Row 6004 Ball Bearing ABEC 5 ABEC 7 6202 Ball Bearing

P0 P6 P5 P4 Electric Motor Bearing High Speed 699 2RS Bearing Miniature

ABEC 3 6002 2RS Ball Bearing P6 Rubber Sealed Bearings Single Row

Chrome Steel 686 ZZ Bearing P0 P6 P5 P4 686 2RS Bearing For Electrical Tooling

Mini Size Electric Motor Bearing C2 C0 C3 C4 6003 Bearing For Industrial Motors

High RPM 6000 ZZ Bearing Customized 6001 ZZ Bearing Z2V2 Z3V3 Z4V4

6202 2RS Electric Motor Bearing High Precision Stainless Steel Sealed Bearings

Customized 688 ZZ Bearing Chrome Steel 688 2RS Bearing C2 C0 C3 C4

Miniature Electric Tool Bearing Z3V3 Z4V4 698 Bearing High Speed

Low Noise Electric Motor Bearing P0 P6 Small Size Bearing For Household

Find Similar Products By Category:
