combined stator coil winding and inserting machine
combined stator coil winding and inserting machine
Specifications
Brand Name :
WEDE
Model Number :
WD-5-RK100
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
Western Union, T/T, L/C,
Supply Ability :
20pcs per month
Delivery Time :
45-70 days
Packaging Details :
ply-wooden case
Default station :
1 coils insertion station, 2 winding station and remain 2 standby staion
Description

This stator winding and inserting machine is suitable for single phase motors. The main and auxiliary winding process can be wound at the same time to improve the production efficiency. One person can operate multiple machines,and Unmanned production with robot.

The stator winding machine monitors the status of each station's materials in real time to prevent equipment failures caused by repeated materials.

Modle WD-5-RK100
Wire OD 0.18-1.2mm
Winding head 2
Coil insertion station 1
Max core height 30-120mm
Max stator OD 150mm
Max stator ID 110mm
Cycle time 40s/pc
Winding inserting mode: chained /same core
Air pressure 0.6-0.8MPa
Power supply 380V,50/60Hz,15KW
Weight about 4000kgs
Size 2000x1300x2300mm

The winding stations:

combined stator coil winding and inserting machine

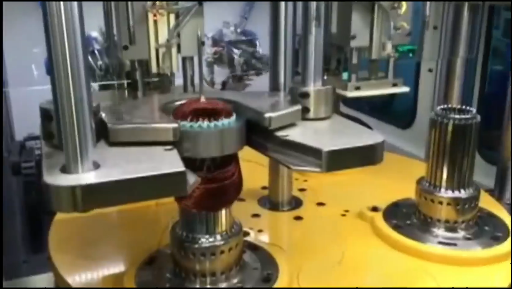

The coil insertion station:

combined stator coil winding and inserting machine
