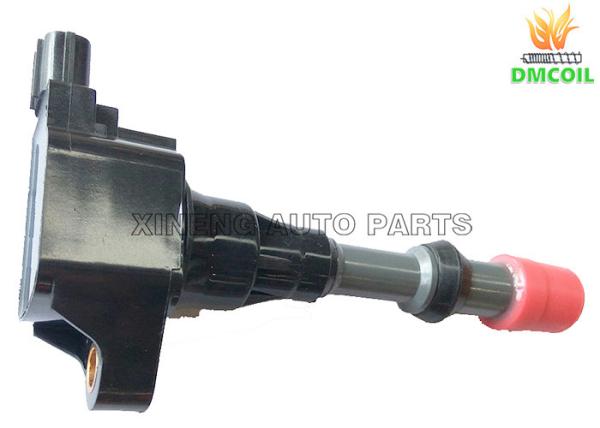

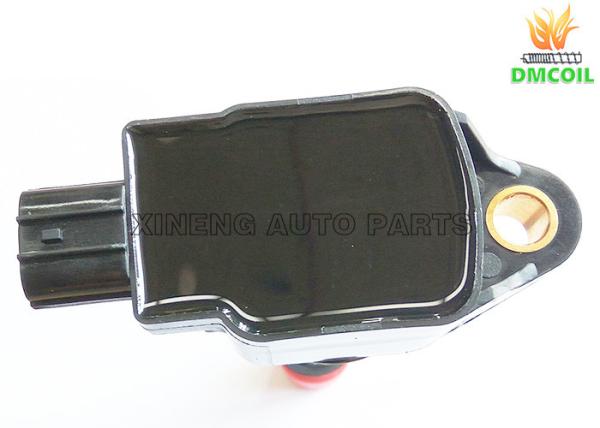

Motorcraft Ignition Coil Honda Jazz Civic City (2003-) 1.2L 1.4L 30520-PWA-003

Advantage

1, the product shell with high quality plastic raw materials PBT, with flame retardant, and epoxy resin a high degree of adhesion, high voltage resistance, can withstand -45 ° - +125 ° impact.

2, the product of the secondary skeleton using imported raw materials PPO, with a high degree of resistance to voltage, flame retardant, to withstand 200 ° high temperature.

3, copper wire with imported materials, with low resistivity, to prevent electrical breakdown of the insulating paint, and a high degree of adhesion of epoxy resin.

4, ignition module using high-quality electronic components, with anti-electromagnetic interference, high and low temperature impact. Good electrical conductivity.

5, ignition coil boots with high quality Dingqing rubber, with anti-interference, high temperature (220 ° deformation), anti-voltage.

Product Description

1 , Model No : DQG1234C

2 , OE NO / (Part number) : 30520-PWA-003 / 30520-PWA-S01 / 30521-REA-Z01 / 30521-PWA-013

3 , Test capability : Open-Current Test,OK / Thermal Shock,OK / Salt Spray Test ,OK / High Temperature Endurance(800 hours),OK.

4 , Power : Powerfull ignition energy and High voltage

5 , Inspection : 100% inspection

6 , warranty : 1 Year / 50000 km

Fit Model

FAQ (Fluently Asked Questions)

Q1. How to guarantee your after-sales service?
1, Strict inspection during production
2, Strictly check the products before shipment to ensure our packaging in good condition
3, Track and receive feedback from customer regularly

Q2. Do you test all your goods before delivery?
1, Yes, we have 100% test before delivery.

Q3. What is your terms of payment?
1, T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q4. I want to buy your products, how can I pay?

1, Through bank transfer,we'll show the account information on PI.

2, Others:We can make specifications according to customer's requirement.

Q5. How to contract us?

1, If you need more information, please contact us freely,Please sending us your inquiry to our e-mail.

2, If you have urgent things to contact me, please call my phone.

3, Of course you can also use chat software.

About Ignition Coil

An ignition coil (also called a spark coil) is an induction coil in an automobile's ignition system which transforms the battery's low voltage to the thousands of volts needed to create an electric spark in the spark plugs to ignite the fuel. Some coils have an internal resistor while others rely on a resistor wire or an external resistor to limit the current flowing into the coil from the car's 12 volt supply. The core components of ignition system is ignition coil and switch device.
Ignition coil in accordance with the magnetic type magnetic circuit is divided into open and closed magnetic type. Traditional ignition coil with magnet, with its core in silicon steel sheet pile into around 0.3 mm, core around with secondary and primary coil.Closed magnetic type, the use of the shape of Ⅲ core around the primary coil, and then around the secondary coil, the magnetic field lines composed closed magnetic circuit core.Closed magnetic type ignition coil has the advantage of low magnetic leakage, small power loss, small size, so the electronic ignition system widely used magnetic closed type ignition coil.
