Specifications
Brand Name :
HF
Model Number :
C100
Certification :
ISO/TS16949
Place of Origin :
CHONGQING,CHINA
MOQ :
500 sets
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets per day
Delivery Time :
10-20 days
Packaging Details :
Each Set of motorcycle clutch assembly with one bag and one color box, 12 box with one carton
PCS OF CLUTCH :
4 pcs
Clutch plate :
CD100
Fit for :
100CC motorcycle
Material :
New Alumnium
Material of Friction :
Rubber and Cork
Torque :
>45N.m
Description

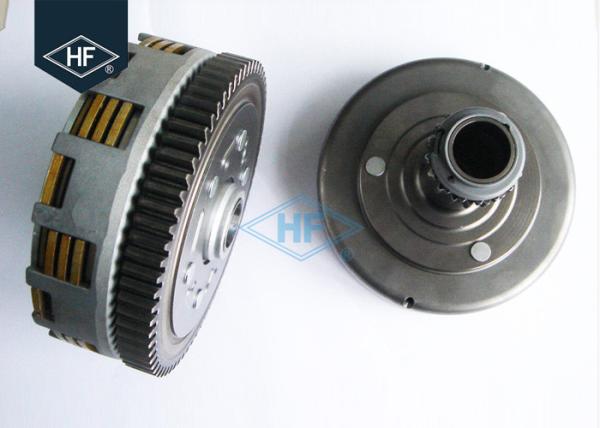

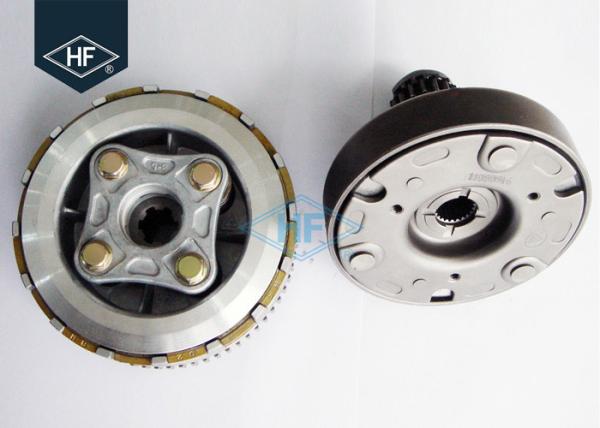

OEM clutch assembly for motorcycle T100,C100 GN5 ,XL100,XL125 automatic clutch assy.


Clutch Assembly T100 Details

Model No. C100
Clutch Type Clutch Fully assy
Max.engine output 4.8kw/7000rpm
Max.engine torque 7.0N.m/5500rpm
Number of clutch plate 4 pcs clutch plate
Number of Clutch shoe 3 pcs clutch shoe
Working way Automatic
Life 20000 KM
Displacement 100CC-150cc


This Clutch is used for C100 automatic Clutch assy replacement ,With HF brand clutch plate, Best steel plate.


Advantages of our Clutch Assembly:
All our clutch assembly use HF brand ,which the top brand in china,clutch plate with stable quality and high friction rates and durable life, The steel plate with OEM quality steel plate with excellent flatness surface, The clutch Hub and Wheel use the Rigidly Big factory Aluminium , Die casting with Automatic New machine to make sure the precises. THe screws fixed torque wrench to make sure the Clutch contact with perfect condition.Our clutch Assembly passed unique testing of it's broken pressure and life cycle testing.
1. > Durable Clutch life up to 10000 KM
2. > No noise and riding smoothly.
3. > No jumping on starting.and clutch seperation clear.
4. > Quality guaranteed.

CD110 for Honda

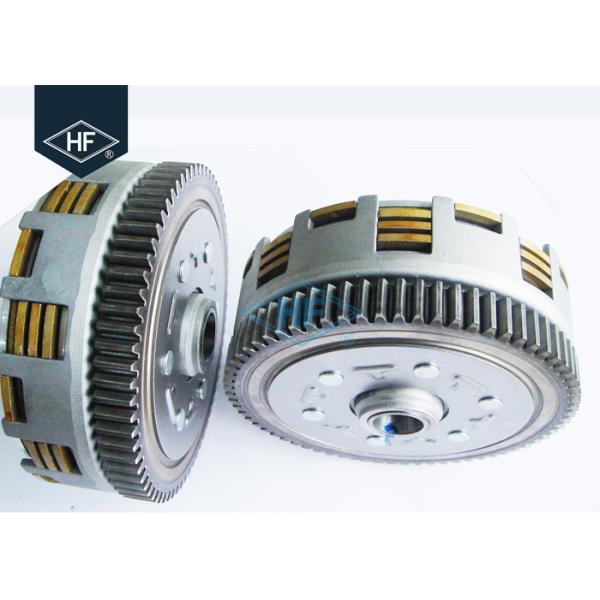

Automatic Motorcycle Clutch Assembly Harden Technology C100 GN5 / XL100 / XL125

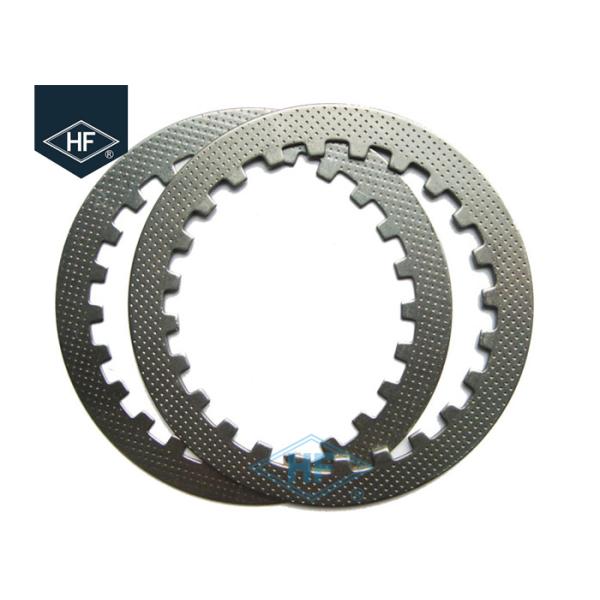

Clutch Steel Plate inside

Automatic Motorcycle Clutch Assembly Harden Technology C100 GN5 / XL100 / XL125

Selling Policy:
We are flexable for selling ,or only clutch plate, or only steel plate, or Clutch plate assy ,or only out house or the full clutch assembly according to our customer requirements.

Important Notice:
1. The clutch is wet clutch it must working in the Oil.
2. As it is professional parts, Pls replace it with professional technical.
3. Pls replace it with the same clutch style.
4. HF Brand clutch disc suggested.


OEM/ODM Service:
We Accept your own brand LOGO on the product also package.label. It is no any problem. Our OEM and ODM service always avaialble.

Packing:
Ridigly Color Box or According to Stardard Export Packing.
Carton box, wooden box, wooden pallet all acceptable


FAQ:
1. What does the clutch do on the motorcycle?
Re:Parts of a Motorcycle.It delivery the power from engine to the sprocket .

2.Which parts is the most important parts inside the clutch?
Re:The Friction plate(Clutch plate) Is the most important item inside the clutch which will affect the output torque and driving feeling , Also the cycle life is very important.

3. How to make sure your quality level?
Re: All our product has been sold more than 10 years in 40 countries now we have our solid partner to selling every month , In our production line all product been tested before packing to make sure the quality level ,In case any quality problem during transpotation we will responsible for it.

4.There are so many Modesl i am not sure which one i need?
Re: Please do not worry we have expereinced sales man to guide you which product is popular and which one is hard to sell,we will give you professional guide just contact us for more details.

5.How to place order?
Re: Please send us inquiry online ,we will get back to you by email after price discussion we shall send you invoice for payment and then we will take care of the shipping to send to your port,Any question of international business we will take care it for you.

6:.Can i visit your factory and samples?
Re: yes we welcome you to visit our factory anytime, ALso sample we offer free sample,pls contact us for more details.
