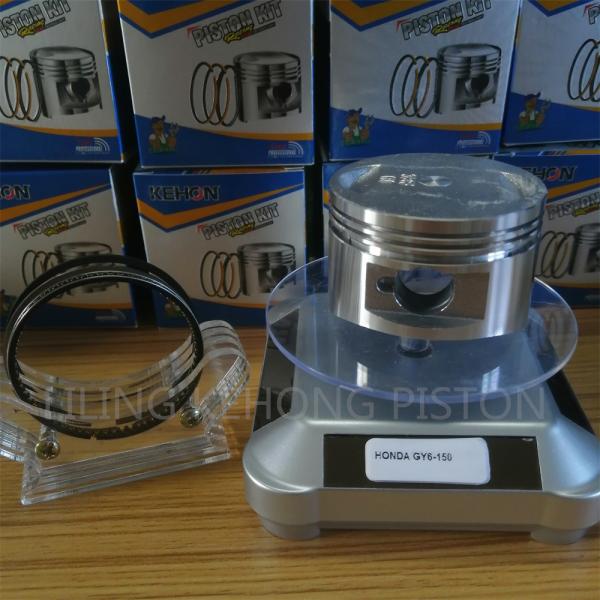

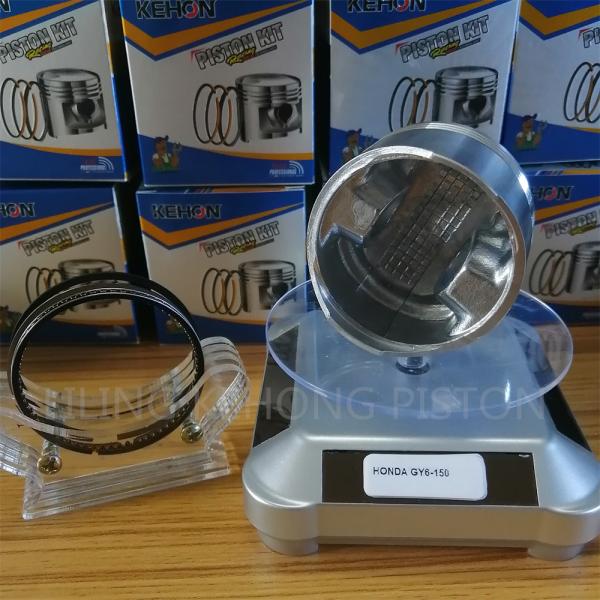

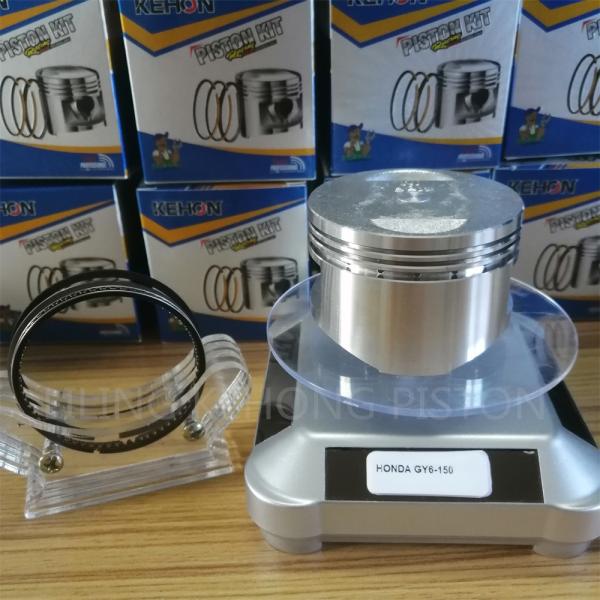

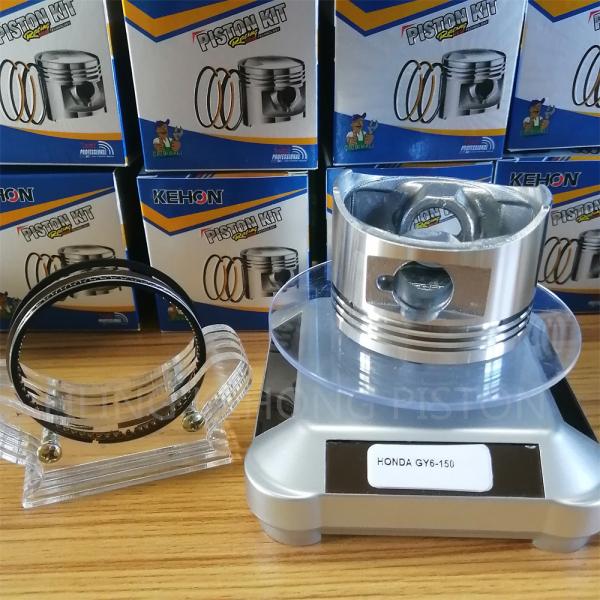

57.4mm CLY DIA GY6 Piston Kit For GY6 150 Aluminum Anti Corrosion
57.4mm CLY DIA GY6 Piston Kit For GY6 150 Aluminum Anti Corrosion
57.4mm CLY DIA GY6 Piston Kit For GY6 150 Aluminum Anti Corrosion
57.4mm CLY DIA GY6 Piston Kit For GY6 150 Aluminum Anti Corrosion
57.4mm CLY DIA GY6 Piston Kit For GY6 150 Aluminum Anti Corrosion
57.4mm CLY DIA GY6 Piston Kit For GY6 150 Aluminum Anti Corrosion
57.4mm CLY DIA GY6 Piston Kit For GY6 150 Aluminum Anti Corrosion
57.4mm CLY DIA GY6 Piston Kit For GY6 150 Aluminum Anti Corrosion
Specifications
Model Number :
GY6-150
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
D/P
Delivery Time :
30 work days
Packaging Details :
1,000,000 sets per month
Price :
Negotiable
Type :
Motor Engine Parts
Material :
Aluminum
Packing :
Lidon package
Quality :
A class
Color :
Silver
CYL DIA :
57.4mm
Pin Size :
15*42mm
Weight :
95g
Description



57.4mm CLY DIA GY6 Piston Kit Diesel Motor Engine Parts GY6-150


Specification

Brand Name
LIDON
Place of Origin
Guangzhou, China
Product nameMotorcycle GY6-150 Piston Kit
QualityA class
MaterialAluminum Alloy
ColorAs picture show
ApplicationMotorcycle Engine System
weight
95g
PackingBoxes+ Carton
CYL DIA57mm
Pin Size15*42mm
ShipmentSea, Air, Express



Description

Piston kits are included piston, piston pin and piston rings.
The piston diameter: 57.4mm
The piston pin diameter: 15mm
The length of piston pin: 42mm
Made of high-quality materials, more durable and wear-resistant
It has good thermal conductivity, high temperature resistance, high pressure, corrosion, sufficient heat dissipation capacity, and small heating area
Excellent quality, fast delivery, simple after-sales. We make every effort to provide customers with satisfactory service


Product Features

The functions of piston are :
Piston is the reciprocating part of the engine. It can be divided into top, head and skirt. The top of the piston is the main part of the combustion chamber, and its shape is related to the selected combustion chamber form. Gasoline engines mostly use flat-top pistons, which has the advantage of small heat absorption area. But for diesel engine, there are always various pits on the top piston, and their specific shape, position and size must be adapted to the requirements of diesel engine mixture formation and combustion.
Advantage :
High performance piston, extended life and sustained power, CNC machined fully-polished finish looks great and available in a best reasonable price.


Product Model

ITEM NO.

MODEL

Piston Ring Diameter(MM)

1

HONDA JH70

47*1.0*1.0*2.0

2

HONDA CD70

47*1.0*1.0*2.0

3

HONDA CG125/VS125

56.5*1.2*1.2*2.5

4

HONDA CG150/KG9

62*1.2*1.2*2.5

5

HONDA CC200/KBB

63.5*1.0*1.0*2.5

6

HONDA CG200-A

63.5*1.0*1.0*2.5

7

HONDA CG250

67*1.2*1.2*2.5

8

HONDA JD100/GN5/WIN100/C100/CD100

50*1.0*1.0*2.0

9

HONDA C110/CD110/HD110

52.4*1.0*1.0*2.0

10

HONDA HT110

52.4*1.0*1.0*2.0













57.4mm CLY DIA GY6 Piston Kit For GY6 150 Aluminum Anti Corrosion57.4mm CLY DIA GY6 Piston Kit For GY6 150 Aluminum Anti Corrosion57.4mm CLY DIA GY6 Piston Kit For GY6 150 Aluminum Anti Corrosion57.4mm CLY DIA GY6 Piston Kit For GY6 150 Aluminum Anti Corrosion
