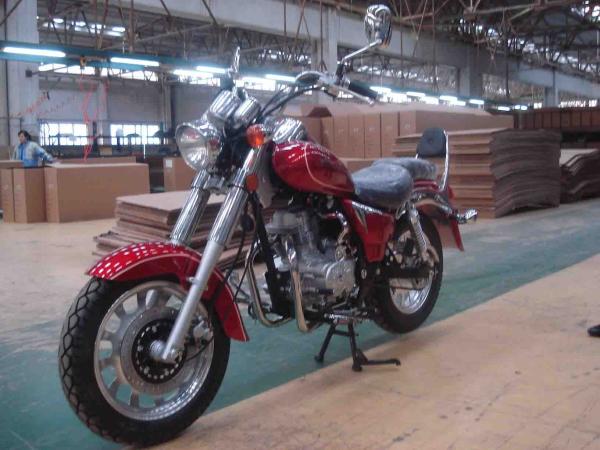

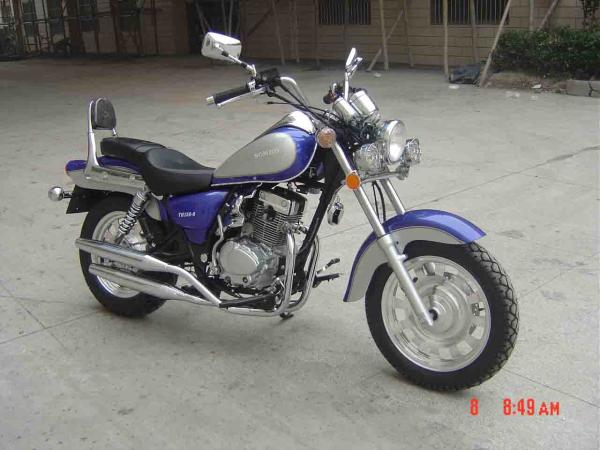

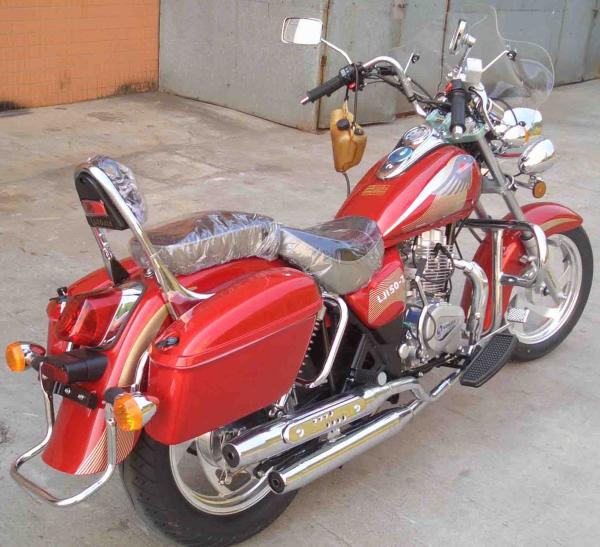

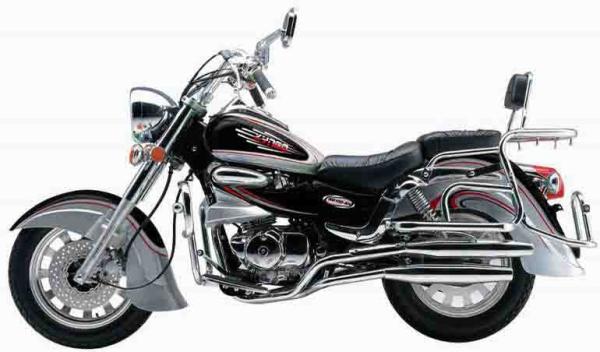

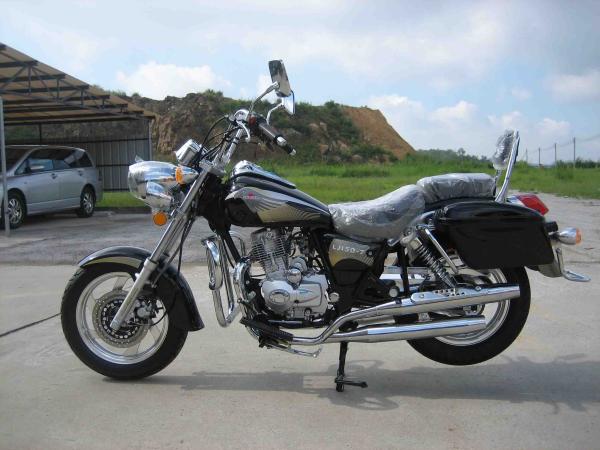

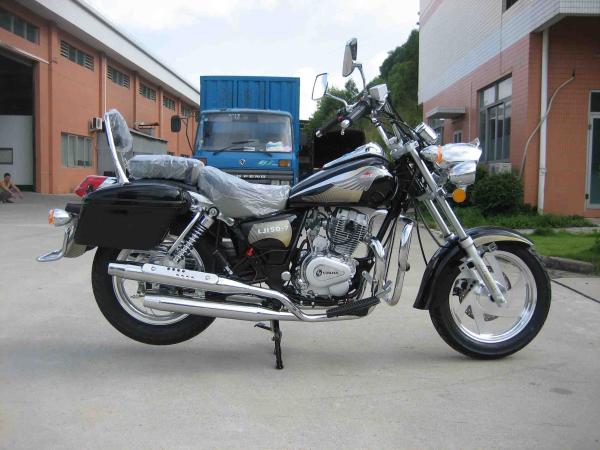

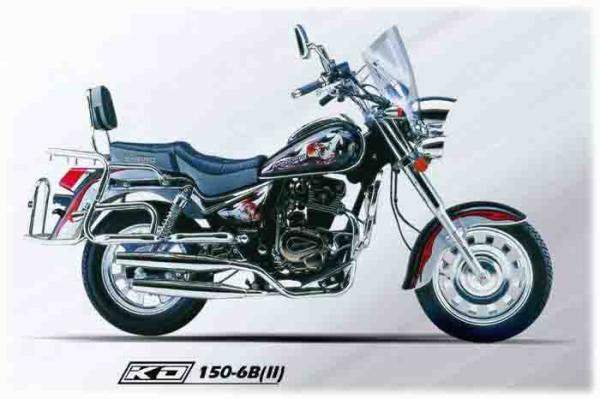

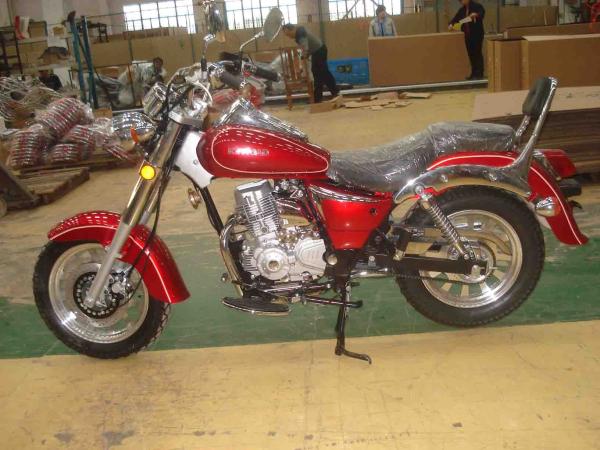

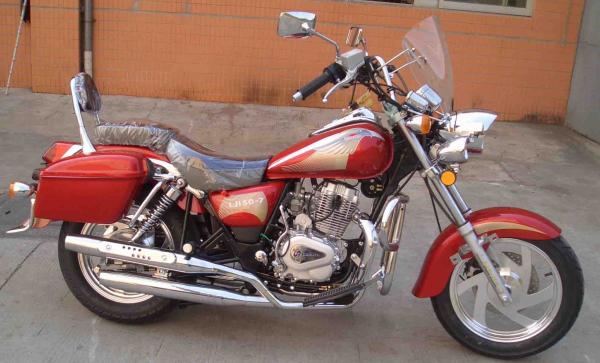

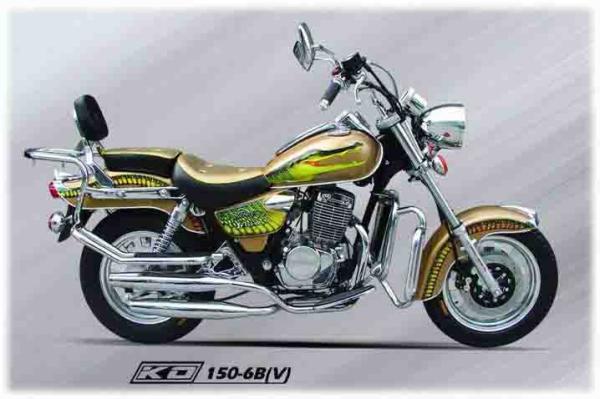

Harley-Davidson250CC Motorcycle motorbike motor CDI 300CC motorcycle

Specifications

Place of Origin :

Wuxi Jiangsu China

Brand Name :

LONGSONG

Certification :

CE ECE

Model Number :

LS250

MOQ :

50PCS

Price :

can be negotiated

Packaging Details :

Iron box carton

Delivery Time :

Payment Terms :

100% T/T,30% first deposit,70% balance before the delivery

Supply Ability :

10000/PCS

Description

Description:

Engine model L: C163FML

Engine type : Vertical,Single,double bank,4-stroke,wind-cooled

Cylinder displacement(ml): 193.3

Bore*Stroke :63.0×62.0

Maximum PowerKw/(r/min): 11.0 /7500

Maximum TorqueN·m/(r/min): 14.0/6000

Minimum fuel consumption(g/kW·h) : ≤354

Compression ratio : 9.0:1

Start type : Electrical

Transmission type : Chain

Brake type(F/R): Disc/Disc

Brake distance(m/20km): ≤7.00

Gear-Shifting type : 5-range constant mesh gear

Clutch type: manual,wet-type,multidisc clutch

L×W×H(mm): 2100×790×1160

Minimum turning radius (mm): 1900

Maximum gradability(°): ≥30°

Seat cushion (mm): 820

Min.Ground Clearance(mm): 200

Max.speed(kw/h) : ≥100

Tyre(F/R): 110/70-17/140/70-17(TubeLess)

Body kits materials: ABS

Colour: Red,Black,Blue

Packing size(mm) :1970×590×1400

N.W.(kg) :150

G.W.(kg) :170

Fuel tank Maximum capacity(L): 16

Primary transmission ratio :4.055

Final transmission ratio: 2.833

First gear: 2.769

Second gear: 1.882

Third gear: 1.4

Fourth gear: 1.13

Fifth gear: 0.96

Warranty Period: 6000KM /12 Months
