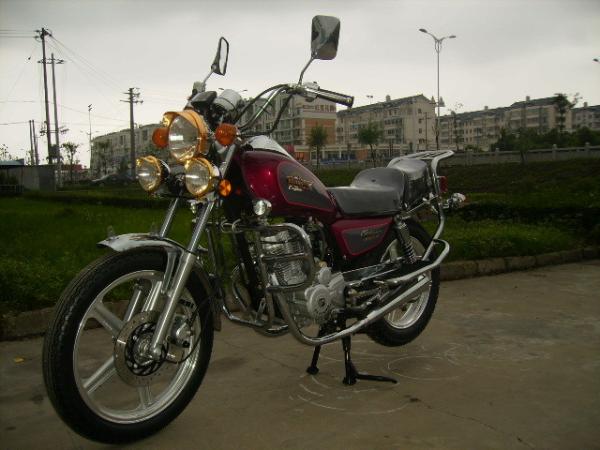

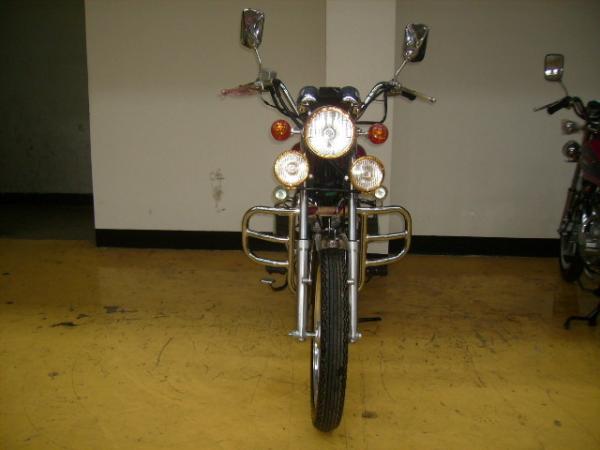

Honda CM125motor Motorcycle motorbike motor ATC 150KG Two Wheeled Motorcycle With Single C
Honda CM125motor Motorcycle motorbike motor ATC 150KG Two Wheeled Motorcycle With Single C
Honda CM125motor Motorcycle motorbike motor ATC 150KG Two Wheeled Motorcycle With Single C
Honda CM125motor Motorcycle motorbike motor ATC 150KG Two Wheeled Motorcycle With Single C
Honda CM125motor Motorcycle motorbike motor ATC 150KG Two Wheeled Motorcycle With Single C
Honda CM125motor Motorcycle motorbike motor ATC 150KG Two Wheeled Motorcycle With Single C
Honda CM125motor Motorcycle motorbike motor ATC 150KG Two Wheeled Motorcycle With Single C
Honda CM125motor Motorcycle motorbike motor ATC 150KG Two Wheeled Motorcycle With Single C
Honda CM125motor Motorcycle motorbike motor ATC 150KG Two Wheeled Motorcycle With Single C
Honda CM125motor Motorcycle motorbike motor ATC 150KG Two Wheeled Motorcycle With Single C
Honda CM125motor Motorcycle motorbike motor ATC 150KG Two Wheeled Motorcycle With Single C
Honda CM125motor Motorcycle motorbike motor ATC 150KG Two Wheeled Motorcycle With Single C
Honda CM125motor Motorcycle motorbike motor ATC 150KG Two Wheeled Motorcycle With Single C
Honda CM125motor Motorcycle motorbike motor ATC 150KG Two Wheeled Motorcycle With Single C
Honda CM125motor Motorcycle motorbike motor ATC 150KG Two Wheeled Motorcycle With Single C
Honda CM125motor Motorcycle motorbike motor ATC 150KG Two Wheeled Motorcycle With Single C
Specifications
Place of Origin :
Wuxi Jiangsu China
Brand Name :
LONGSONG
Certification :
CE ECE
Model Number :
CM125
Max. Speed :
> 80km/h
Brake(F/R) :
FRONT DISK / REAR DRUM
MOQ :
50PCS
Price :
can be negotiated
Packaging Details :
Iron box carton
Delivery Time :
15
Payment Terms :
100% T/T,30% first deposit,70% balance before the delivery
Supply Ability :
10000/PCS
Description

Specifications:

Overall size(LWH)(mm):2045*900*1095

Axile depth (mm):1340

Min.rode clearance (mm):130

Min.diameter of turning circle (mm):4000

Whole motorcycle weight(kg):124

Max.loading (kg):150

Max.weight:274

Start Performance (s):≤15

Max.speed (km/h):85

Max.climbing ability :≥16

Accelerating Performance

start acceleration (s)

≤16

overruning acceleration (s)

≤15

Min.steady speed:km/h:22

Coast-down Distance (40km/h): ≥200m

Tyre size and pressure

FR

3.00-18 ≤250

RR

3.50-16 ≤275

Brake tyre and Operation

FR

disc/hand

RR

drum/foot

Headlight Specification:W/V:35/12

Winker specification:W/V:10/12

Brake lamp W/V:21/12

Reliability (km):6000

Durability (km):16000

Cylinder diamter X Stroke

56.5 X 49.5

Cylinder volume

124.5

Compression ratio

9:1

Rated power and relevant speed

6.8/8000

Max.power and re

levant speed

7.2/8500

Max.Distortion distance

8.3/7500

Min.no-load steady speed

1500±150

Min.Fuel consumption rate

≤367

Gasoline brands

RQ90

Start method

electric start/kick start

Ignition method

CDI

Clutch type

Wet multi-disk

Transmission

5-speed recycling

Transmission Speed ratio

primary transmission ratio

4.055

Last transmission ratio

2.8

All levels transmission ratio

first stage

secend stage

third stage

forth stage

fifth stage

2.769

1.882

1.400

1.130

0.960
